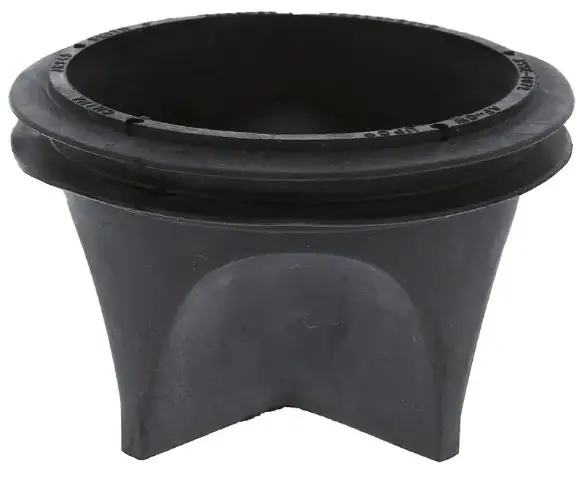

JONES STEPHENS P26004 Floor Drain Trap Seal
FLOOR DRAIN TRAP SEAL
- Minimizes evaporation within the trap
- Prevents sewer gases from escaping into the room and helps to mitigate backflow
- Seal opens to allow the flow of drainage and closes when there is no flow
- Great solution for infrequently used floor drains
- Can be used in new construction or retrofit applications
- Quick and simple installation – no special tools needed
- Durable EPDM construction
- Meets ASSE1072-2007
- UPC approved

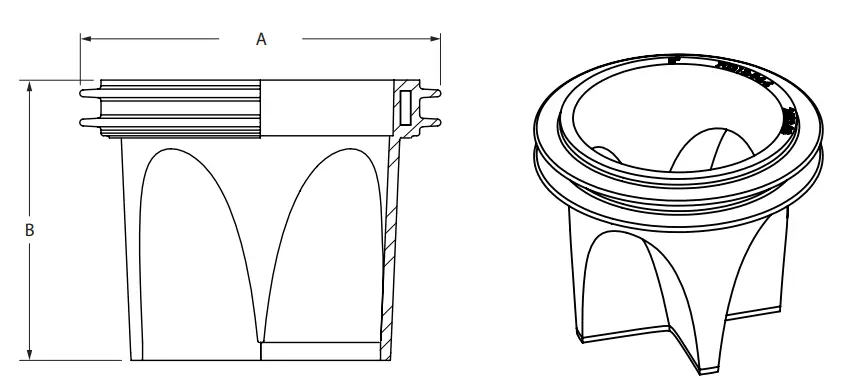

DIMENSIONS
| Part No. | Size | Flow Rate | Weight | A (Dia.) | B (Height) |
| P26001 | 2” TRAP SEAL | 12 GPM | 1.30 oz | 2.22” | 2.66” |
| P26002 | 3” TRAP SEAL | 34 GPM | 2.90 oz | 3.22” | 2.66” |
| P26003 | 3.5” TRAP SEAL | 51 GPM | 3.40 oz | 3.79” | 2.66” |
| P26004 | 4” TRAP SEAL | 73 GPM | 3.70 oz | 4.22” | 2.66” |
3249 Moody Parkway | Moody, AL 35004 | 800.355.6637 | Fax 800.462.6991| www.jonesstephens.com
Jones Stephens
