McALPINE BK2 Centre PIN 60mm Basin Waste and 1 1/4 Inch P TRAP
INSTALLATION

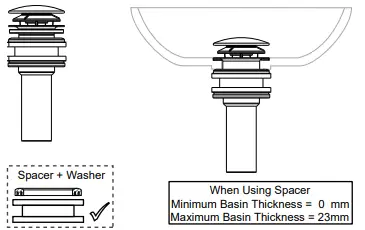

WITHOUT OVERFLOW
- Place the Waste (3) with the white Washer (4) or apply sealant into the waste hole in the WHB.
- Drop the Ferrule (2) through the centre of the Waste (3).
- Assemble the black washer (7) to the flange on the stalk (8), add the spacer (6) and then the silicon Washer (5).
- Position items 5,6,7,8 on the underside of the WHB at the waste outlet hole, and tighten (**No more than hand tight + 1/4 turn) the Ferrule (2) clockwise until the waste assembly is fixed to the WHB.
- Finally, assemble the spring-loaded plug assembly (1) by pushing the stem of the plug into the centre-pin ferrule (2).
for P-Trap
- Remove Inlet Nut (9) and Blue seal (10) from the trap body and assemble onto the waste assembly outlet stalk (8).
- Assemble the Trap Body (10) onto the outlet stalk (8) push the seal (10) into the trap body then tighten the Inlet Nut (9) **No more than hand tight + 1/4 turn.
- Assemble the Outlet Nut (13), Backup Washer (12) and Outlet seal (11) onto the outlet pipe and push into the outlet of the Trap Body (10). Push the Outlet Seal (11) and Backup Washer (12) forward into the trap body outlet, then tighten outlet nut (13). **No more than hand tight + 1/4 turn.
Complete Installation
- Important – Run water through completed installation, Inspect all joints for leaks.

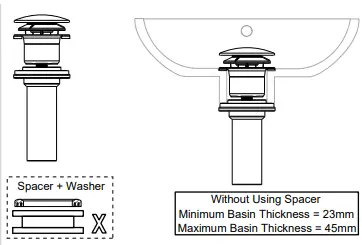

WITH OVERFLOW
- Place the Waste (3) with the white Washer (4) or apply sealant into the waste hole in the WHB.
- Drop the Ferrule (2) through the centre of the Waste (3).
- Assemble the black washer (7) to the flange on the stalk (8)
- Position items 7 and 8 on the underside of the WHB at the waste outlet hole, and tighten (**No more than hand tight + 1/4 turn) the Ferrule (2) clockwise until the waste assembly is fixed to the WHB.
- Finally, assemble the spring loaded plug assembly (1) by pushing the stem of the plug into the centre-pin ferrule (2).

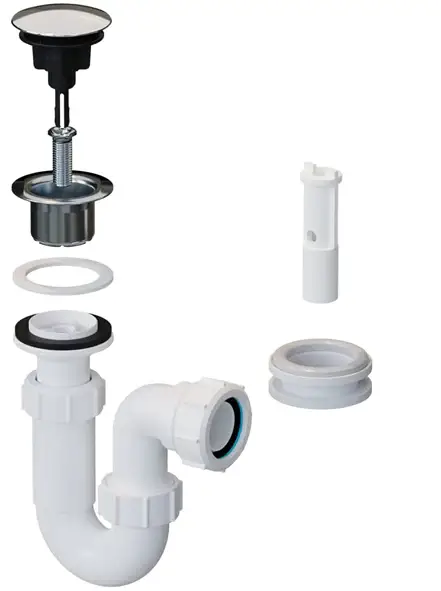

Components

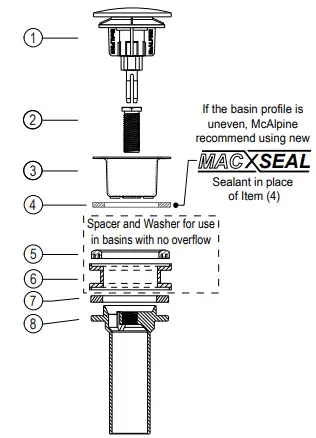

Waste & Plug assembly

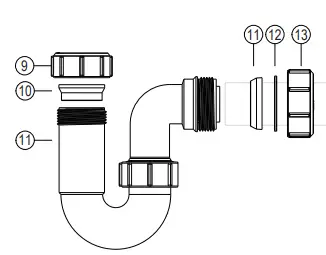

P-Trap assembly

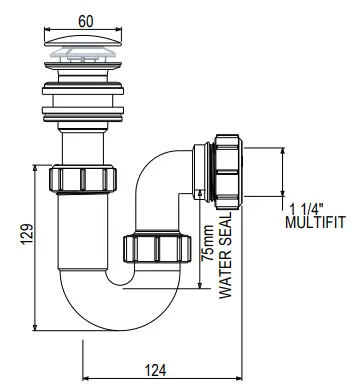

DIMENSION
