vieser DN50 1×32 One Floor Drain
Product Information

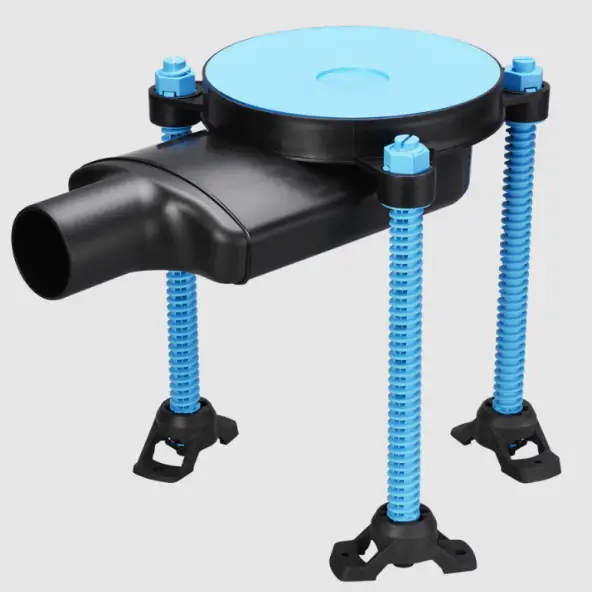

The Vieser One Floor Drain is designed to efficiently drain water from your bathroom or kitchen floor. It has a DN50 size and 1×32 extra low installation.
Product Usage Instructions
- Before installing the floor drain, make sure to follow the instructions of the waterproofing manufacturer. For vinyl floor or membrane, use the recommended waterproofing material.
- Place the Vieser One Floor Drain in the desired location on the floor.
- Press down the white supporting ring right to the bottom until you hear a click.
- Connect PVC pipes or other relevant plumbing to the floor drain as necessary.
- Test the drain by pouring water into it and making sure it drains efficiently.
Installation instructions

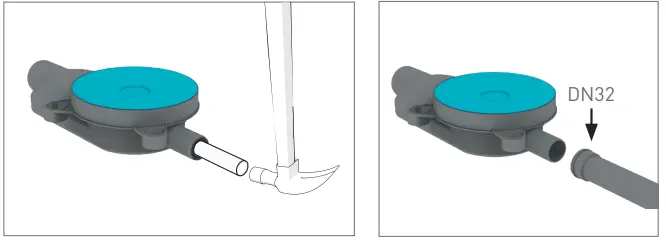

- Opening the side inlet

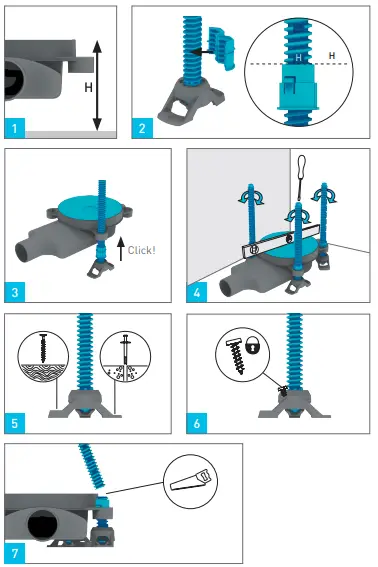

- Concrete floor : Adjust the height of the floor drain’s legs. Install the upper surface of the nut to match the height of the concrete surface.

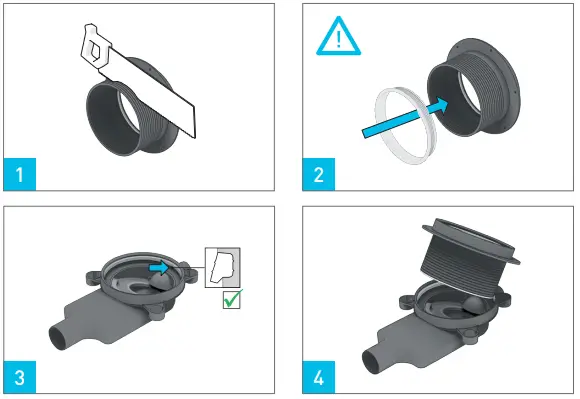

- Applying an extension ring

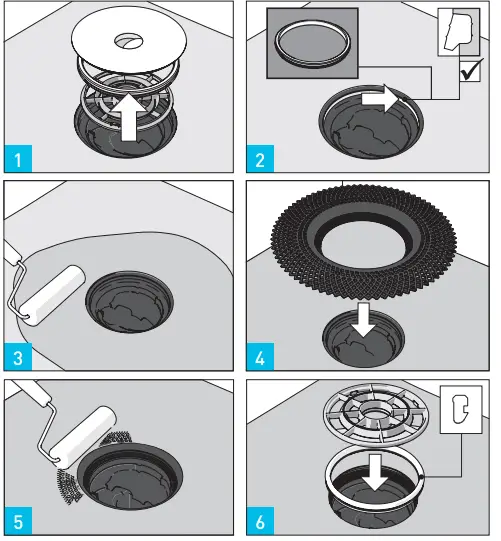

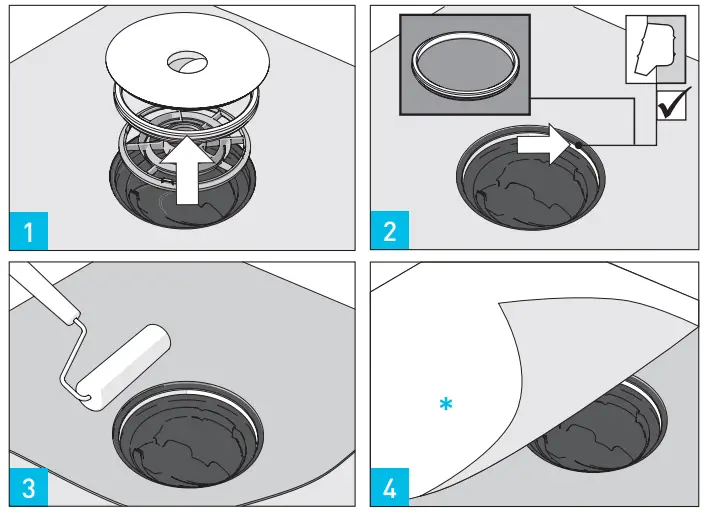

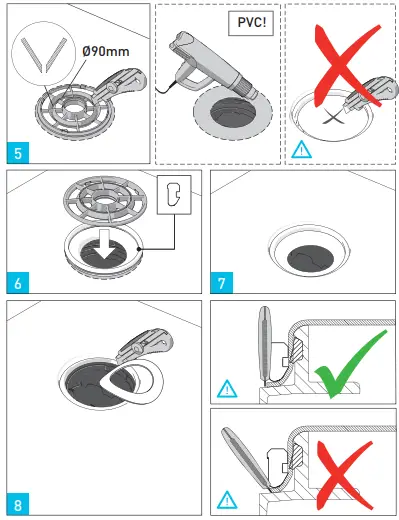

Warning: Press down the white supporting ring right to the bottom - Vinyl floor / waterproofing
Warning: Follow the instructions of the waterproofing manufacturer
Warning: Press down the white supporting ring right to the bottom
Warning: Follow the instructions of the waterproofing manufacturer
