Alca Plast Arz1 Corner Shower Drain Instruction Manual

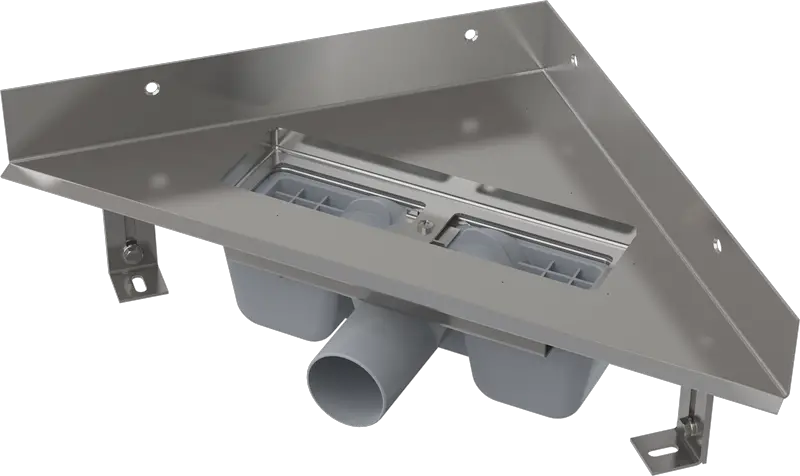

ALCA PLAST ARZ1 Corner Shower Drain

Linear shower drain

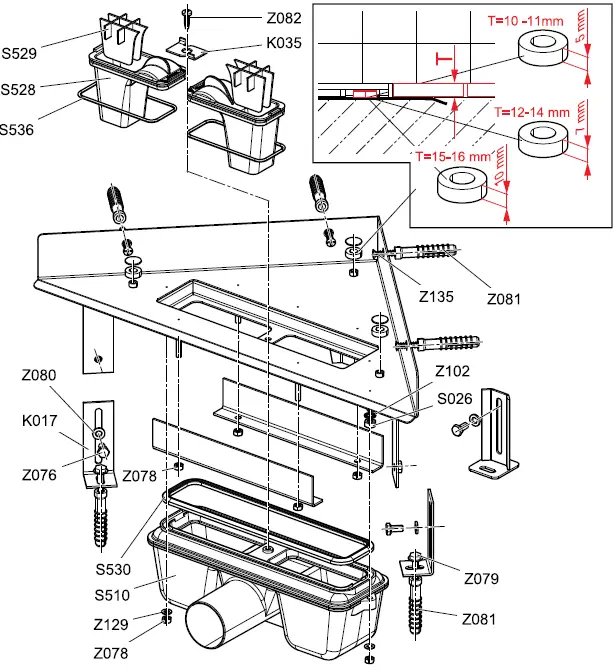

Spare parts

Is not included in the package and should be bought separately.

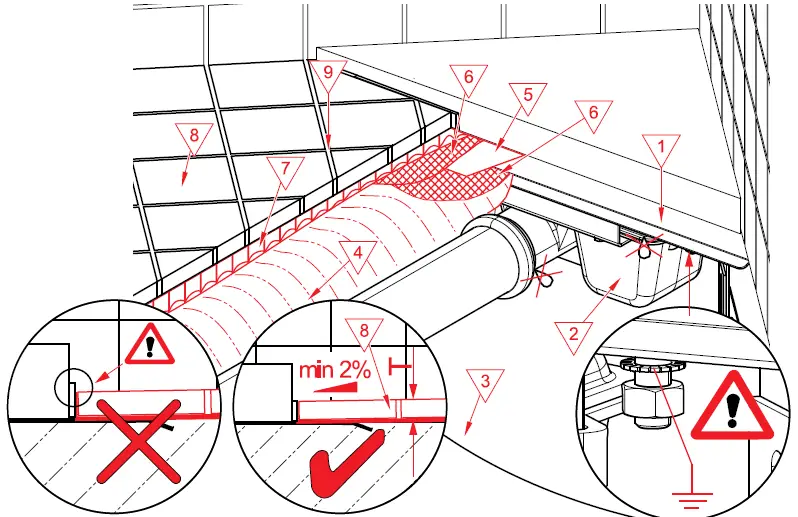

1. DREINS
2. SIPHONS
3. FLOORING CONCRETE

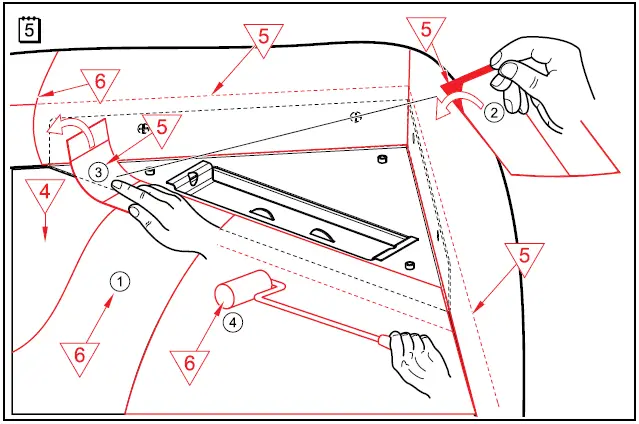

4. HYDROISOLATION WRAPPER/BANDA
5. HYDROISOLATION SUBSTANCE
6. GLUE
7. PAVING
8. FLEXIBLE FILLER

Before concreting it’s necessary carry out test tightness
Drains must be line up on earth connection

Producer:

• Tel.: +420 519 361 641 -export, Fax: +420 519 330 621
• e-mail: [email protected] , www.alcaplast.cz
