A508KM/A509KM-Bath Drain Overflow
Instruction Manual
A509KM Bath Drain Overflow
Bath filler, with click/clack, overflow, trap, chrome

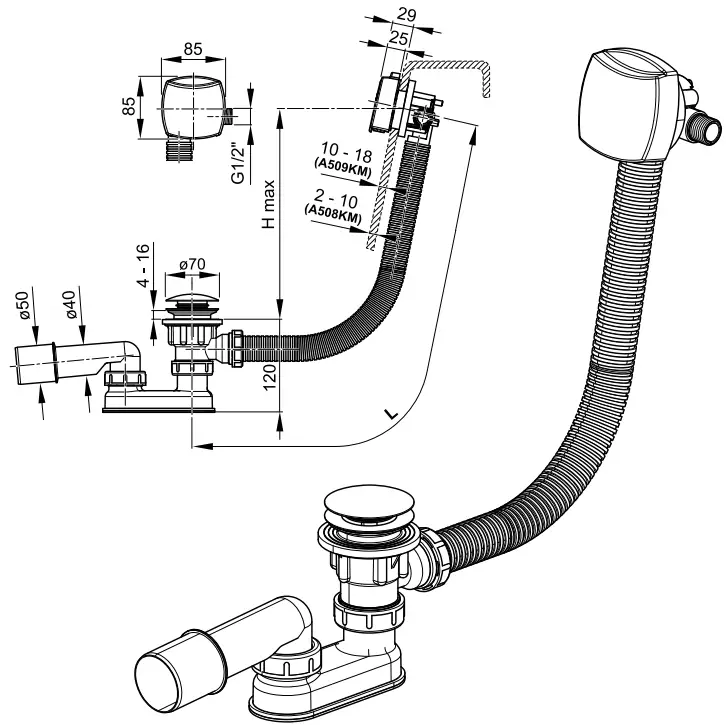

| H max | L | |
| A508-9KM | 370 | 570 |
| A508-9KM – 80 | 600 | 800 |
| A508-9KM – 100 | 800 | 1 000 |
| A508-9KM – 120 | 1 000 | 1 200 |

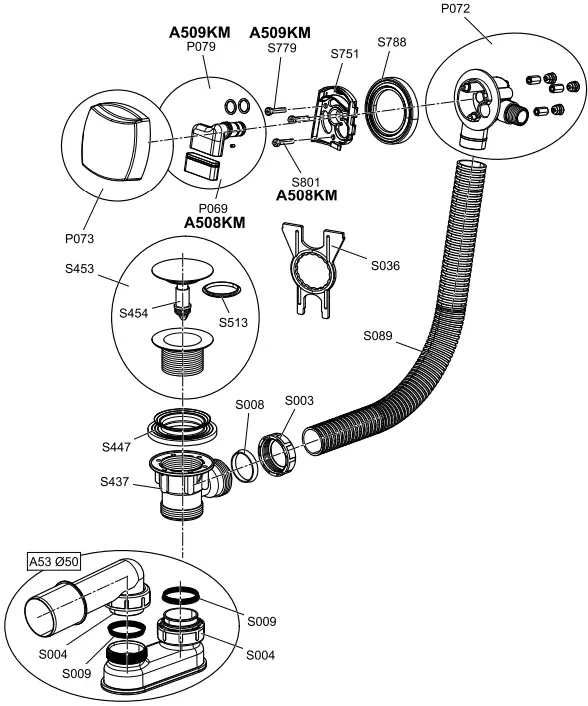

Spare parts:
 |  |
Producer:
Alcaplast, s. r. o.,
Bratislavsk~ 2846, 690 02 Breclav,
Cesk republika
Tel.: +420 519 326 499, +420 519 323 456 — prodej CR
Tel.: +420 519 361 641 — export,
Fax: +420 519 330 621
e-mail: [email protected]
www.alcaplast.cz
R0/01 / 13
