All Pro®
60″ bath w/ right-hand drain
61041120

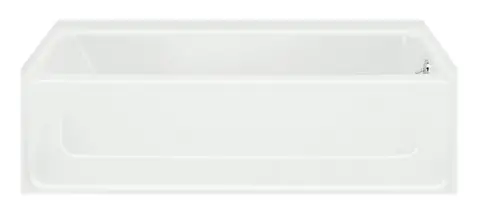

61041120 All Pro 60 Inch Bath Right-Hand Drain
ADA
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
ADA
ICC/ANSI A117.1
HUD, UM Bulletin 73
Warranty ± Bathing Fixtures (and) Kitchen and Utility Sinks are Made of Solid Vikrell® Material
See the website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
| Color | Code | Description |
 | 0 | White |
 | 96 | KOHLER Biscuit |
Features
- · 15″ (381 mm) apron.
Material
- Made from solid Vikrell® material for strength, durability, and lasting beauty.
Installation
- Alcove.
- Right drain.
Recommended Products/Accessories
K-23726 Drain treatment
K-23733 Vikrell® cleaner
Technical Information
All product dimensions are nominal.
| Installation: | Three-wall alcove |
| Drain location: | Right |
| Basin area, bottom: | 48″ x 21″ (1219 mm x 533 mm) |
| Basin area, top: | 55″ x 23″ (1397 mm x 584 mm) |
| Weight: | 51.835 lbs (23.5 kg) |
| Water depth: | 9-3/8″ (238 mm) |
| Water capacity: | 44 gal (166.6 L) |
| Minimum flat for door: | 2-1/4″ (57 mm) |
| Maximum door height: | 57″ (1448 mm) |
| Maximum door width: | 57-1/2″ (1461 mm) |
Notes

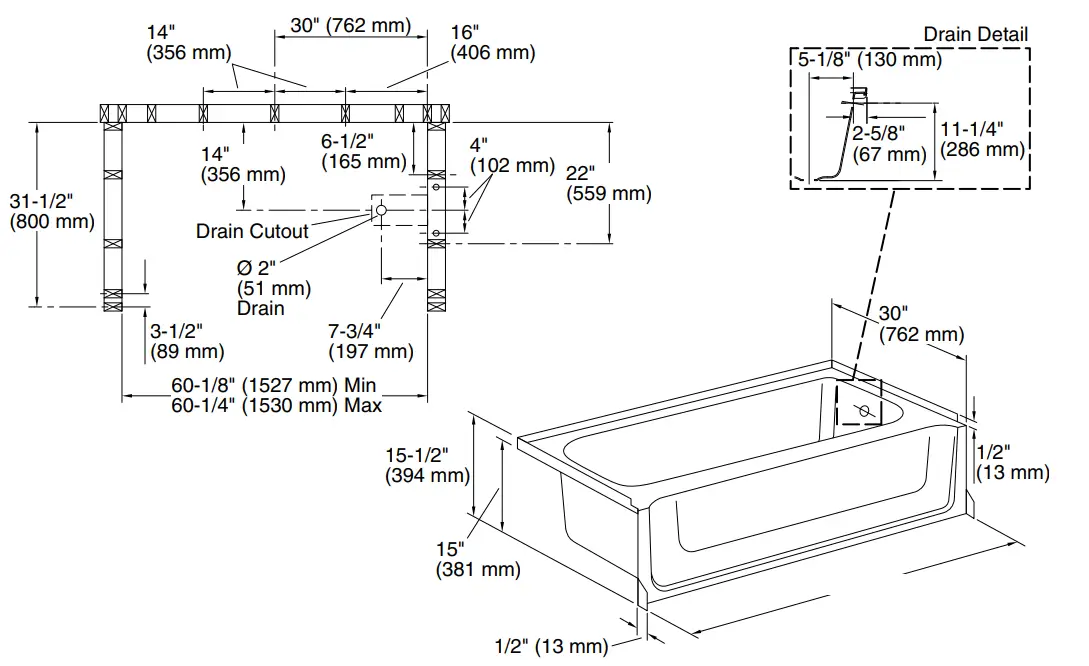

Install this product according to the installation instructions. Studs should be positioned roughly as shown.
Double studying is recommended for pivot shower door installations.
ADA-compliant when installed to the specific requirements of these regulations.
1-800-STERLING (1-800-783-7546)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.sterlingplumbing.com.
5-29-2021 20:20 – US/CA
