Traverse® 30″ bath/shower
71570110
71570110 30 Inch Traverse Bath Shower
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
HUD, UM Bulletin 73
Warranty ± Bathing Fixtures (and) Kitchen and Utility Sinks Made of Solid Vikrell® Material See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
| Color | Code | Description |
 | 0 | White |
 | 96 | KOHLER Biscuit |
Features
- The tongue-and-groove modular design allows for easy installation during any phase of construction.
- Modern subway tile design.
- The full-length shelf provides generous storage.
- Easy-to-clean, durable high-gloss finish.
Material
- Compression-molded from our exclusive solid Vikrell® material.
Installation
- Pro4™ installation system features a two-piece back wall design, enabling one-person handling and installation.
- Alcove.
- Caulk-free installation.
- Left drain.
Recommended Products/Accessories
K-23726 Drain treatment
K-23733 Vikrell® cleaner
Included Components
Product consists of:
71171110 60-1/4″ x 30″ bath
71574100 60″ x 30″ bath wall set
Technical Information
All product dimensions are nominal.
Installation: Three-wall alcove
Notes
Install this product according to the installation instructions.

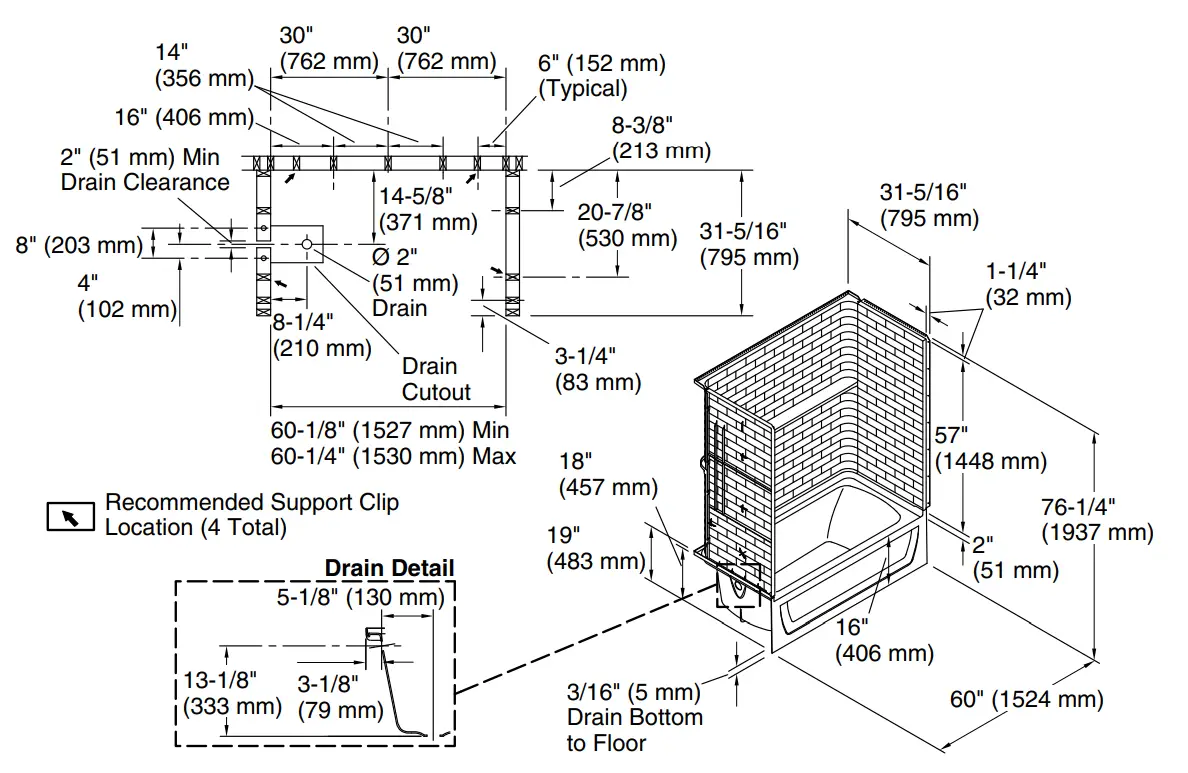

Studs should be positioned roughly as shown. Double studying is recommended for pivot shower door installations.
Attach grab bars at the specified backer board locations only.
1-800-STERLING (1-800-783-7546)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.sterlingplumbing.com.
5-29-2021 21:28 – US/CA
