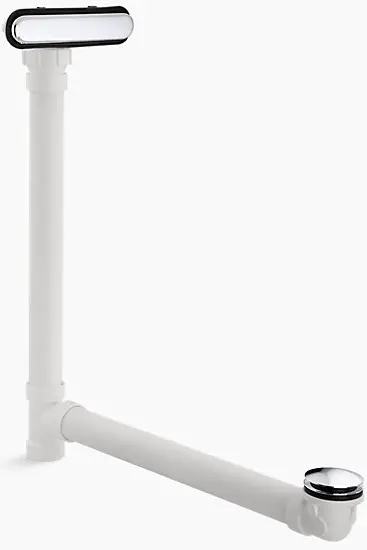

KOHLER Clear flo K-7272 PVC Slotted Overflow Bath Drain Instruction Manual
Feature
- No internal linkages, reducing the chance of clogs in the overflow pipe
- Ball-joint construction for easy installation
- Includes toe-activated closing, and PVC tee and pipe
- For use with Elevance™, Archer™, Underscore®, Rêve™, and Parity™ baths and whirlpools.
Material
- Schedule 40 PVC with metal overflow cover
- KOHLER finishes resist corrosion and tarnishing
Installation
- Above- or through-floor installation
Recommended Products/Accessories
K-23726 Drain treatment K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.2/CSA B125.2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
| Color | Code | Description |
 | CP | Polished Chrome |
| SN | Vibrant® Polished Nickel | |
| AF | Vibrant® French Gold | |
| PB | Vibrant® Polished Brass | |
| BGD | Vibrant® Moderne Brushed Gold | |
| BN | Vibrant® Brushed Nickel | |
| BV | Vibrant® Brushed Bronze | |
| 2BZ | Oil-Rubbed Bronze | |
| BL | Matte Black | |
| 2MB | Vibrant® Brushed Moderne Brass | |
| RGD | Vibrant Rose Gold | |
| TT | Vibrant Titanium |

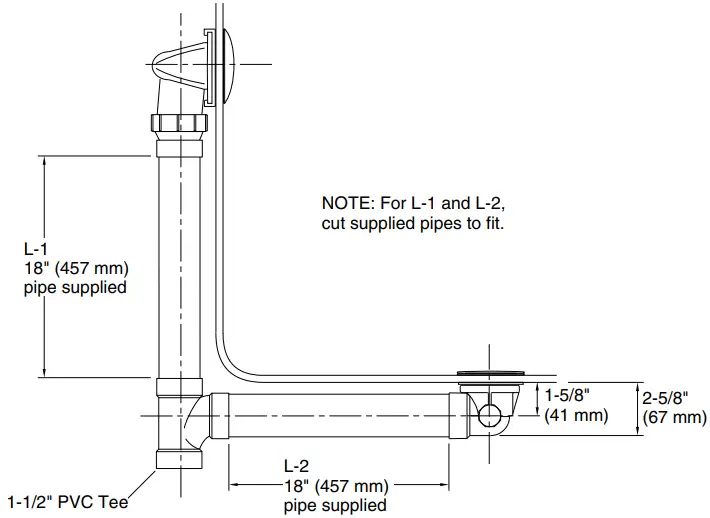

Dimension
Technical Information
All product dimensions are nominal.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com. 3-8-2023 00:48 – US/CA/MX.
