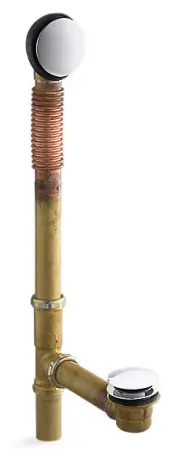

K-7259 Clearflo Brass Toe Tap Bath Drain
Instruction Manual
Features
- Toe-activated closing.
- Above- or through-floor installation.
- Flexible overflow joint conforms to various bath angles.
- Includes tee, drain well, and overflow all with attached 1-1/2″ OD pipe.
- Toe-tap actuation means no internal linkages, reducing potential clogging through the overflow.
- The copper corrugated neck makes the drain easy to install on any bath slope.
- For use with 14″ – 20″ (356 – 508 mm) baths, whirlpools, and BubbleMassage™ air baths.
Material
- Solid-brass construction for durability and reliability.
- KOHLER finishes resisting corrosion and tarnishing.
- 17-gauge brass pipe.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.2/CSA B125.2
KOHLER® One-Year Limited Warranty
See the website for detailed warranty information.
Available Colors/Finishes
Color tiles are intended for reference only.
| Color | Code | Description |
 | CP | Polished Chrome |
| SN | Vibrant® Polished Nickel | |
| AF | Vibrant® French Gold | |
| BGD | Vibrant® Moderne Brushed Gold | |
| BN | Vibrant® Brushed Nickel | |
| BV | Vibrant® Brushed Bronze | |
| 2BZ | Oil-Rubbed Bronze | |
| BL | Matte Black | |
| 2MB | Vibrant® Brushed Moderne Brass | |
| RGD | Vibrant Rose Gold | |
| TT | Vibrant Titanium |

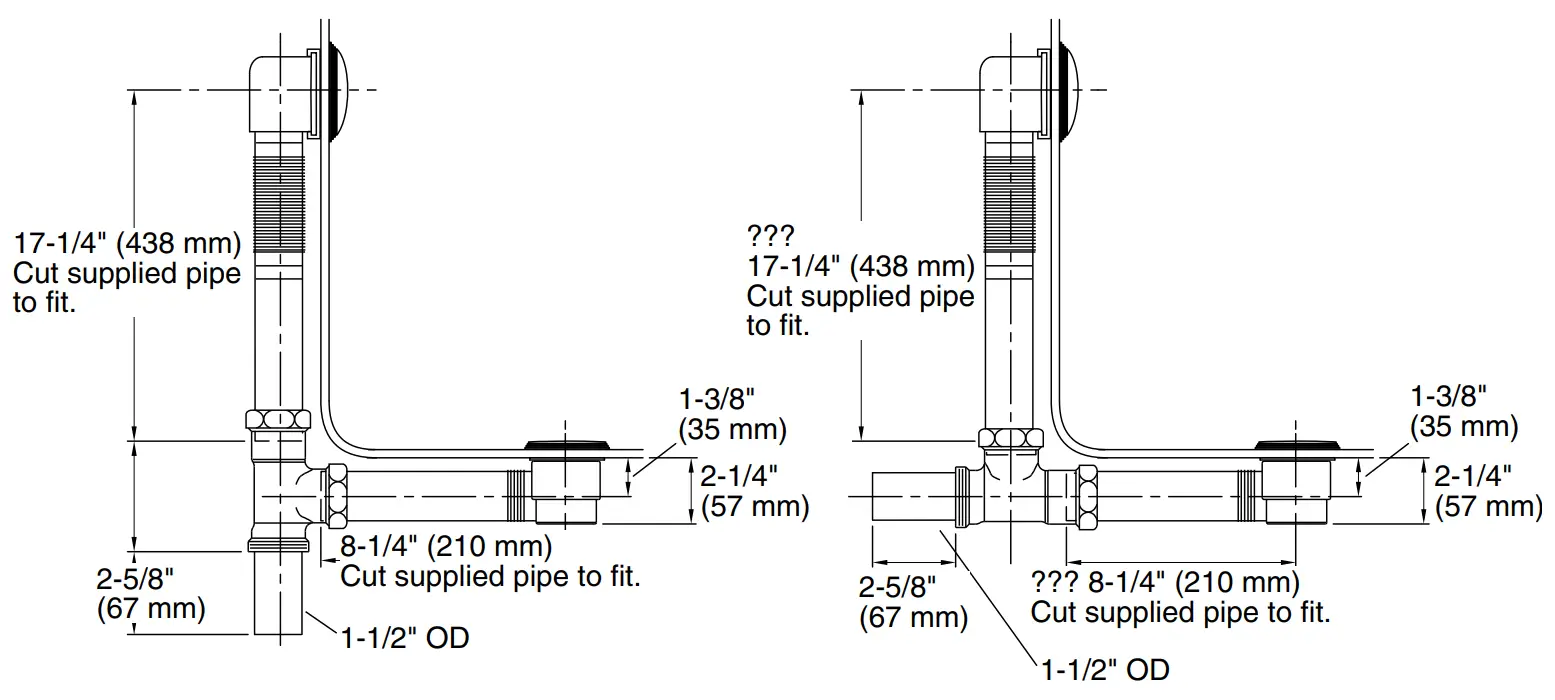

Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation guide.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-5-2022 22:38 – US/CA
