KOHLER 71171120-0 Ensemble Vikrell Right-Hand Drain Rectangular Skirted Bathtub

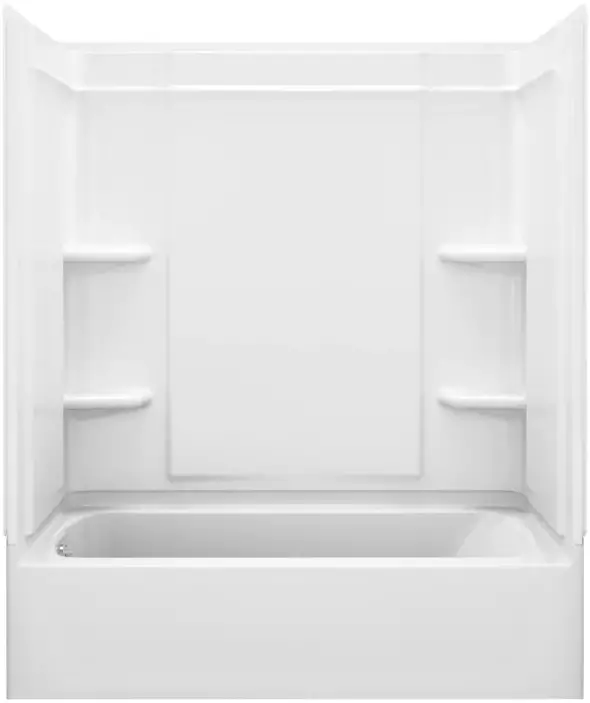

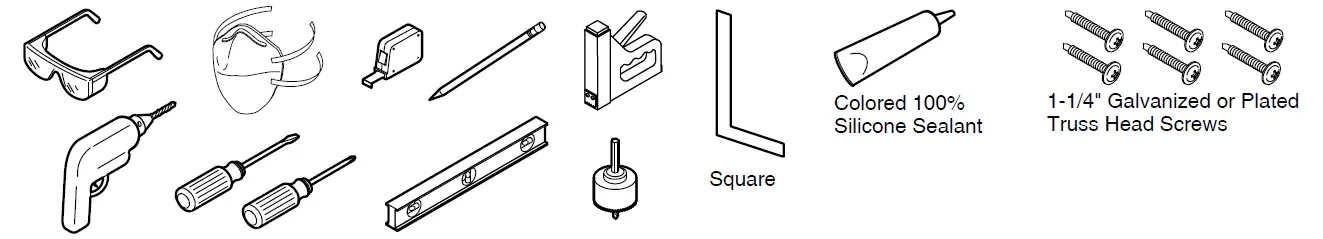

Tools

Optional

• Mortar cement
• Shims
• Furring Strips
• Drop cloth

Record your model number below for future reference:

• Observe all local building and plumbing codes.
• Install on an adequately supported subfloor.
• If the subfloor is not level and access to shim is difficult, install with a 1″ (25 mm) to 2″ (51 mm) bed of mortar cement.

Installation Instructions

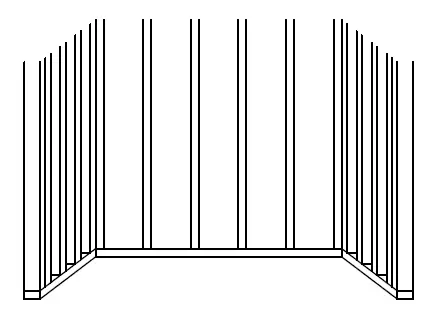

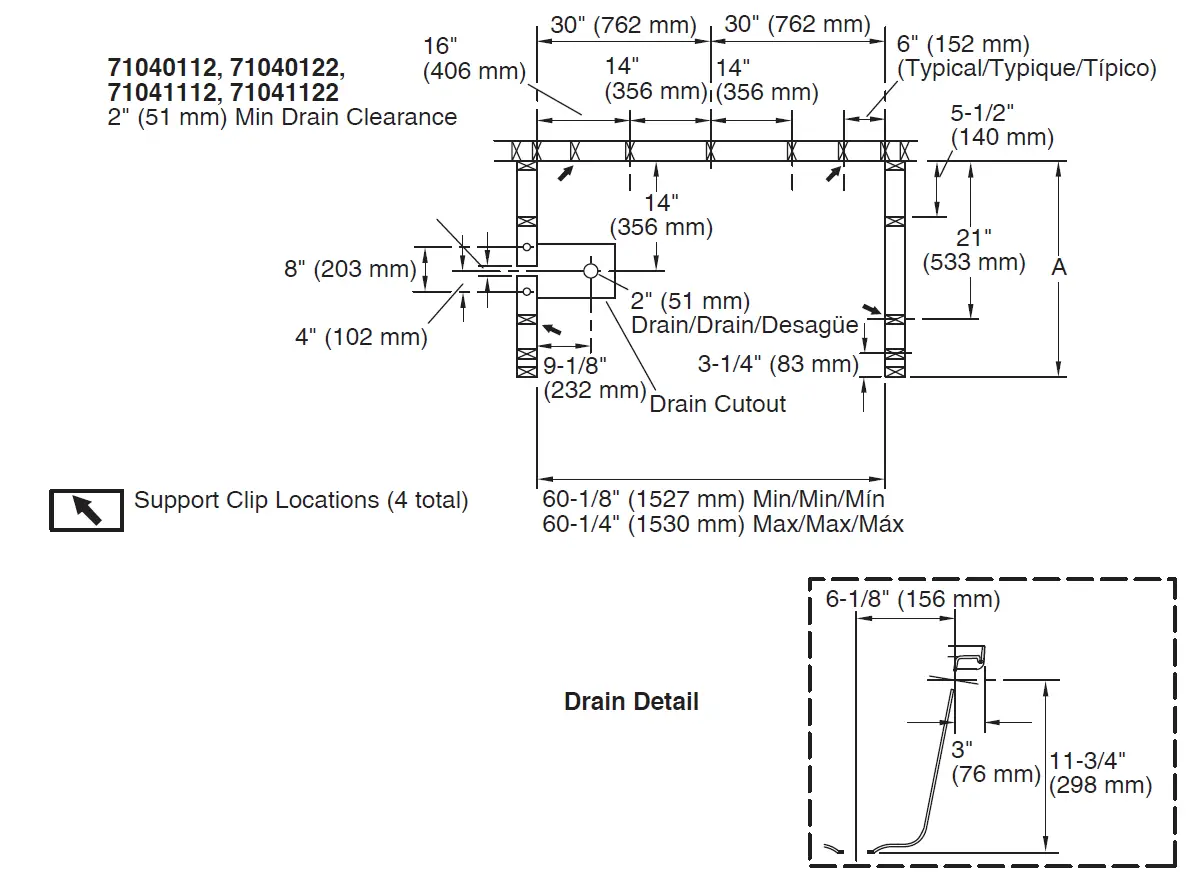

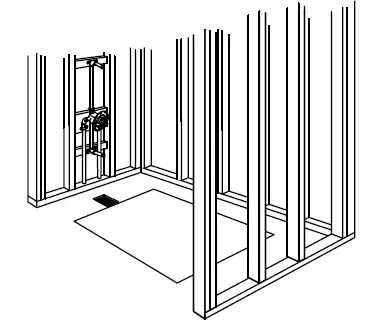

1. Construct a plumb stud pocket according to the roughing-in information on the back page.

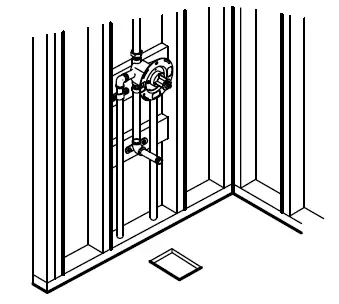

2. Install the rough plumbing.
3. Install the drain to the bath.

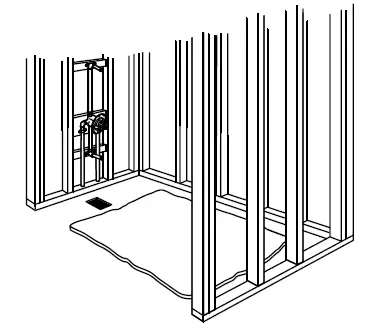

4. Staple the felt pad, if provided, to the subfloor so it will contact all the support feet.
5. Without a pad, set the basin area in 1″ (25 mm) to 2″ (51 mm) of mortar cement.

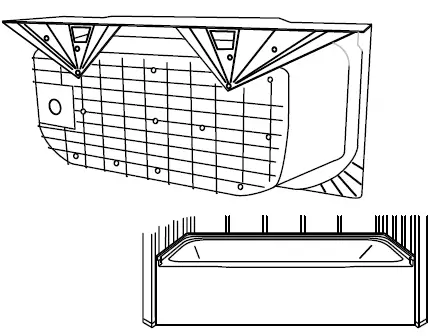

6. Attach the apron brace, if provided. Lift and position the bath in the stud pocket.

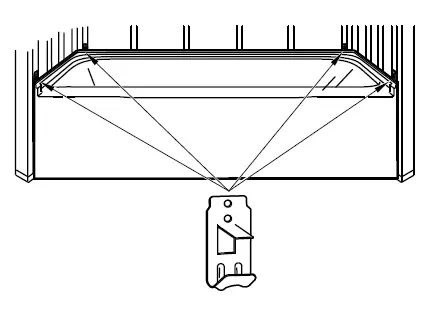

7. Attach metal support clips to the flange at the locations shown in the roughing-in information.

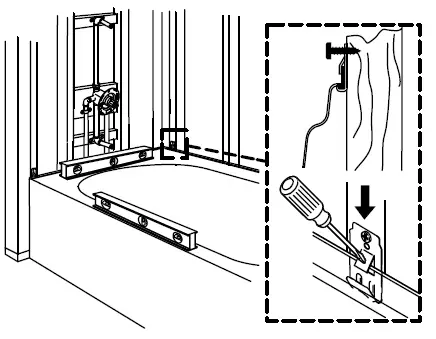

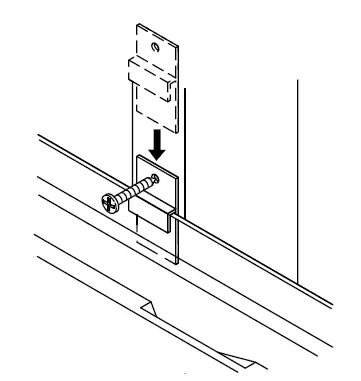

8. Level the unit. Secure the metal support clips to the studs. Bend the tabs over the flange.
9. Install plastic attachment clips at all remaining stud locations.

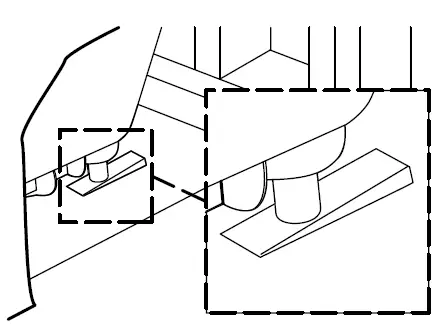

10. With the unit level, shim under the support feet as needed.

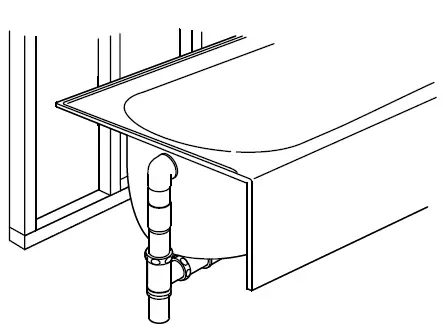

11. Connect the bath drain to the drain pipe. Position a protective liner in the bath.

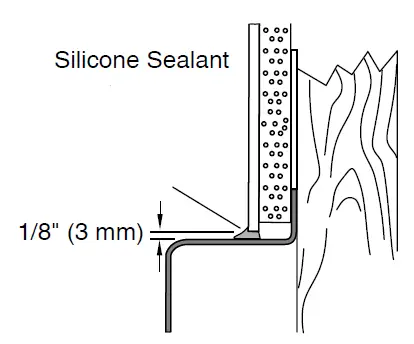

12. Custom Walls: Install furring strips, wallboard, and the finished wall as shown.
13. STERLING Wall Set: Install the back wall. Insert the tabs into the slots.

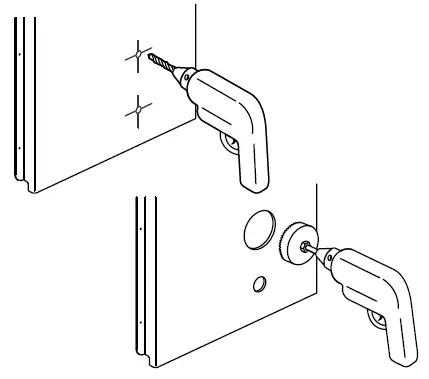

14. Measure, mark, and drill the faucet holes in the end wall.

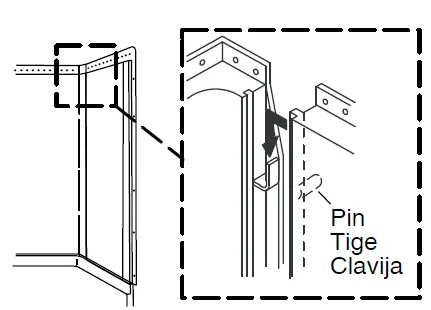

15. Install the end walls. Engage the pins in the slots.

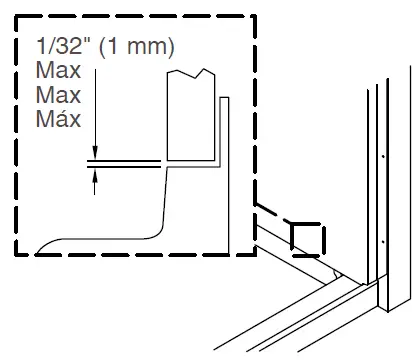

16. The front edges should be flush, with no more than a 1/32″ (1 mm) gap.

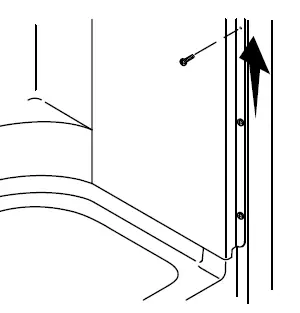

17. Starting at the bottom, install screws through the dimples to secure the flanges to the studs.

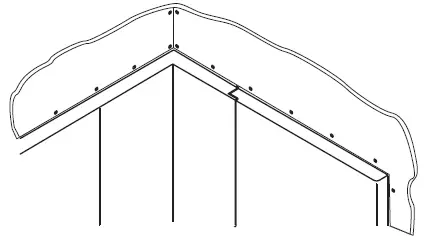

18. Secure the walls to the studs along the top. Use shims as needed.
19. Cover the framing with water-resistant wallboard. Install the finished wall material.

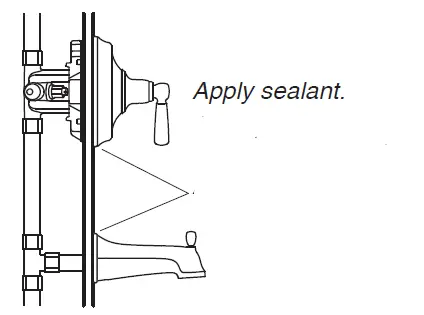

20. Install the faucet trim and accessories, and seal where they contact the wall panels.

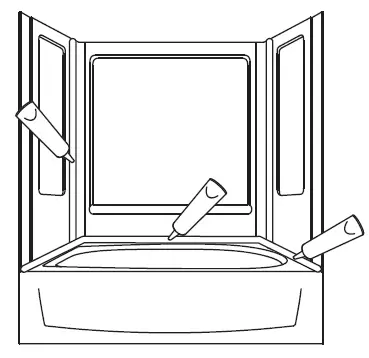

21. Apply 100% silicone sealant to all bath and wall seams.

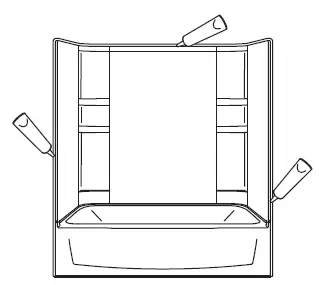

22. After painting, apply 100% silicone sealant where the unit contacts the finished wall.

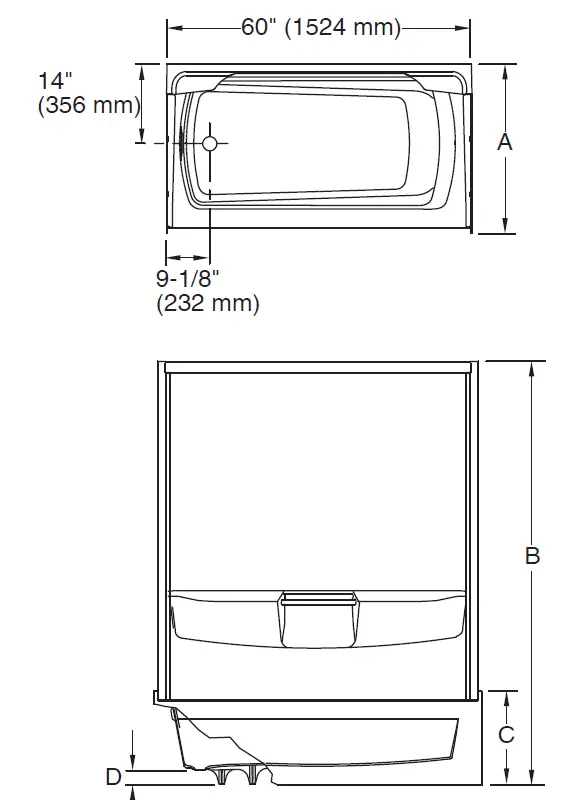

Dimensions

Need help? Contact the Customer Care Center.
USA/Canada: 1-800-STERLING (1-800-783-7546), Mexico: 001-877-680-1310
For service parts information, visit sterlingplumbing.com/parts.
For care and cleaning, visit sterlingplumbing.com/care-and-cleaning.
Patents: kohlercompany.com/patents
This product is covered under the STERLING® Vikrell® or Acrylic Baths and Shower Bases Ten-Year Limited Warranty found at sterlingplumbing.com/warranty. For a hard copy of warranty terms, contact the Customer Care Center.

USA/Canada: 1-800-STERLING (1-800-783-7546)
Mexico: 001-877-680-1310
www.SterlingPlumbing.com
