Imperator®

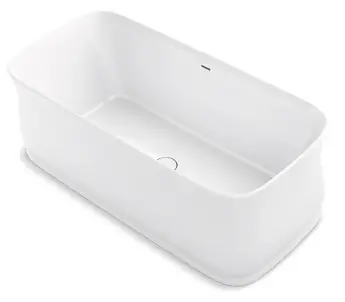

65-3/4″ x 31″ freestanding bath
K-8334
Codes/Standards
CSA B45.5/IAPMO Z124
KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty See the website for detailed warranty information.
Available Colors/Finishes
Color tiles are intended for reference only.
| Color | Code | Description |
 | 0 | White |
Features
- The freestanding design creates a striking focal point in your bathing area.
- 17″ (432 mm) depth offers a deep soaking experience.
- Integral lumbar support.
- Center toe-tap drain with KOHLER Lithocast® cover.
Material
- KOHLER Lithocast® Gloss cast resin.
Installation
- Freestanding.
Recommended Products/Accessories
K-23726 Drain treatment
K-23732 Tub & shower cleaner

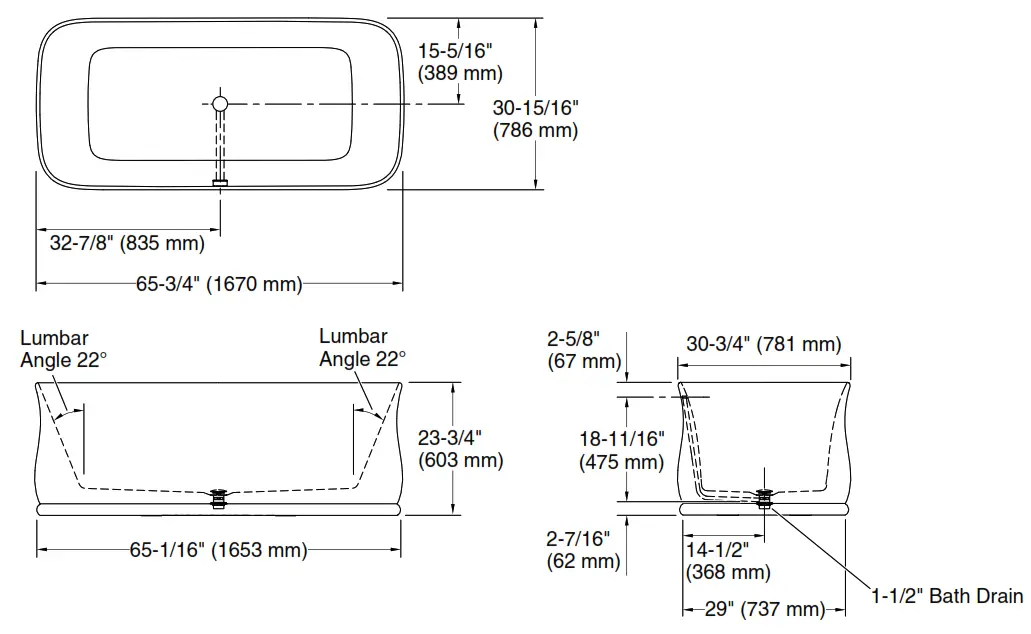

Technical Information
All product dimensions are nominal.
| Installation: | Freestanding |
| Drain location: | Center |
| Basin area, bottom: | 50-1/8″ x 22-3/8″ (1273 mm x 568 mm) |
| Basin area, top: | 64-1/2″ x 29-5/8″ (1639 mm x 753 mm) |
| Weight: | 360 lbs (163.3 kg) |
| Minimum floor load: | 90.9 lbs/ft² (443.8 kg/m²) |
| Water depth: | 16-15/16″ (430 mm) |
| Water capacity: | 94.61 gal (358.1 L) |
| Template: | Footprint, 1314995, not required, not included |
Notes
Measure your actual product for rough-in details.
Install this product according to the installation instructions.
The hot water supply should be 70% of the capacity of the bath or greater. Installations will vary.
Allow for 3º (76 mm) diameter of clearance around the drain pipe on finished floor material to prevent drain body interference during installation.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
