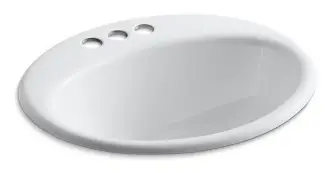

KOHLER® K-2905-4 Farmington® Bathroom Sink Instruction Manual
Features
- 4″ (102 mm) centerset faucet holes.
- Oval basin.
- Overflow drain.
Material
- KOHLER® enameled cast iron.
Installation
- Drop-in.
Recommended Products/Accessories
K-8998 P-Trap
K-23726 Drain treatment
K-23725 Cast iron cleaner
Codes/Standards
ASME A112.19.1/CSA B45.2
All applicable US Federal and State material regulations
ADA
ICC/ANSI A117.1
CSA B651
OBC
See website for detailed warranty information.

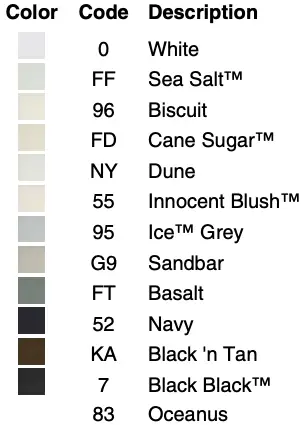

Available Colors/Finishes
Color tiles intended for reference only.

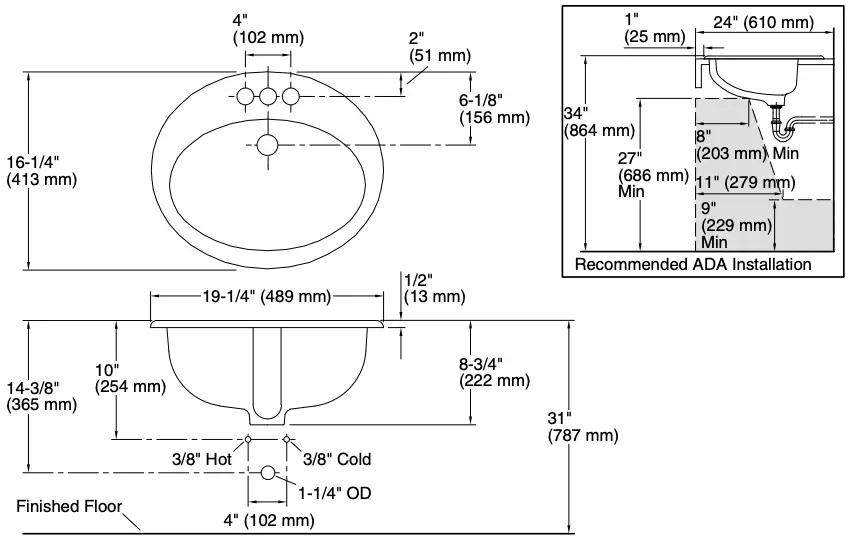

Technical Information
All product dimensions are nominal.
Installation: Drop-in
Bowl area:
Length: 16″ (406 mm)
Width: 11″ (279 mm)
Water depth: 5″ (127 mm)
Number of deck holes: 3
Faucet hole spacing: 4″ (102 mm)
Faucet hole(s): 1-3/8″ (35 mm)
Drain hole: 1-11/16″ (43 mm)
Template: 1002973-7, required, included
Notes
Install this product according to the installation instructions.
NOTICE: Countertop manufacturer or cutter must use the current product template available at www.kohler.com, or by calling 1-800-4KOHLER. Kohler Co. is not responsible for cutout errors when the incorrect cutout template is used.
ADA, OBC, CSA B651 compliant when installed to the specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-15-2022 01:37 – US/CA
