STERLING
Installation Guide
WARNING: Risk of personal injury.
Edges are sharp. Wear gloves when handling the sink.

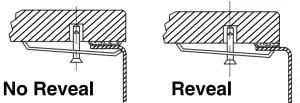

Choose a mounting style. Some models are offered with reveal and no-reveal mounting options. See the provided cut-out template for details.
Provide your countertop supplier with your sink and faucet model number when ordering your countertop. When determining anchor locations, allow for faucet clearance.
Fasteners are not included. The countertop supplier should install anchors into the underside of the countertop.

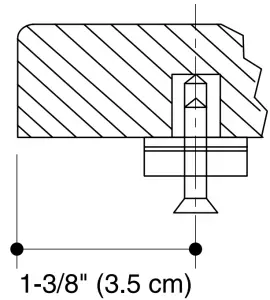

For multiple-bowl installations, a minimum of 2-3/16″ (5.6 cm) is required between bowls. Any required support should be determined by the countertop supplier.

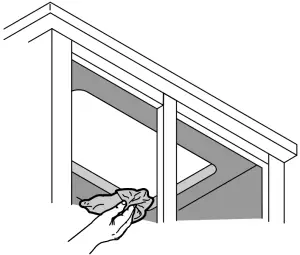

Clean the top and underside of the counter and the rim of the sink.

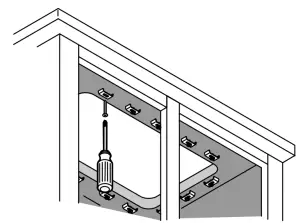

Space the mounting clips around the underside of the countertop and loosely attach.

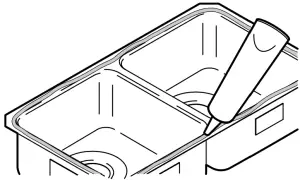

3 Apply sealant near the inside edge.

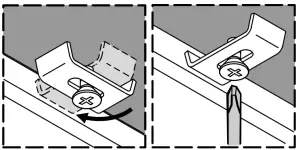

4 Lift the sink into place. Rotate the clips and tighten evenly. Do not overtighten!

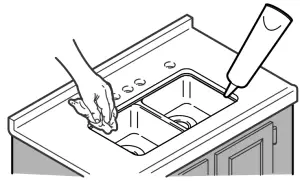

5 Apply silicone sealant (optional); wipe away any excess. Fill voids and allow to dry.

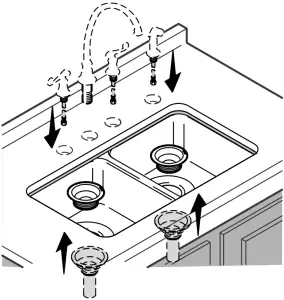

6 Install the faucet and the strainers.

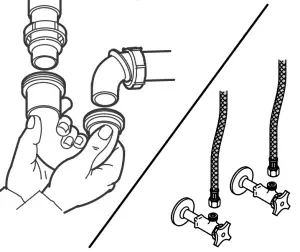

Connect the trap to the drain. Complete the faucet connections. Run water and check for leaks.
Warranty
Stainless Steel Sinks deeper than 6″ – LIFETIME LIMITED
Stainless Steel Sinks less than or equal to 6″ deep – 5 YEARS LIMITED
Based on the classification specified above, STERLING sinks are warranted to be free of manufacturing defects within the time of the specified model’s limited warranty from date of sale.
Kohler Co. will, at its election, repair, rectify or replace a fixture when inspection by Kohler Co. discloses any such defects occurring in normal usage within the time period of coverage stated above. Kohler Co. is not responsible for removal or installation costs where replacement is indicated. Damages due to improper handling, installation or maintenance are not considered manufacturing defects and are not covered by this warranty. This warranty is valid for the original, consumer purchaser only.
To obtain warranty service, contact Sterling, either through your plumbing contractor, home center, wholesaler or dealer, or by calling or writing Sterling, Consumer Services, 444 Highland Drive, Kohler, Wisconsin 53044, 1-800-783-7546.
TO THE EXTENT PERMITTED BY LAW, ALL IMPLIED WARRANTIES INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. KOHLER CO. AND SELLER HEREBY DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of special, incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
This is the exclusive written warranty for Kohler Co.
SERVICE PARTS
For service parts information, visit www.SterlingPlumbing.com.
For copies of our literature, call our Customer Care Center: 1-800-STERLING (1-800-783-7546).
The following information is available at www.SterlingPlumbing.com; just search by your model number:
Troubleshooting
Care and Cleaning Tips
Detailed Installation Information
