INSTALLATION MANUAL
Dex™ Stainless Steel
Undermount Kitchen Sinks
KA1AS17B / KA1AS25B / KA1UD33B / KA1US17B /
KA1US21B / KA1US25B / KA1US32B / KA1US33B /
KD1US17B / KD1US25B / KD1US33B / KD1UD33B

Congratulations on the purchase of your new Kraus plumbing fixture!
Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product:
DO NOT RETURN TO THE STORE
Please contact our Customer Service Team at 1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your receipt with the purchase date for reference.
If for any reason this product does not meet your expectations, please be sure to repack this product in the original box and packaging material to avoid damage during transit.

Prior to Installation:

Make sure that you have all the necessary parts by checking the parts list.
If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement.
Inspect the sink prior to installation to make sure that it has not been damaged during shipping.
Use the cut-out template provided by Kraus.
Observe all plumbing and building codes according to your state requirements.
Not recommended to be installed with a laminate countertop.

For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.

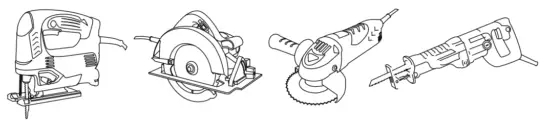

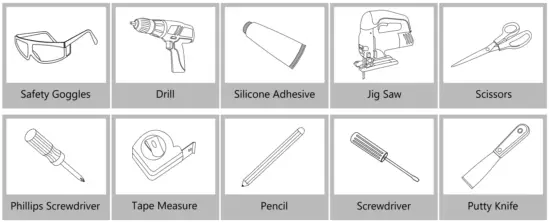

Tools you will need:

NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount sinks with countertop materials other than wood, marble, or granite.

Parts List

KA1AS17B Cut-Out Template Mounting Hardware	KA1US32B Cut-Out Template Mounting Hardware Strainer ST-4 Bottom Grid BG3017
KA1AS25B Cut-Out Template Mounting Hardware	KA1US33B Cut-Out Template Mounting Hardware Strainer ST-4 Bottom Grid BG3117
KA1UD33B Cut-Out Template Mounting Hardware Strainer ST-4 x 2 Bottom Grid BG1517 x 2	KD1US17B Cut-Out Template Mounting Hardware Strainer ST-4 Cover Cap STC-1 Silicone Mitt KSM-1BLACK
KA1US17B Cut-Out Template Mounting Hardware Strainer ST-4 Bottom Grid BG1517	KD1US25B Cut-Out Template Mounting Hardware Strainer ST-4 Cover Cap STC-1 Silicone Mitt KSM-1BLACK Silicone Trivet KST-1BLACK
KA1US21B Cut-Out Template Mounting Hardware Strainer ST-4 Bottom Grid BG1915	KD1US33B Cut-Out Template Mounting Hardware Strainer ST-4 Cover Cap STC-1 Silicone Mitt KSM-1BLACK Silicone Trivet KST-1BLACK
KA1US2SB Cut-Out Template Mounting Hardware Strainer ST-4 Bottom Grid BG2317	KD1UD33B Cut-Out Template Mounting Hardware Strainer ST-4 x2 Cover Cap STC-1 x2 Silicone Mitt KSM-1BLACK Silicone Trivet KST-1BLACK

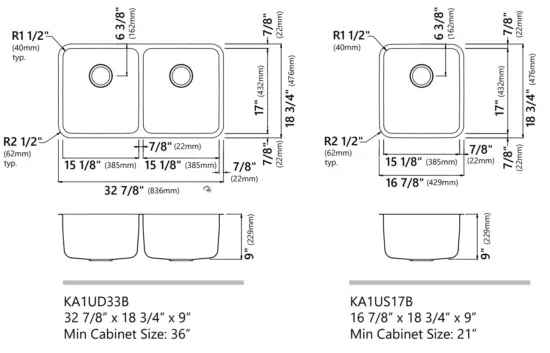

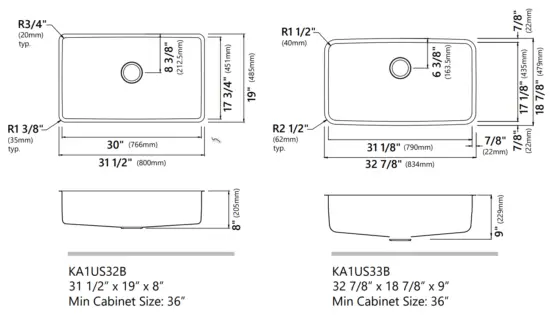

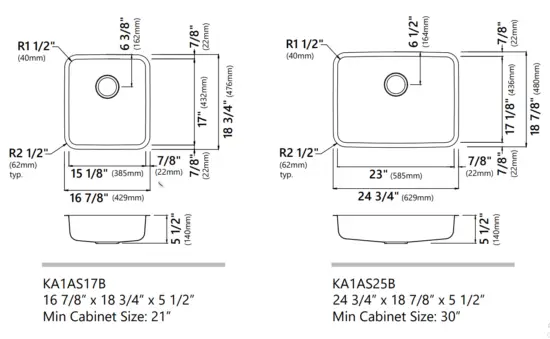

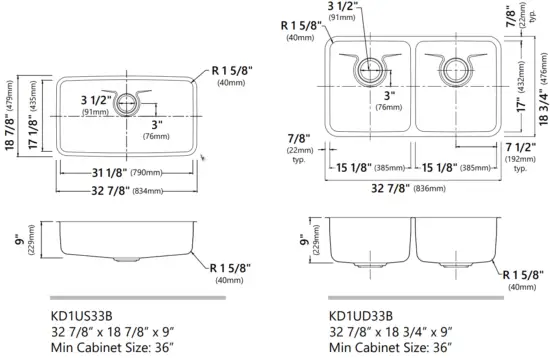

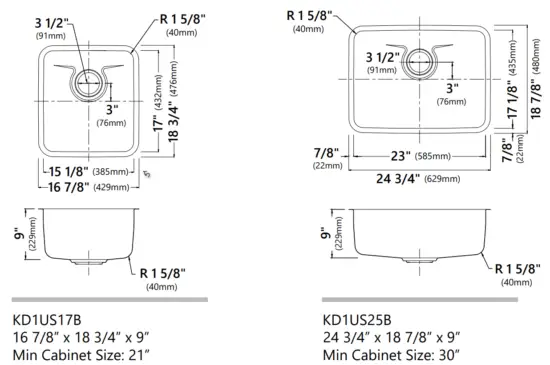

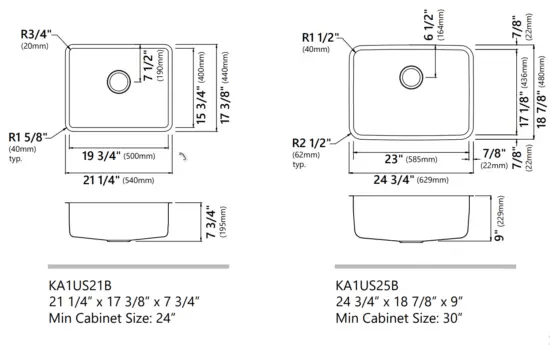

Dimensions

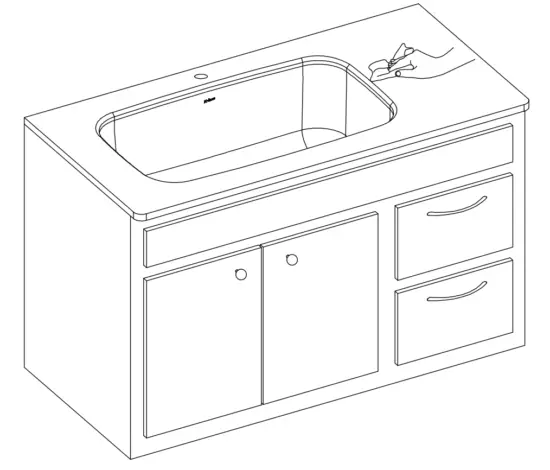

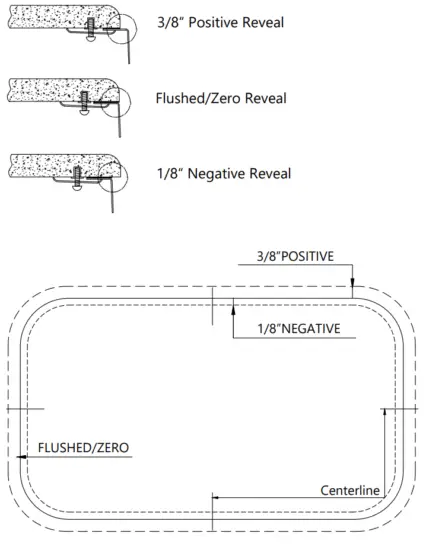

Determine Reveal Type

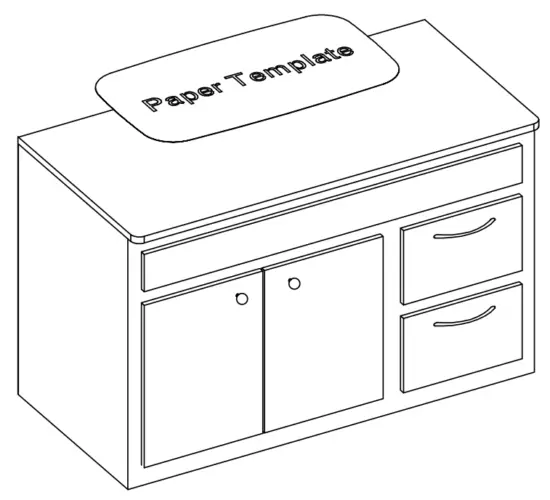

Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flushed Reveal).
KRAUS Recommended Installation Type

Position Template

Check the cut-out template against the actual sink to ensure a properly sized cut-out.

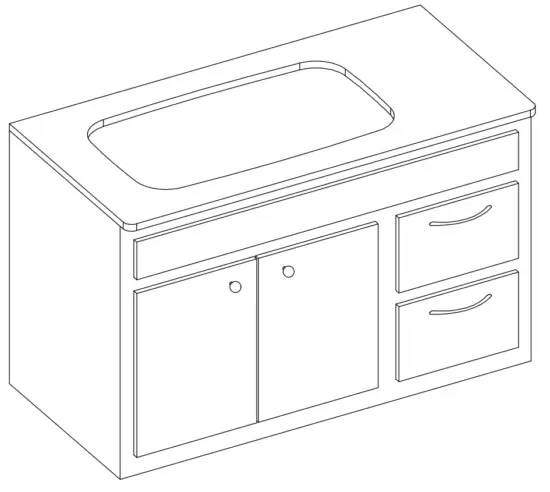

Place the cut-out template in the desired location on the countertop.
NOTE: Make sure clearance is suitable for the backsplash, faucet, and plumbing for the sink.

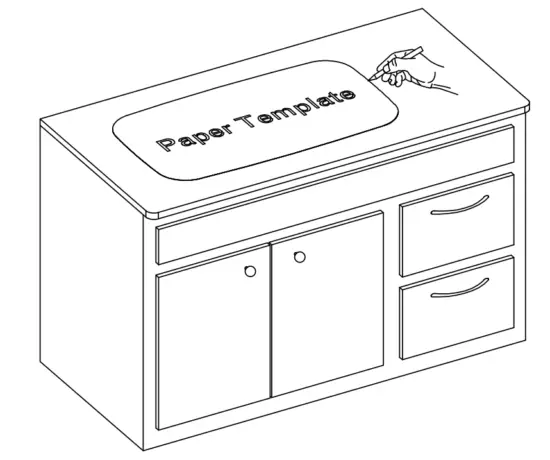

Trace Template

Trace the template on the countertop with a pencil.

Cut Countertop

Cut the opening in the countertop by carefully following the traced line.
NOTE: Please use the appropriate saw that best fits your countertop material.

Set up Mounting Brackets

Turn the countertop over and align the sink with the countertop. Decide the location for mounting brackets.

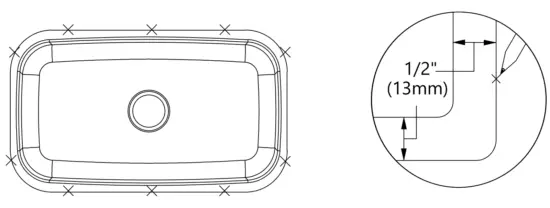

Mounting holes should be 1/2″ from the edge of the sink.

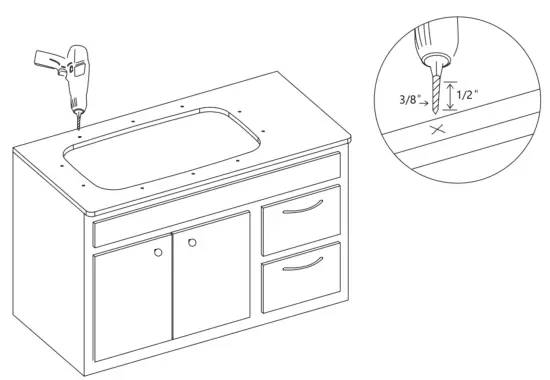

Drill Hole in Countertop

Drill a 3/8″ diameter x 1/2″ deep hole in the countertop.

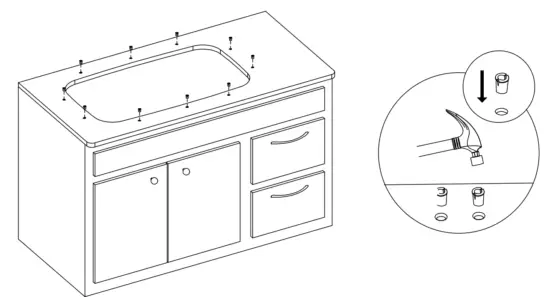

Install Anchors

Insert anchors into drilled holes and lightly tap with a hammer until flush.

Secure Sink to Countertop

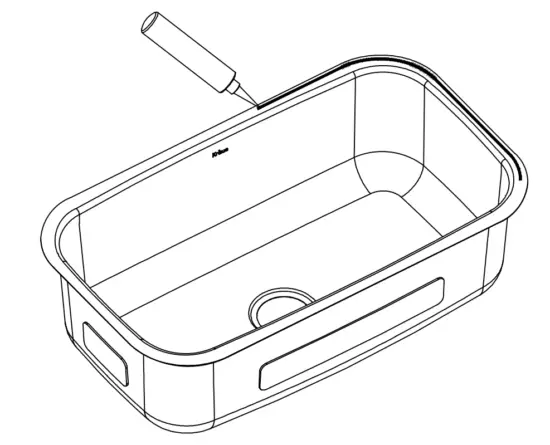

Use a bead of silicone (or preferred adhesive) around the rim of the sink.
Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly.

Attach Mounting Hardware

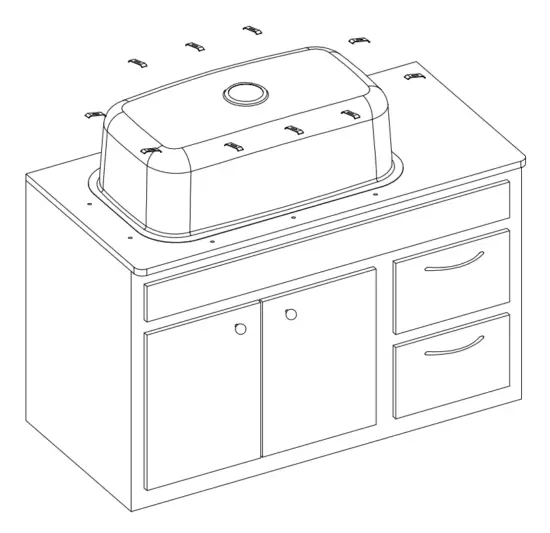

Attach mounting hardware to secure bowl. Remove excess sealant from the inside lip.
Allow the sealant to set for 30 – 60 minutes.

NOTE: Use acetone or rubbing alcohol to remove any excess sealant.

Install Plumbing Fixtures

Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer’s instructions.
Run water into the sink and check for leaks.
Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.
