KOHLER K-7143 Clearflo Retrofit Toe-tap Drain Conversion Kit
Features
- Intended to replace existing stopper/drain, flange/toggle linkage
- Toe-tap component installs on most drain bodies with 1-1/2″-11 1/2 NPSM thread
- For KOHLER drains K-7160-AF, K-7160-TF, K-7161-AF, K-7193
- Metal construction
Recommended Products/Accessories
- K-7193 Bath Drain
- K-23726 Drain treatment
- K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.2/CSA B125.2
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color | Code | Description |
 | CP | Polished Chrome |
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation instructions.
IMPORTANT! This installation should be
performed by a qualified plumber.
IMPORTANT! Provide access to the back of the bath. Removing the existing overflow cover may effect the seal. Inspect the back of the bath for leaks after completing this retrofit installation.

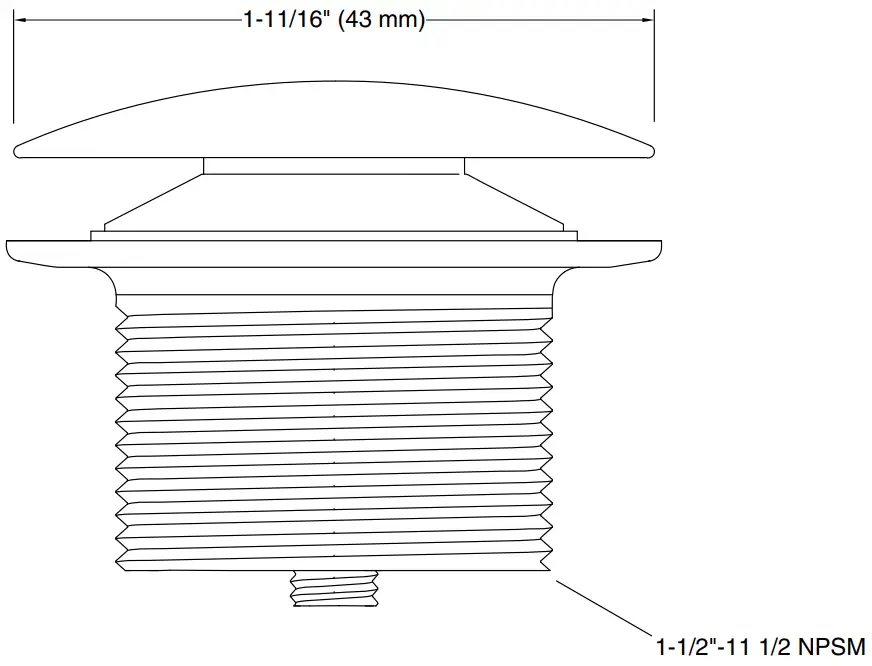

The existing stopper should measure approximately 1-11/16″ (43 mm) in diameter or this kit will not fit.
Customer Support
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
