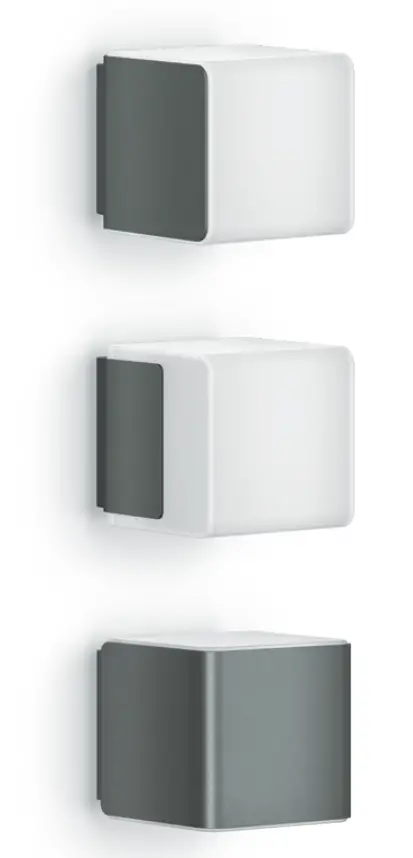

steinel L 830 SC Outdoor Lights & Outdoor Lights

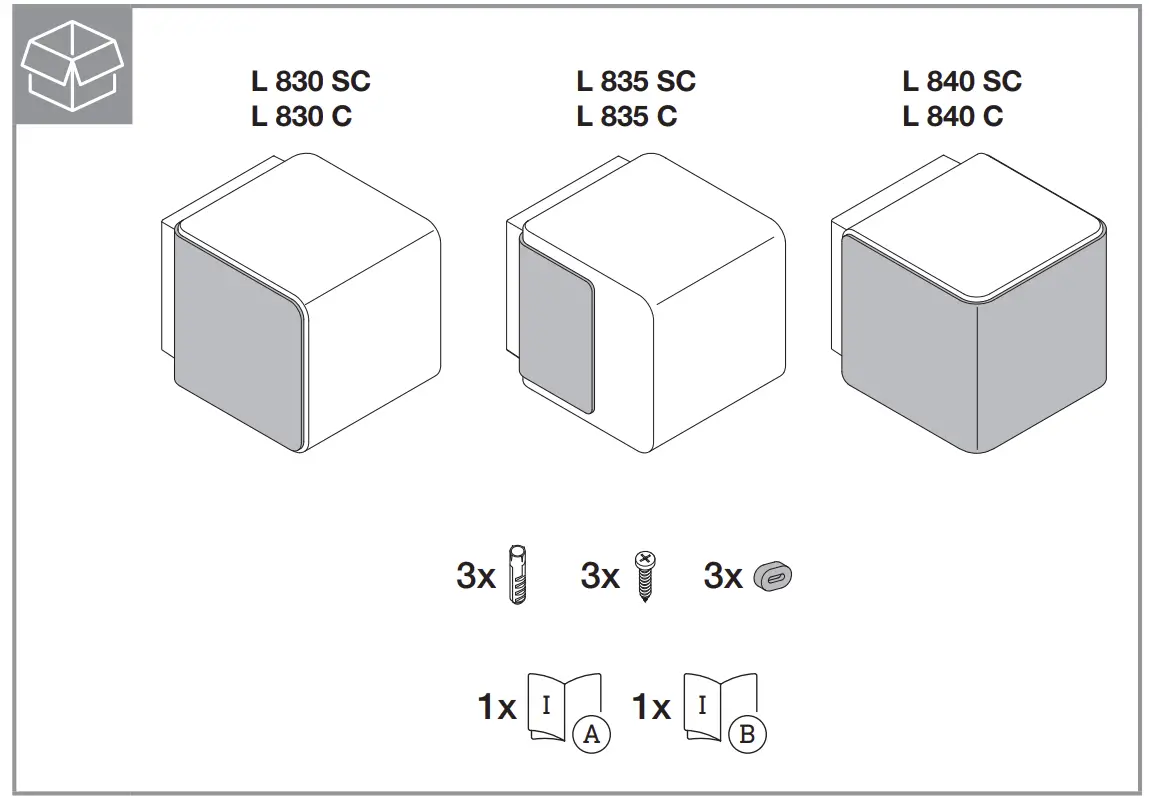

Package Content

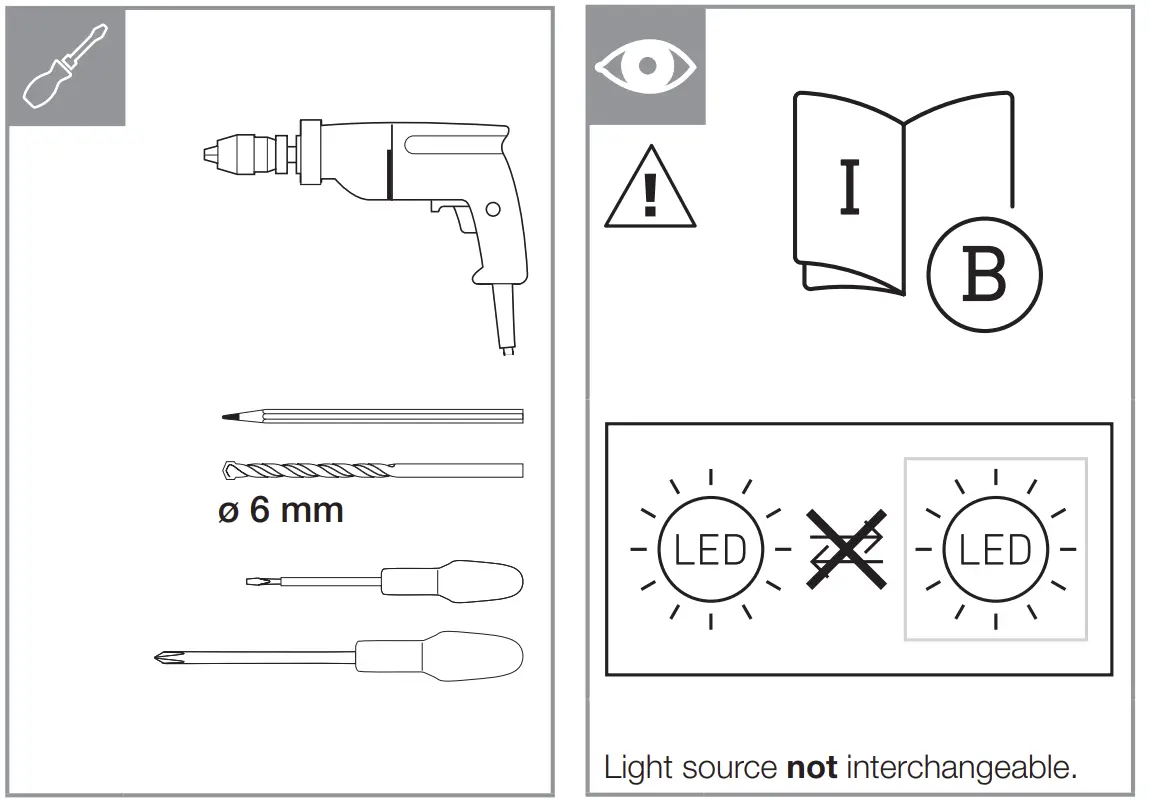

Hardware

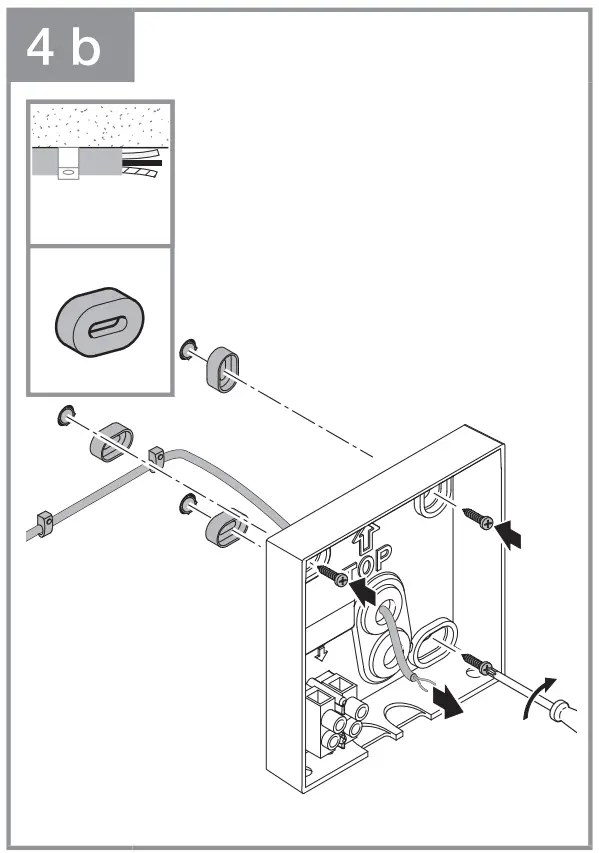

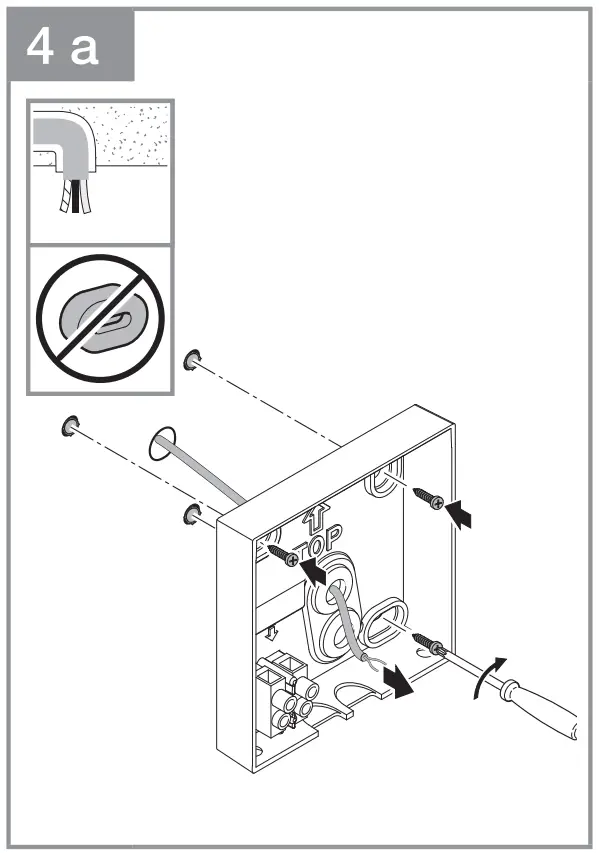

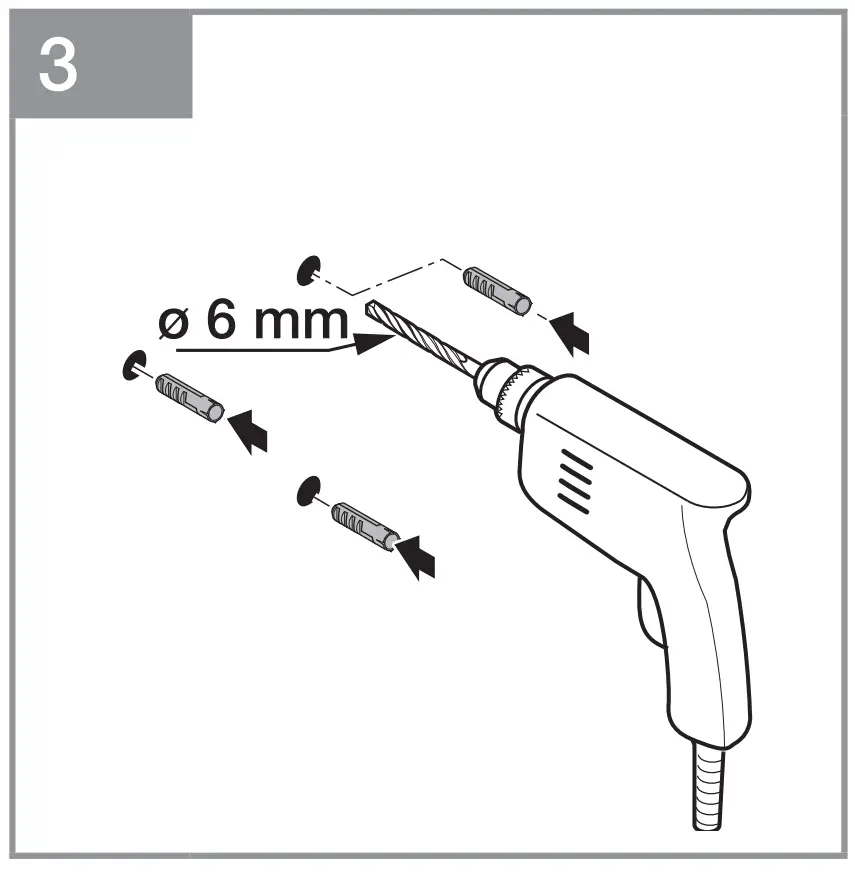

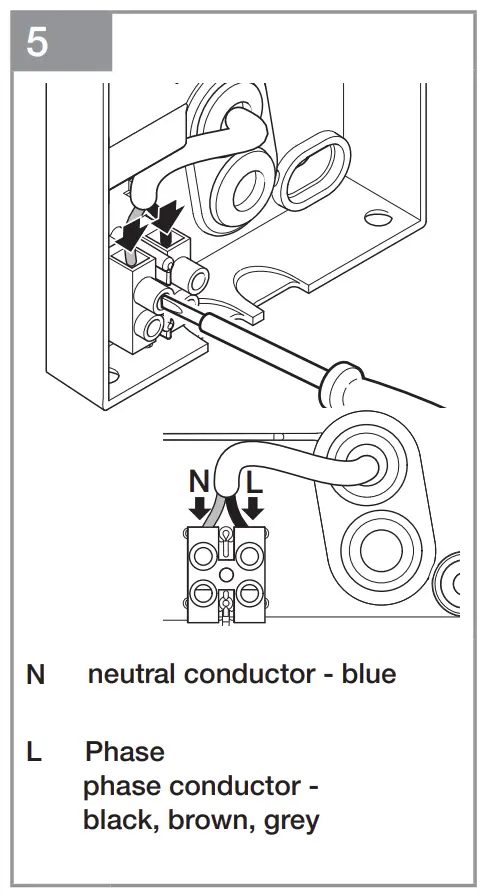

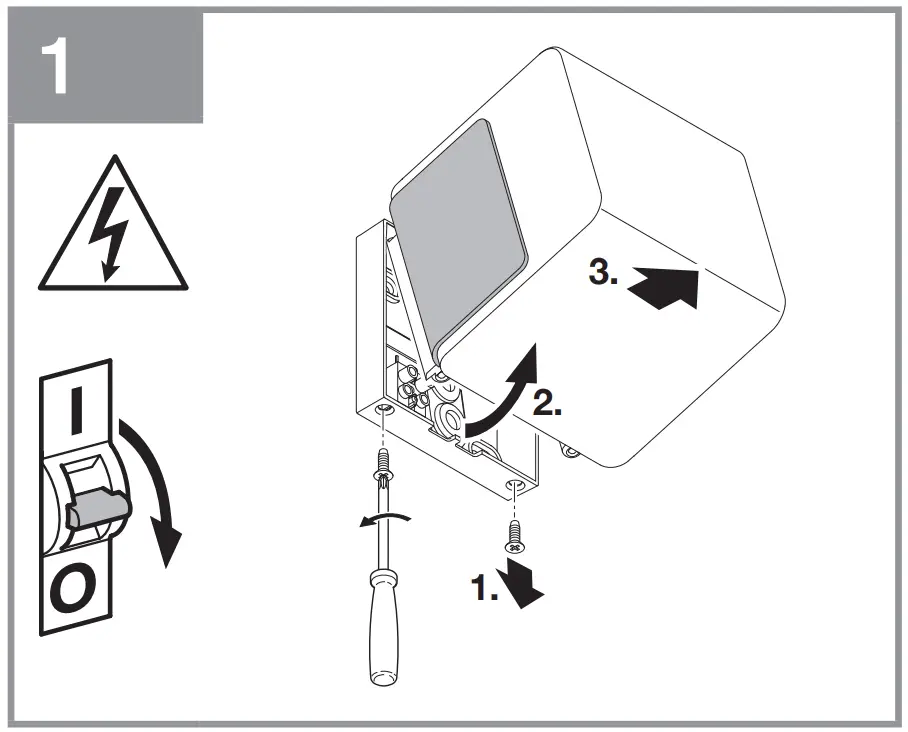

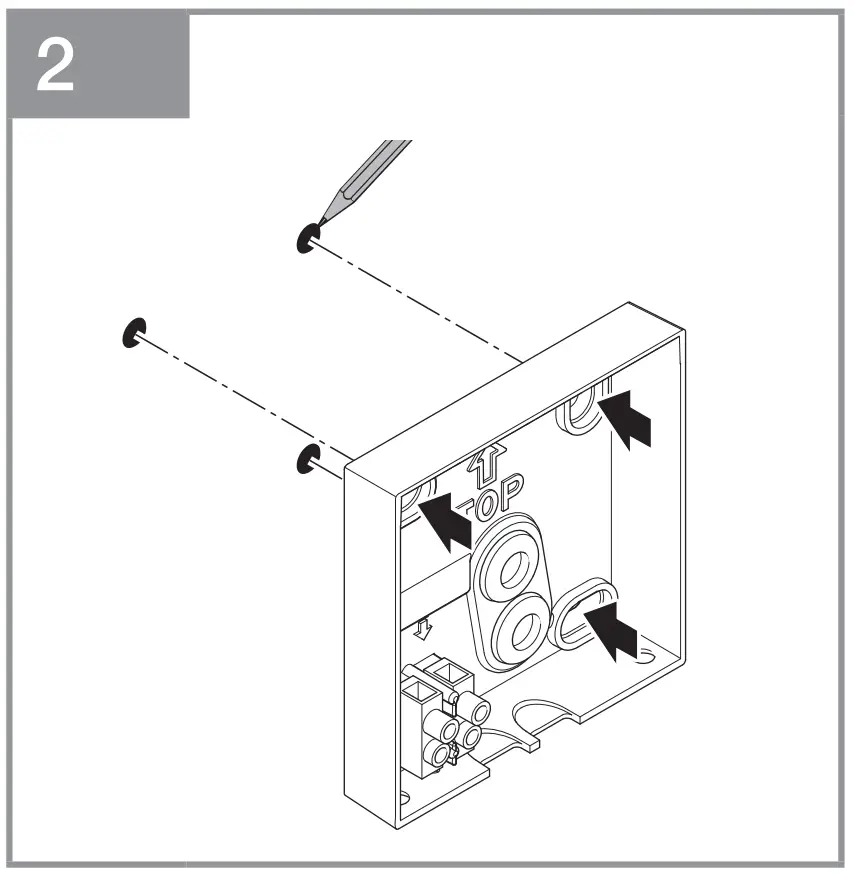

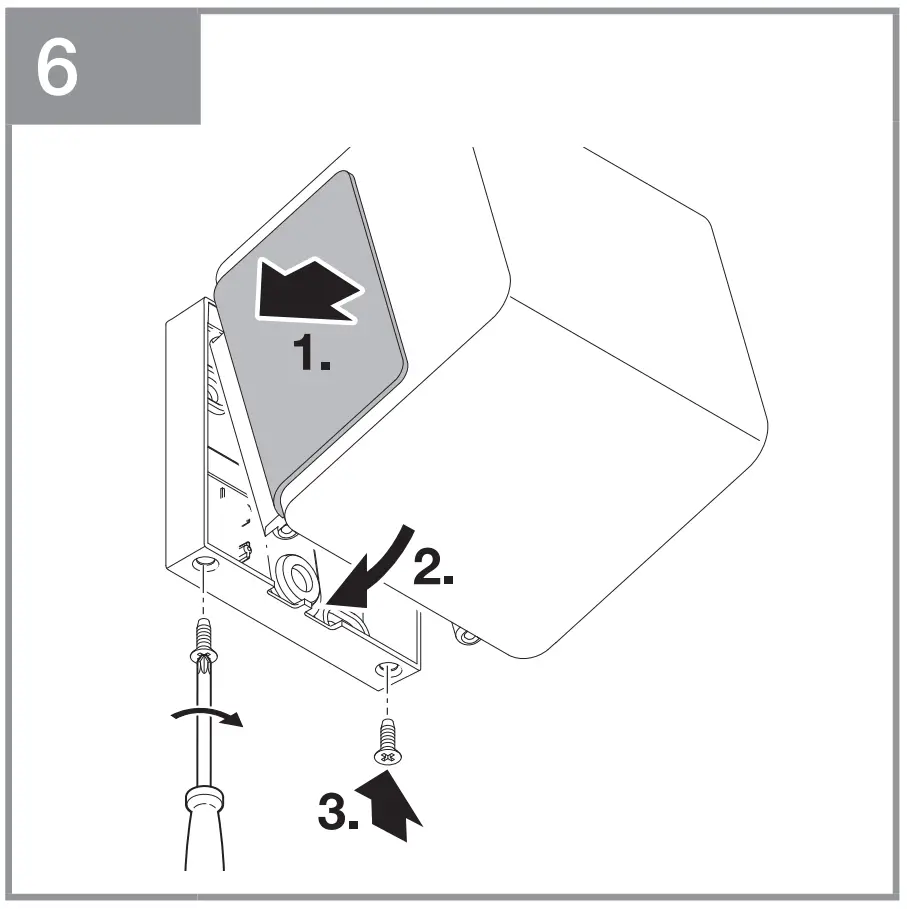

Installation Instructions
L 830 SC, L830 C Smart Remote App | |
Android | iOS  |
Technical Data
| L 830 SC L 830 C | L 835 SC L 835 C | L 840 SC L 840 C | |
| Dimensions (W × H × D) | L 830 SC L 830 C | 110 × 110 × 131,5 mm / 110 × 110 × 131.5 mm | 110 × 110 × 133,5 mm / 110 × 110 × 133.5 mm |
| Mains power supply | 220-240 ~V / 50/60 Hz | ||
| Power consumption (Pon) | 9,1 W / 9.1 W | ||
| Standby Network (Pnet)) | 0,45 W / 0.45 W | ||
| Light output | 493 Im (anthracite), 523 lm (silver (only SC)) | 616 Im (anthracite), 616 Im silver (only SC)) | 319 Im (anthracite), 319 Im silver (only SC)) |
| Efficiency | 54 Im/W (anthracite), 57 lm/W (silver (only SC)) | 68 Im/W (anthracite), 68 lm/W (silver (only SC)) | 35 Im/W (anthracite), 35 lm/W (silver (only SC)) |
| Lamp | LED | ||
| Colour temperature | 3.000 K / 3,000 K | ||
| Colour rendering index | Ra = 82 | ||
| Rated average lifetime | L70B50 at 25°C: > 60.000 hrs | ||
| Colour consistency SDCM | Initial value: 3 | ||

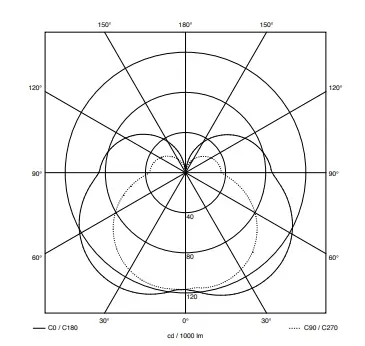

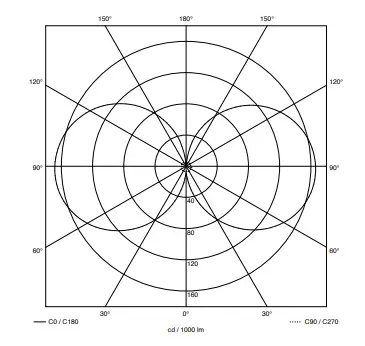

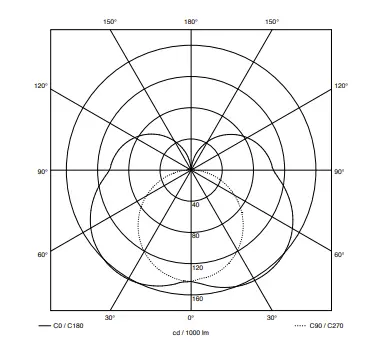

| Luminous intensity distribution |  |  |  |
| Night light | Yes (OFF, 10 min, 30 min, all night, always) For C: only in combination with a bluetooth sensor product | ||
| Detection zone: Angel of coverage | For C: only in combination with a bluetooth sensor product | ||
| Detection zone: Angel of aperture | For C: only in combination with a bluetooth sensor product | ||
| Reach | For C: only in combination with a bluetooth sensor product | ||
| Time setting | For C: only in combination with a bluetooth sensor product | ||
| Twilight setting | For C: only in combination with a bluetooth sensor product | ||
| IP rating | IP44 | ||
| Protection class | II | ||
| Ambient temperature | e -20 °C bis +40 °C / -20 °C to +40 °C | ||
| Bluetooth frequency | 2,4-2,48 GHz / 2.4-2.48 GHz | ||
| Bluetooth transmitter power | 5 dBm / 3 mW | ||
| L 830 SC | L 835 SC | L 840 SC | |
| Power consumption of iHF sensor | 0,67 W / 0.67 W | ||
| Sensor technology | (5,8 GHz, ≤ 1 mW) / (5.8 GHz, ≤ 1 mW) | ||
 | Technical documentation at www.steinel.de/eprel |
Declaration of conformity
Hereby, STEINEL Vertrieb GmbH declares that the radio equipment type
L 830/L 835/L 840 SC/C is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.steinel.de
This product contains a light source of energy efficiency class „F“.
Service
 | Complete user manual steinel.de/110081300.pdf |
+49 5245-448-188
[email protected]
Find your local service steinel.de/contact
