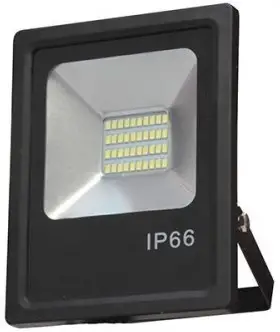

OPTONICA Outdoor LED Floodlights
Please take time to read this leaflet carefully and retain it for future reference.

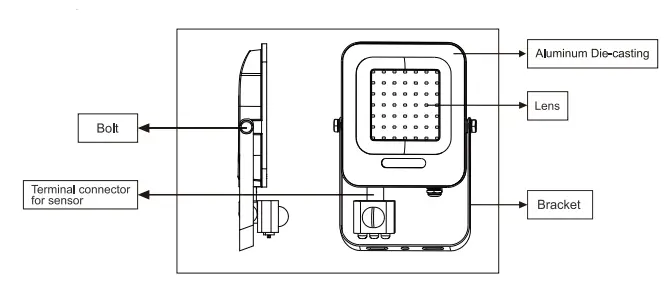

Diagram
Specification
| AC 220-240V ~ 50/60Hz | ||||
| >0.9 | ||||
| 10W | 20W | 30W | 50W | |
| 900Lm | 1800Lm | 2700Lm | 4500Lm | |
| LED 2835 | ||||
| >80 | ||||
| Aluminium Die-casting | ||||
| 90 | ||||
| 97x169x54 | 121x190x54 | 154x228x55 | 182x263x57 | |
| 2700K / 4500K / 6000K | ||||
| -20°C / +40°C | ||||
| IP65 | ||||
| Black / White | ||||
LEGEND
- indoor and outdoor use
- type of the LED package

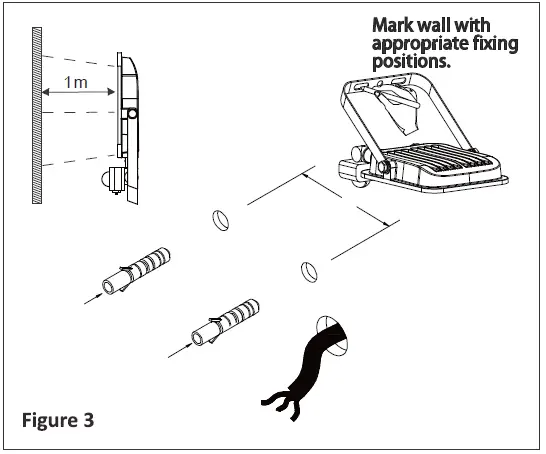

- minimum distance from the other objects

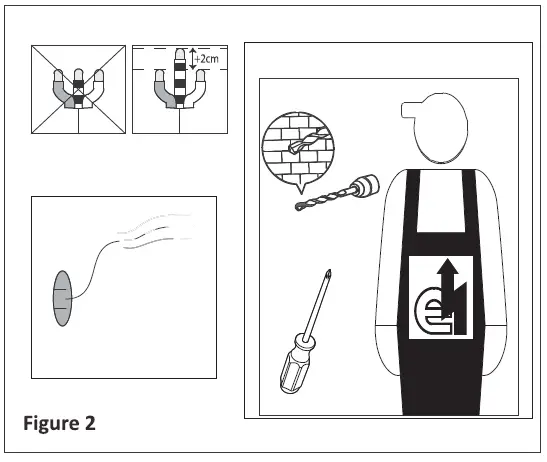

- remove insulation as shown on the picture
- be carefull when installing, do not drill where are the power lines
- attention, do not cross the wires

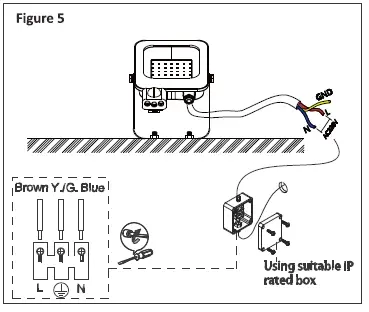

- Set the id first, and install on a junction box

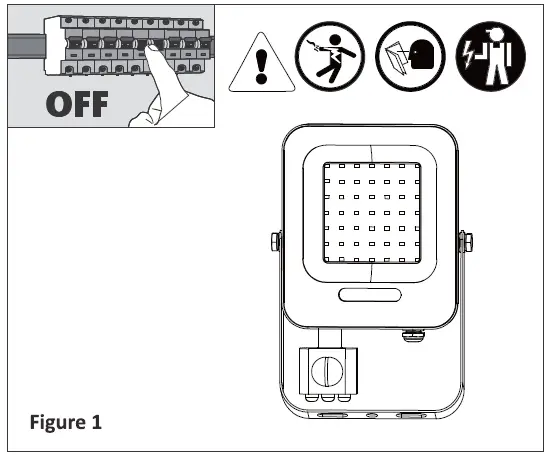

Safety Information
- Installation must be carried out accordance with national building and wiring regulations. If you are in any doubt about installing this product,please consult a qualified electrician.
- The LED module light source in this luminaire shall only be replaced by replaced by the manufacturer,service agent or a similar qualified person.
- Dangerous voltage may be accessible with the cover removed.
- This product is suitable for connection to a 220-240Vac 50/60Hz supply.
- This is a class I product requiring an Earth connection and is IP65 rated for outdoor use.
Sensor Specification:
- Power Source: 220-240V/AC
- Power Frequency: 50Hz
- Ambient Light: <10-2000LUX (adjustable)
- Time-Delay: min: 10sect3sec
- max: 7mint2min
- Rated Load: 100W (led lamp)
- Detection Range: 90°
- Working Temperature: -20~+40 C
- Working Humidity: < 3%RH
- Installation Height: 1.8m-2.5m
- Detection Motion Speed: 0.6-1.5m/s
- Detection Distance: 2-8m (<24 C)
- Turning the SENS dial anticlockwise will decrease the detection range (2m-1Om).
- Turning the TIME dial anticlockwise will decrease the hold time (10 seconds-7minutes).
- Turning the LUX dial anticlockwise will restrict activation to lower light conditions(3-2000lux).

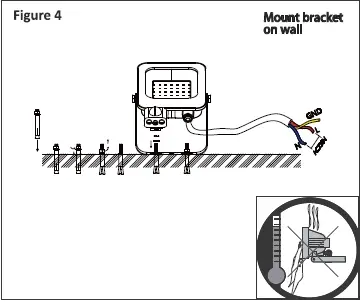

Installation

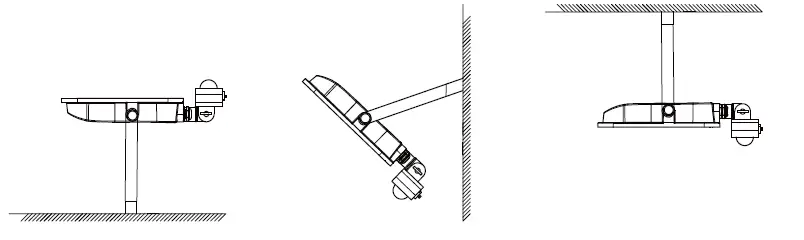

Install the LED floodlights on the ground, wall or ceiling.
This product should be disposed of responsibly at the end of its life. Please recycle where acilities exist. Check with your Local Authority or retailer for recycling advice (Waste Electrical and Electronic Equipment Directive)
IMPORTER: Prima Group 2004 LTD, Bulgaria, 1784 Sofia, Mladost 1, bl. 144, Ground Floor;
Phone: +359 2 988 45 72;
