Optonica 30w Ip65 Led Solar Flood Light User Manual

LED SOLAR FLOOD LIGHT

Please take time to read this leaflet carefully and retain it for future reference.

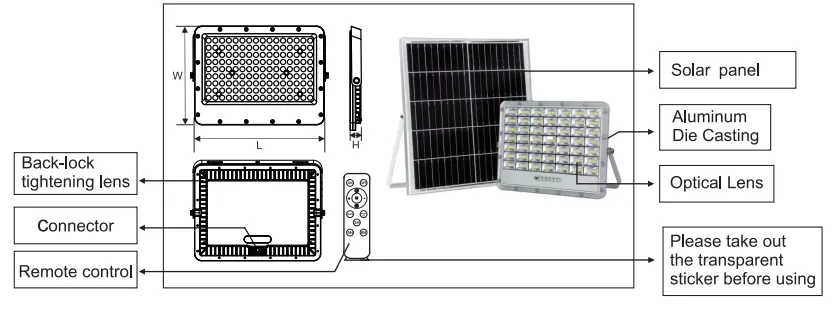

Diagram:

Specification:

10W, 20W, 30W:

• Charging time with solar irradiation is 5-8 hours, but there are many factors due to the processes of usage and region with customers.
• Discharge time, our mode is 100% brightness in the first hour, 80% brightness in the second hour, 60% brightness in the third hour, 50% brightness in the fourth hour. 30% brightness in the fifth to sixth hour. It will not be extinguished until dawn and switch to charging mode.
• liming function: 3H. 511 • 8H
• Mother mode is brightness adjustment mode, which is indicated on remote control.
• Best effect, recommended use of “AUTO” automatic mode.
• Usually power on (installed) is defaulted to automatic mode.
• Automatic mode: The brightness of the whole lamp can be adaptively controlled according to the battery’s own power.

Important Safety Information

• Do not dispose of battery in fire. This may result in an explosion.
• Do not expose the light to fire or intense heat as the battery may explode.
• Do not immerse in water.
• Never look directly into the light or shine it into another person’s eyes.
• Follow proper safety tips to prevent from falling off a ladder.

Fixing instructions

• The light fixture should be installed on a flat and stable surface.
• Avoid installing the light near an air conditioner, a central heater, or high voltage system.
• The solar charger board should be set in a sunny area where maximum sunlight can be collected. Typically, the solar board should face a direction (south) where sunlight can charge the board for at least 3 hours per day (5 hours per day if behind glass). It is suggested to charge the light for 24 hours before first use.
• Use a soft wet cloth to periodically (at least once a year) clean the charger board to avoid the reduction of power output due to accumulated dust.

Installation:

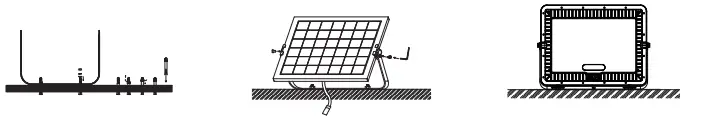

1-Fix the bracket of the solar panel on the mounting surface.	2-Fix the bracket from the solar panel.	3-Fix the bracket of lamp on the wall.

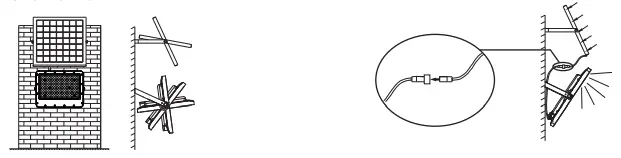

5-Adjust the angle of panel and lamp. PV put towrd South or South West, with a angle of inclination of 15°-20°	6-Connect the wire of the solar panel to the wire of the lamp.

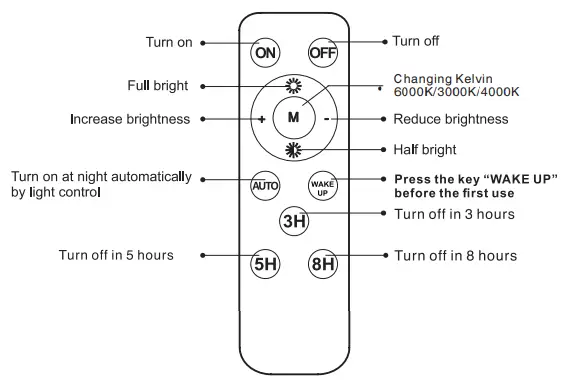

Remote control introduction

Quick Setup Procedure
Warning!

1. Please keep it away from the children.
2. This product can installed for outdoor, but we

Note : Please bring the following tools

This product should be disposed of responsibly at the end of its life. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice (Waste Electrical and Electronic Equipment Directive)
