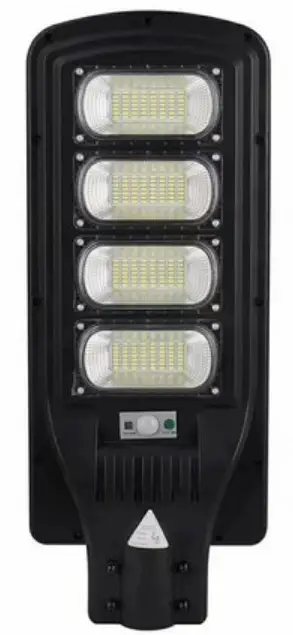

OPTONICA OPT SL9136 Outdoor LED Solar Street Light
Please take time to read this leaflet carefully and retain it for future reference.

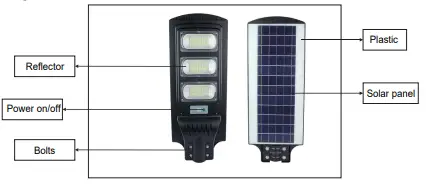

Diagram
8W 10W 15W 18W
- Charging time with solar irradiation is 5-8 hours, but there are many factors due to the processes of usage and region with customers.
- Discharge time, our model is 100% brightness in the first hour, 80% brightness in the second hour, 60% brightness in the third hour, 50% brightness in the fourth hour, 30% brightness in the fifth to sixth hour. It will not be extinguished until dawn or switched to charging mode.
- Timing function: 3H, 5H , 8H
- Best effect, recommended use of “AUTO” automatic mode.
- Usually, power on (installed) is defaulted to automatic mode.
- Automatic mode: The brightness of the whole lamp can be adaptively controlled according to the battery’s own power.
Important Safety Information
- Do not dispose of battery in fire. This may result in an explosion.
- Do not expose the light to fi re or intense heat as the battery may explode.
- Do not immerse in water.
- Never look directly into the light or shine it into another person’s eyes.
- Follow proper safety tips to prevent from falling off a ladder.
- Consult your local construction safty guide if needed for installing the light fixture on a building.
Fixing instructions
- The light fixture should be installed on a flat and stable surface.
- Avoid installing the light near an air conditioner, a central heater, or high voltage system.
- The solar charger board should be set in a sunny area where maximum sunlight can be collected. Typically, the solar board should face a direction (south) where sunlight can charge the board for at least 3 hours per day (5 hours per day if behind glass). It is suggested to charge the light for 24 hours before first use.
- Use a soft wet cloth to periodically (at least once a year) clean the charger board to avoid the reduction of power output due to accumulated dust.

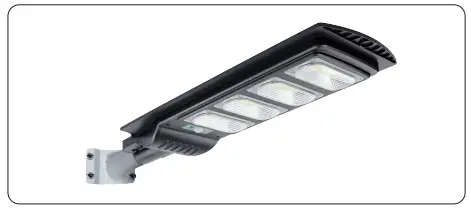

Installation
Quick Setup Procedure
warning!
- Please keep it away from the children.
- This product can installed for outdoor, but we suggest that against for the rain/storm & High lights.
Note : Please bring the following tools
