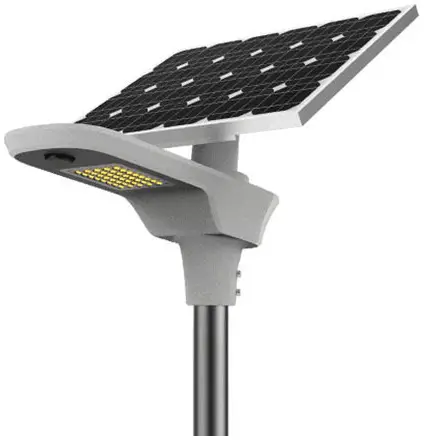

Anern AN-SL All-in-One Solar Street Light User Manual
Our Advantage
The Future Solar Lights
2018 Anern SL series
Powerful Visual Impact, Exquisite Product Design
Streamlined uni body structure with superlative surface treatment
Perfect Solar Street Lighting Solutions
Easier installation, customizable capacity of solar panel and battery, 360°adjustable angle
Main features:
- 2018 Anern patented product, beautiful appearance in integrally molded design
- Flexible angle adjustment, high strength against wind
- Big capacity and deep cycle lithium battery, more durable service life.
- Top quality solar cells, smaller size but higher efficiency
- 4 types of working modes optional, 6 colors of RGB taillights for decoration
Feature
Solar panel angle adjustable

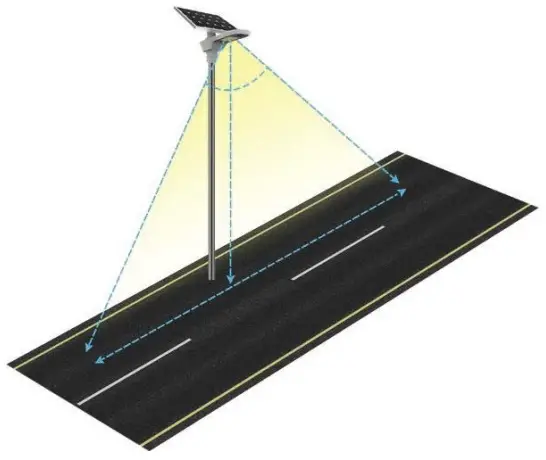

Unique lens with 140*70 degree beam angle, can provide much wider effective lighting area compared to the conventional solar lights for mounting in the same height

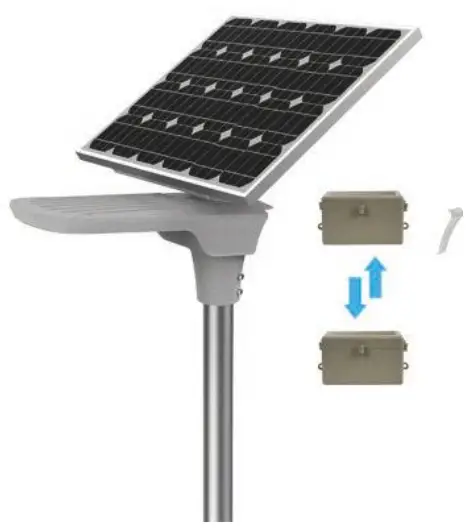

Easy to replace the battery
Just unscrew the lamp back cover and take out the battery box, no need to unload the whole lamp from the pole for battery replacement, very sample and convenient.

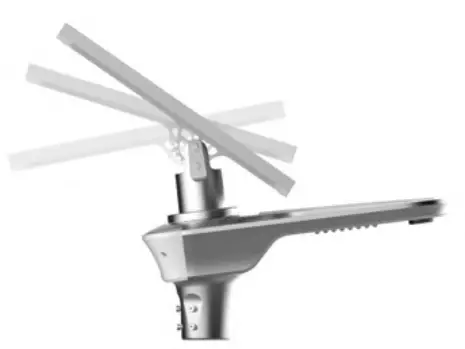

Solar panel angle adjustable
Solar panel can be adjusted according to different environment and make full use of solar energy

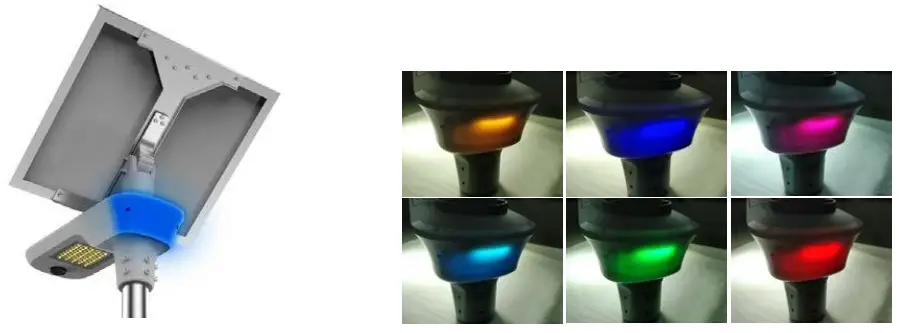

Decorating function with aesthetic design
6 colors switch by turns

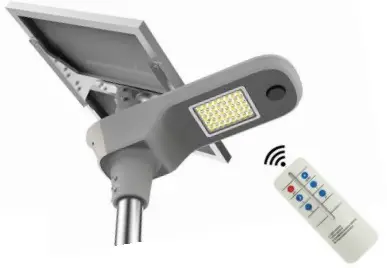

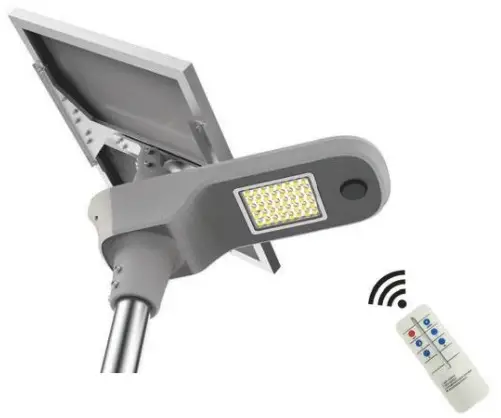

Remote Control Model
- DEMO: No matter day or night, light “on” for 1 minute. Only for test use.
- OFF: No matter day or night, light “OFF” .
- L: At night, 12hr full power.
- T: At night, 4hrs Full Power+8hrs 25%.
- M: At night, 12hrs Motion Sensor Control.
- U: At night, 4hrs Full Power+8hrs Motion Sensor Control.

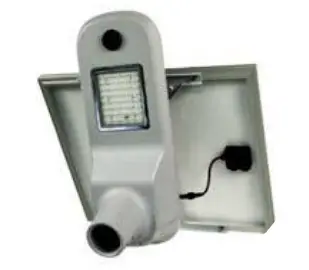

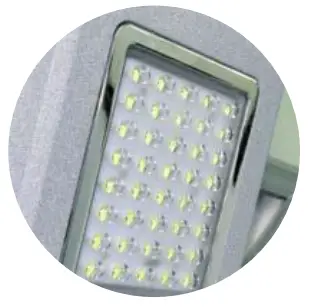

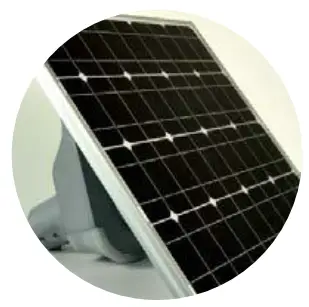

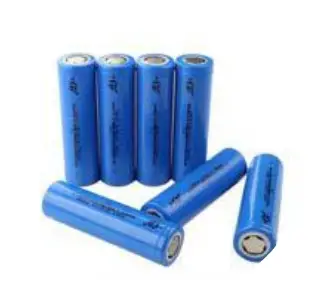

Component Details
- 19% photoelectric conversion efficiency Snow/Wind load PID resistant 25-year progressive warranty
- Long life cycle, >2000 times deep cycle No memory effect, highly efficient charge anytime Good performance at high temperature resistance] Low self-discharge rate < 3% monthly
- 99% Purity good wire Excellent Color Consistency Brightness Decay can be as low as 3% 190-200lm/w, Energy Saving over 50%
- Streamlined unibody structure Superlative surface treatment Ip65 Waterproof

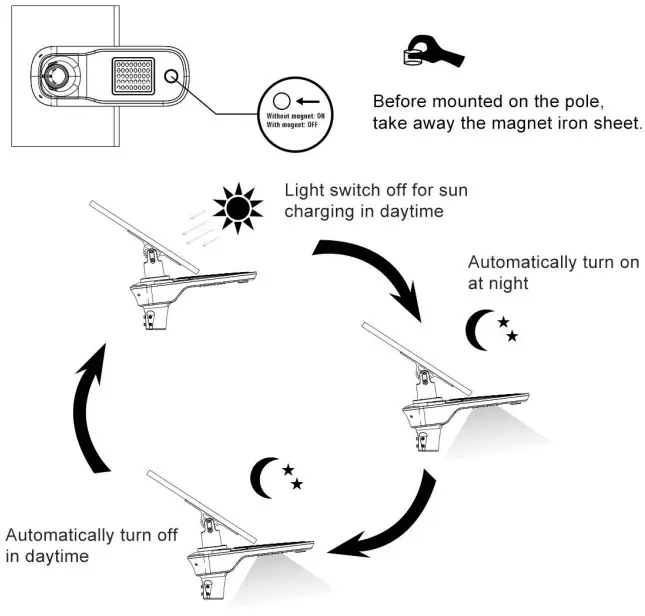

Operation Instructions
Parameters
| Model | SL-3000 | SL-4000 | SL-5000 | SL-6000 | SL-8000 |
| Li-ion Battery | 18AH | 24AH | 28AH | 36AH | 42AH |
| Solar Panel(High efficiency mono) | 40W | 50W | 65W | 80W | 100W |
| LED Qty | 40pcs | 40pcs | 40pcs | 40pcs | 40pcs |
| Luminous Flux | 3000lm | 4000lm | 5000lm | 6000lm | 8000lm |
| LED Chip | Bridgelux | ||||
| Solar Charging Time | 9-10 hours by bright sunlight | ||||
| Lighting time | Over 5 nights | ||||
| Install height | 3-4m | 4-5m | 5-6m | 6-7m | 6-7m |
| Sensor Time | 30s(adjustable) | ||||
| Waterproof | Ip65 | ||||
| Material | Die-cast aluminum | ||||
| Size | 62*24*24cm | ||||
| Work temperature | – 25 to 65 | ||||
| Lifetime | ≥50000hours | ||||
| Lighting Mode | Customized(Light control+PIR motion sensor+Remote Control) | ||||

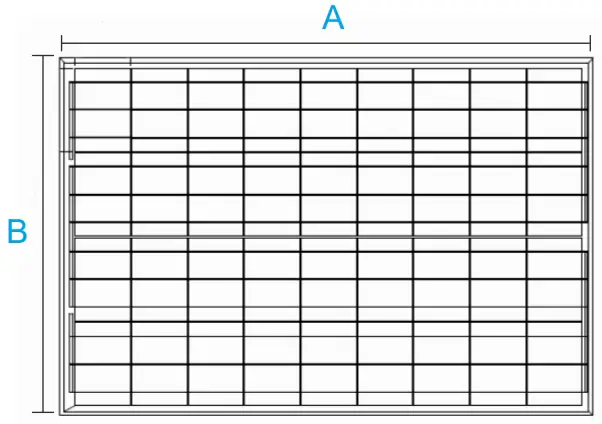

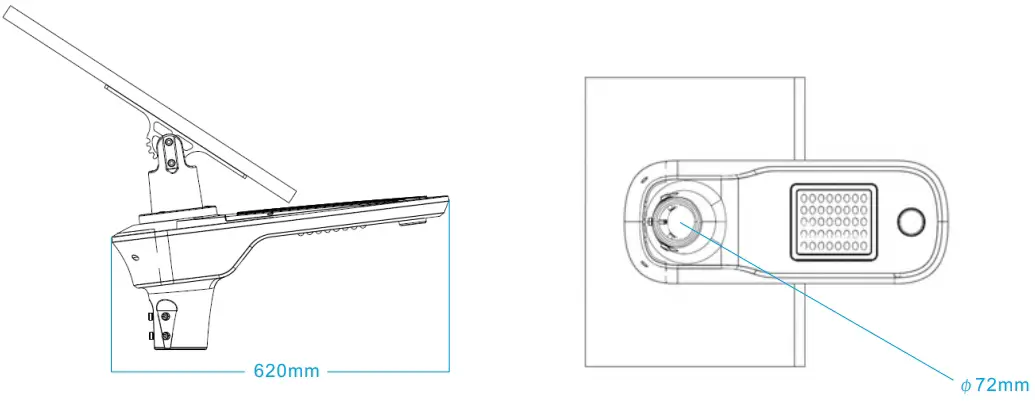

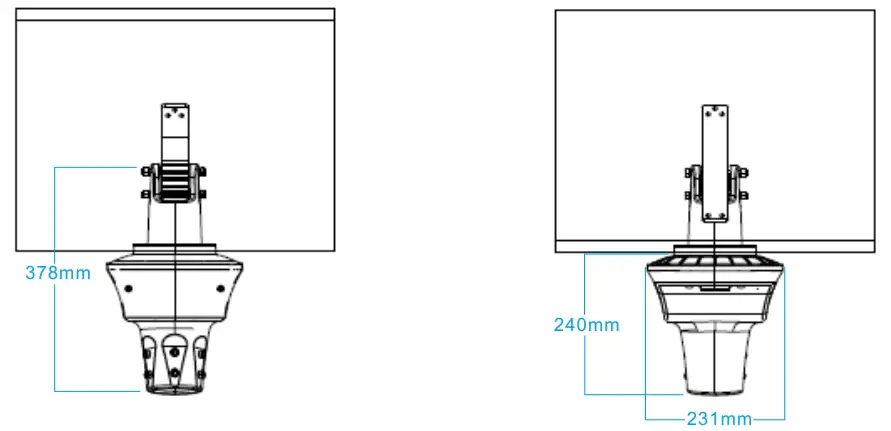

Dimension
| length(cm) | width(cm) | thickness(cm) | |
| 40W | 53 | 52 | 2.5 |
| 50W | 68 | 52 | 2.5 |
| 65W | 85 | 52 | 2.5 |
| 80W | 102 | 52 | 2.5 |
| 100W | 122 | 52 | 2.5 |

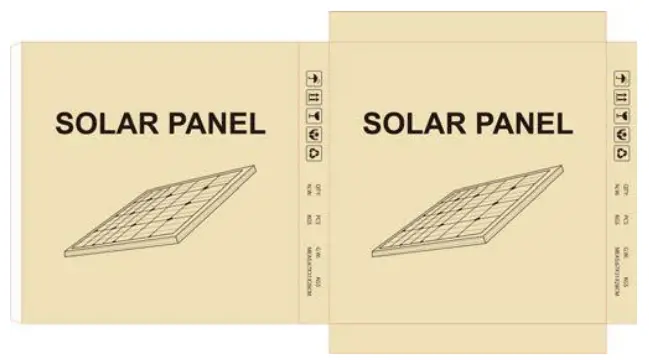

Package
| length(cm) | width(cm) | Height(cm) | G.W/CTNS(KG) | |
| SL-3000 | 67 | 31 | 28 | 11.3 |
| SL-4000 | 67 | 31 | 28 | 11.8 |
| SL-5000 | 67 | 31 | 28 | 12 |
| SL-6000 | 67 | 31 | 28 | 12.3 |
| SL-8000 | 67 | 31 | 28 | 12.5 |
| Power(W) | length(cm) | width(cm) | Height(cm) | G.W/CTNS(KG) | |
| SL-3000 | 40W | 59 | 60 | 6.5 | 4.9 |
| SL-4000 | 50W | 59 | 75 | 6.5 | 5.8 |
| SL-5000 | 65W | 59 | 92 | 6.5 | 7.5 |
| SL-6000 | 80W | 59 | 109 | 6.5 | 9.5 |
| SL-8000 | 100W | 59 | 129 | 6.5 | 11.5 |

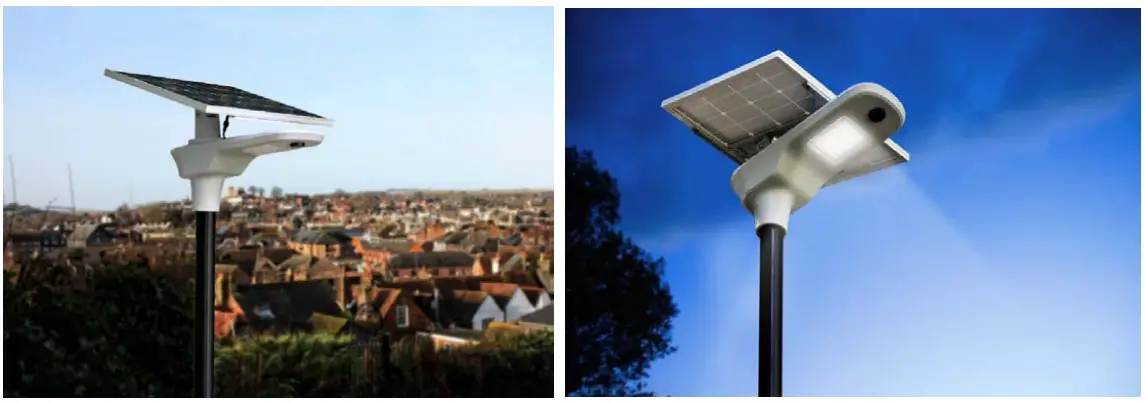

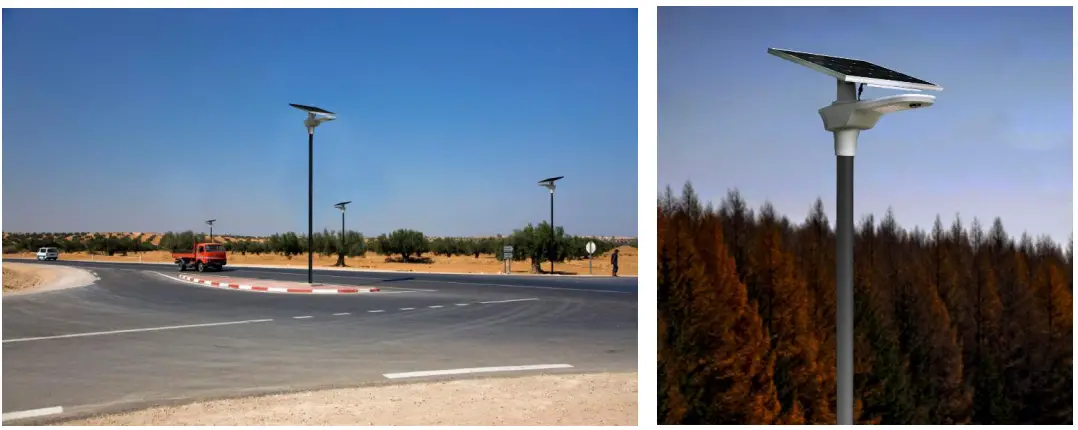

Applications
