Anern AN-SL-X Double Sided Solar Street Light
PRODUCT ADVANTAGE

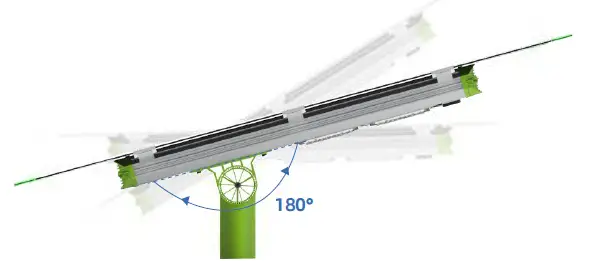

ADJUSTABLE ANGLE BRACKET
- 180 degree arbitrary adjustment, suitable for different installation roads.
INDEPENDENT DESIGN OF DOUBLE-SIDED SOLAR PANEL
- Using high-efficiency double-sided solar cell, can increase power generation by up to 30%.
REMOTE CONTROLLER
- 4 lighting modes for optional.
HIGH POWER
- Up to 200W, specially design for engineering.
SPECIFICATIONS
| Model | AN -SL-X | |||||
| Power | 60W | 80W | 100W | 120W | 150W | 200W |
| LED | 80pcs 3030 | 80pcs 3030 | 120pcs 3030 | 120pcs 3030 | 120pcs 5050 | 120pcs 5050 |
| Luminous Flux | 10000lm | 13000lm | 16700lm | 20000lm | 25000lm | 33000lm |
| LiFePO4 Battery | 12.8V/42AH | 12.8V/57AH | 12.8V/63AH | 12.8V/72AH | 12.8V/90AH | 25.6V/66AH |
| Mono Solar Panel | 18V120W | 18V140W | 18V160W | 18V180W | 18V220W | 36V260W |
| Solar Charging Time | 6-8 hours by bright sunlight | |||||
| Lighting Time In Rainy Day | 10 days | |||||
| Lighting Mode | 12hrs motion sensor control (Bright lighting 30secs when people move through the light)+Remote Controller | Time Control | ||||
| PIR | 120°,>8m | |||||
| Material | Aluminium alloy + PMMA | |||||
| IP / IK Class | IP 65 / IK 10 | |||||
| Work Temperature | -25℃ | to 65℃ | ||||
| Install Height | 5-8m | 6-9m | 7-10m | 7-10m | 8-12m | 8-12m |

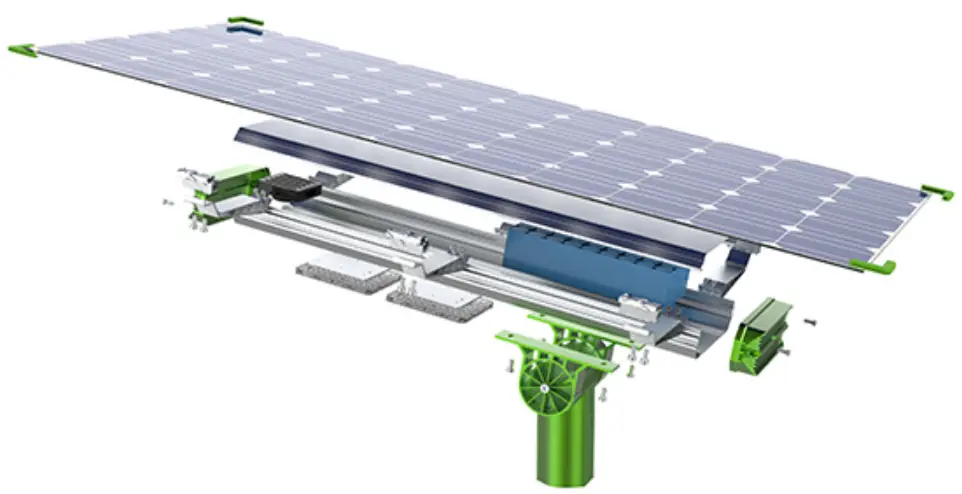

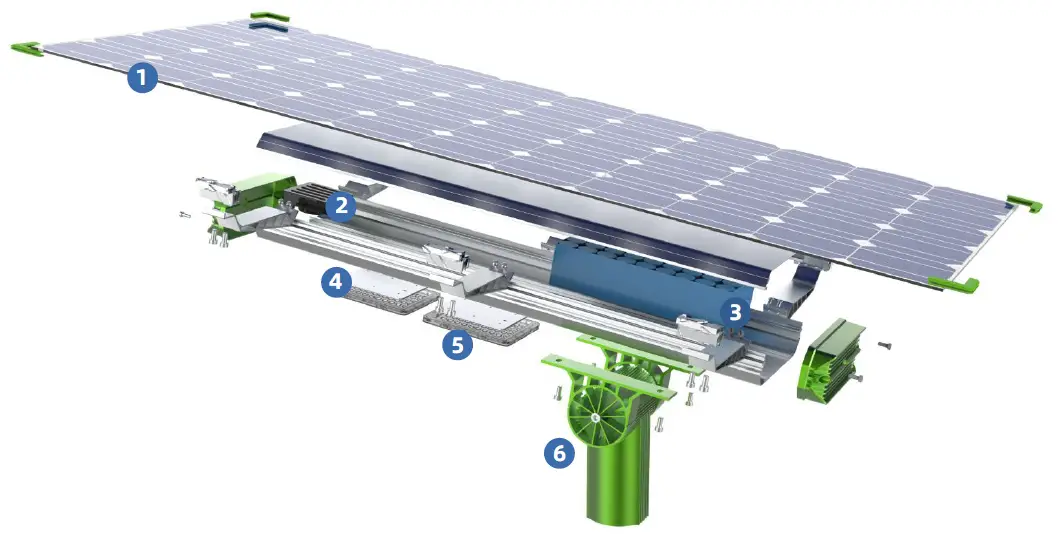

EXPLODED VIEW
- Double-sided Solar Panel
- Control Module
- LifePo4 Battery
- LED Plate
- Optical LED
- Adjustable Bracket

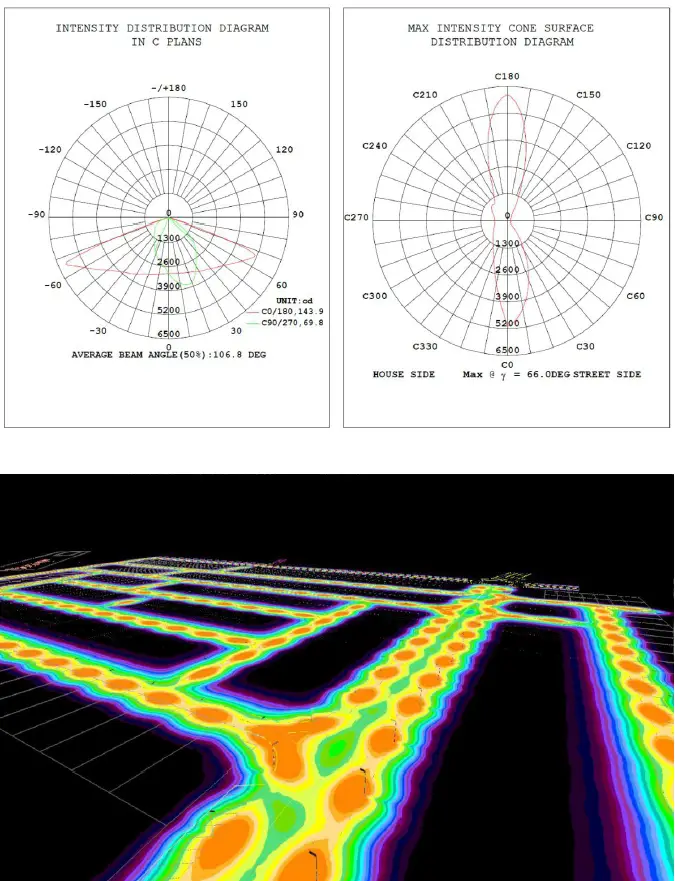

OPTICAL FEATURE
DIMENSION FIGURE
| Item No. | Solar panel size | Lamp Size |
| AN-SL-X-60W | 1070*517mm | 970*236*85mm |
| AN-SL-X-80W | 1280*517mm | 970*236*85mm |
| AN-SL-X-100W | 1140*675mm | 970*236*85mm |
| AN-SL-X-120W | 1260*675mm | 970*236*85mm |
| AN-SL-X-150W | 1560*675mm | 1000*236*85mm |
| AN-SL-X-200W | 1980*675mm | 1000*236*85mm |

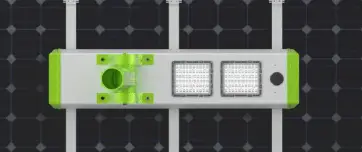

PRODUCT DETAIL

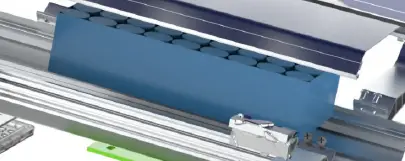

LifePo4 Battery
- Brand new and big capacity
Double-sided solar panel
- 30% increase in power generation
Bracket
- 180° adjustable

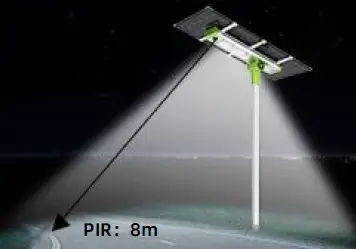

PIR sensor
- More than 8m sensing distance
