Solar Lighting DiRECt SLDMP008-610-PIR Residential Multi-Purpose Light

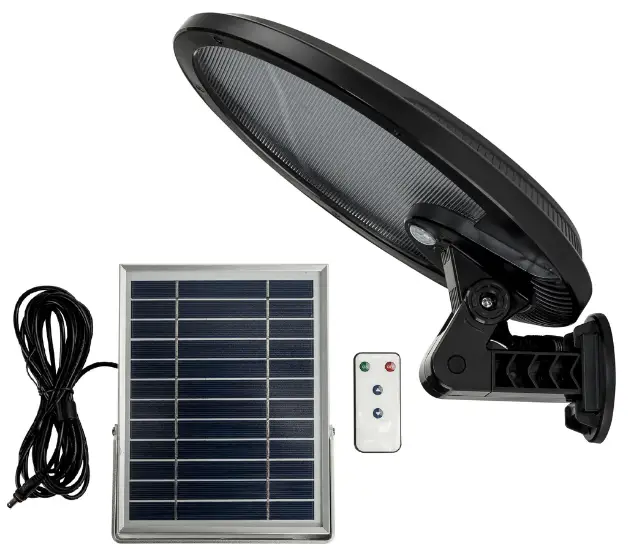

PACKAGE CONTENTS
- 1 x Light Fitting
- 1 x Solar Panel
- 1 x Wall Mount & Bracket 1 x Pack of Screws
- 1 x Remote
FEATURES
- Remote controlled sensor modes
- Sensor Triggered Piezoelectric alarm
- 6-8 hours Operation per day
- Pyro-electric Infrared Sensor
INSTALLATION METHOD
- Remove contents from packaging

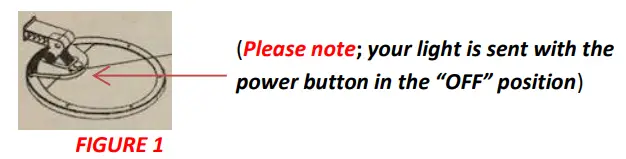

- Refer to FIGURE 1 below for the location of your concealed on/off power button. To activate the light use the supplied pin and press & hold for 2 seconds to turn “ON/OFF”
ASSEMBLY & INSTALLATION
Light Fitting – With the supplied screws, fix the wall mount to the wall. Connect light fitting to the bracket & connect to the wall mount by sliding into the back of the bracket
Solar Panel – Using the supplied screws, fasten your solar panel to the wall (Note; make sure the length from the light fitting is within 3m so the cable can reach). Place in a location that receives maximum direct sunlight throughout the day
IMPORTANT NOTES
- Please ensure you place your solar panel in a location where it can achieve a minimum of 6HRS DIRECT SUNLIGHT
- Be aware that on overcast/cloudy days, the solar panel will still charge. However, not a s efficiently as a sunny day, so the battery may not reach full cap acity. Therefore, your light may turn off earlier than specified
- It’s best not to install the fitting under a street light, porch light or similar as this may stop the automatic day-night sensor triggering and result in your lights not turning on
TROUBLESHOOTING
| Phenomenon | Cause | Inspection Method | Solution |
| Switch | |||
| hasn’t been turned | Determine what position the switch is in | Turn the switch on | |
| Light won’t | on | ||
| turn on | Period of rainy or | Charge the light | |
| Battery | cloudy weather or | in direct | |
| has run | installation site | sunlight for 1-2 | |
| flat | doesn’t provide | days then check | |
| enough direct sunlight | again | ||
| 1. Charge the | |||
| 1. Bad installation site | battery in direct | ||
| for the solar panel | sunlight for 1-2 | ||
| Low | 2. Dust or leaves are | days with the | |
| The light only | Battery | covering the panel | switch off, then |
| stays on for a | 3. Long period of | check again | |
| short amount | overcast weather | 2. Clean the | |
| of time | solar panel | ||
| 1. Access the light and | Contact SLD | ||
| Battery | & replace battery | Customer | |
| Failure | 2. Battery has | Service to buy | |
| matured | new batteries |

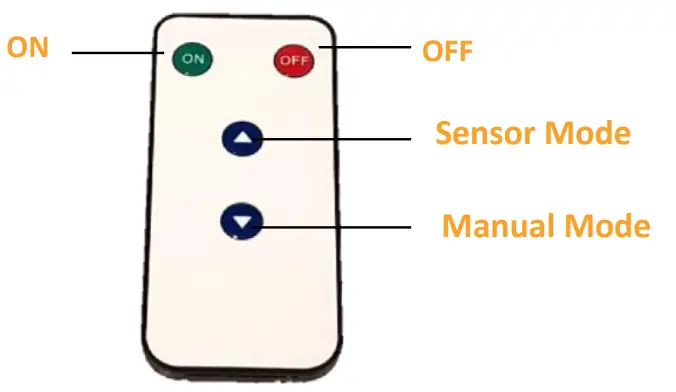

UNDERSTANDING YOUR REMOTE
- Press once to switch light “ON”
Once the alarm has beeped once, this is now in Sensor mode. A dull light will be emitted when no movement is detected. Once the sensor is triggered the light turns to 100% brightness for approximately 20 seconds - Press once to switch light completely “OFF”
- Press twice to switch the alarm feature “ON”
Alarm will beep twice & take approximately 20 seconds to set, once set you will
hear a long beep to confirm. Light will operate as per the previous option, however once the sensor is triggered both the brighter lights & alarm will operate together for approximately 20 seconds - Press once to switch the alarm feature “OFF”
Customer Service Numbe r: 1300 135 911
