HIGH-QUALITY SOLAR STREET LIGHT
USER MANUAL
ATTENTION
Please read the following instructions carefully to ensure that the mounting operation will be carried out in the right way . These instructions should be properly preserved for future reference.
Pre-Installation
Application.
This waterproof solar street light mainly used for lighting of outdoor construction, courtyards, parks, plazas, trunk roads, parking lots, farms, terminals, enterprises and institutions etc…the places where need outdoor lighting and with enough sunshine.
Parameters

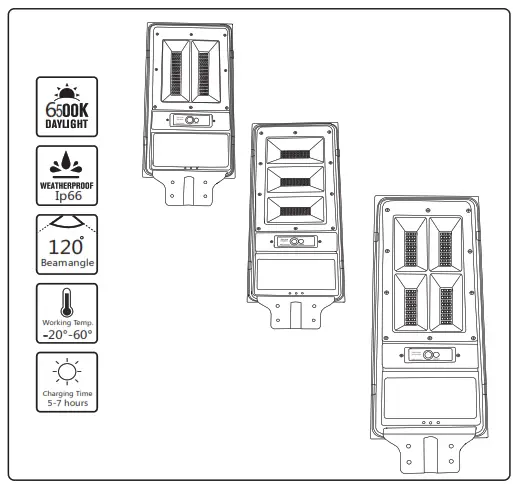

| Model | ZS-H040 | ZS-11060 | ZS-11080 |
| Solar panel | 6V9W Polycrystalline Silicon | 6V15W Polycrystalline Silicon | 6V20W Polycrystalline Silicon |
| Battery | 3.2V PAH BYD LiFePO4 battery | 3.2V 20AH BYD LiFePO4 battery | 3.2V 25AH BYD LiFePO4 battery |
| LED QTY | 80Pcs | 120Pcs | 160Pcs |
| Lumens | 600 LM | 800 LM | 1000 LM |
| Chip | Epistar | Epistar | Epistar |
| Control mode | Light control+remote control | ||
| CCT / CRI | 6500-7500K / Ra :=75 | ||
| Beam angle | 120 – | ||
| Working time | 10 12 Hs | ||
| Charge time(full sunlight) | 5-6 Hs | ||
| Working temp. | t -20:-60C | ||
| Waterproof | Ip66 | ||
| Life-span | 1.-r 50000h | ||
| Product size | 460’215’50mm | 575’215’50mm | 575’215’50mm |
Installation height
| Installation Height(m) | 40W: 2.5-4m |
| 60W:2.5-6m | |
| 80W:3.5-8m |
Advantage
- Light control and remote control with radar sensor system;
- Wireless application–Combined solar panel, controller, battery and LED lights into all in one;
- Smart remote control– light control, time control;
- BYD LifePO4 battery with deep discharging for 95-98%, longer lifetime.
- No need cables, No electricity, Energy-saving,Long lifetime, Easy installation
Radar sensor

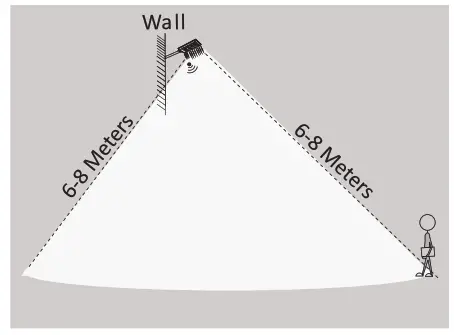

Light on when night, light off when daytime. No people lighting about 30%, increasing to 100% when detect movement of people.
Package Contents

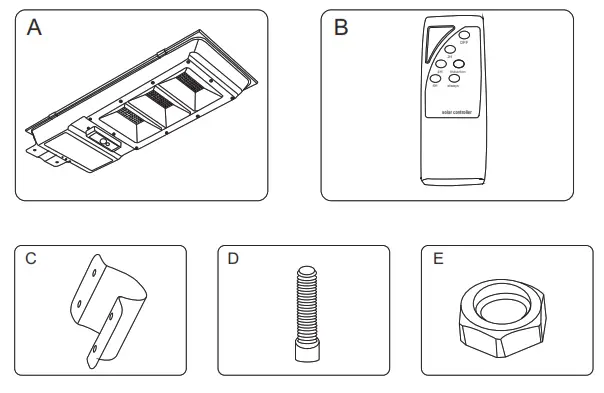

Part | Description | Quantity |
| A | Solar street light | 1 |
| B | Remote controller | 1 |
| C | Street light arm cover | 1 |
| D | Street light arm cover’s screw (2.5CM Length) | 4 |
| E | Nut | 4 |
Installation

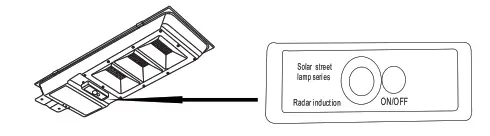

1. Turn on the switch “ON/OFF” button.
2. Cover the solar panel with paper sheet or book, check whether the light is on, If light on means the light fixture is good.
NOTE: Once the solar panel detect the lighting, it will enter charging status the green light which is on the right side of the “ON/OFF” button will be on.
3. Determining the mounting location NOTE: Solar panels should be exposed to direct sunlight all day without blocking buildings or trees, so as to ensure the longest exposure time.

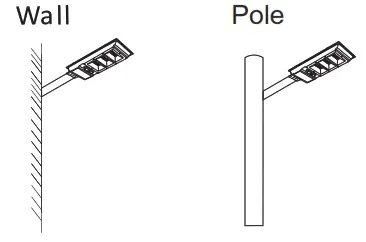

(1) Determine the mounting location – wall or pole or other buildings.
(2) Position the solar street light in the general direction of the desired light coverage.

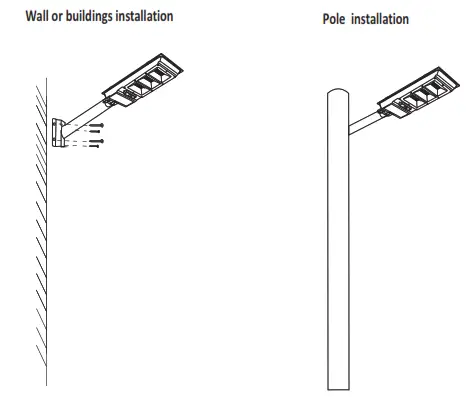

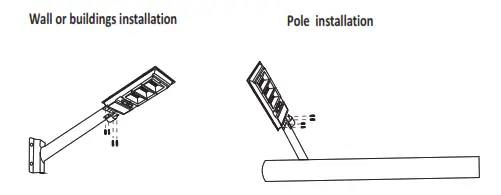

4. Fix the light fixture on the pole with screws.
5. Installing the pole and light fixture on the wall or buildings with screws.
6. Remote controller instructions:
- Time control (2H): Working for 2 hours per day, light on when night, light off after 2 hours;
- Time control (4H): Working for 4 hours per day, light on when night, light off after 4 hours;
- Time control (6H): Working for 6 hours per day, light on when night, light off after 6 hours;
- Sensor control (Induction): No people lighting about 30%, increasing to 100% when detect movement of people.
- Always mode: Normal lighting mode, Light on when night, light off when daytime.
- OFF mode: Turn on/off (just can control while discharging state).
Notice
- Confirm that the appliance has not been damaged in transit.
- Installation of the product should only be performed by a specialist, in compliance with the safety regulations in force.
- Keep radiation range free of any surface or obstacle.
- Don’t discard with communal waste. At the end of its life, dispose of product at a facility specializing in the collection of electronic waste. If you have any question or remark in connection with this. Contact local waste management organization. By doing so, you will protect the environment as well as the health of others and yourself.
