BNT 800W 2PACK Solar Street Light User Manual

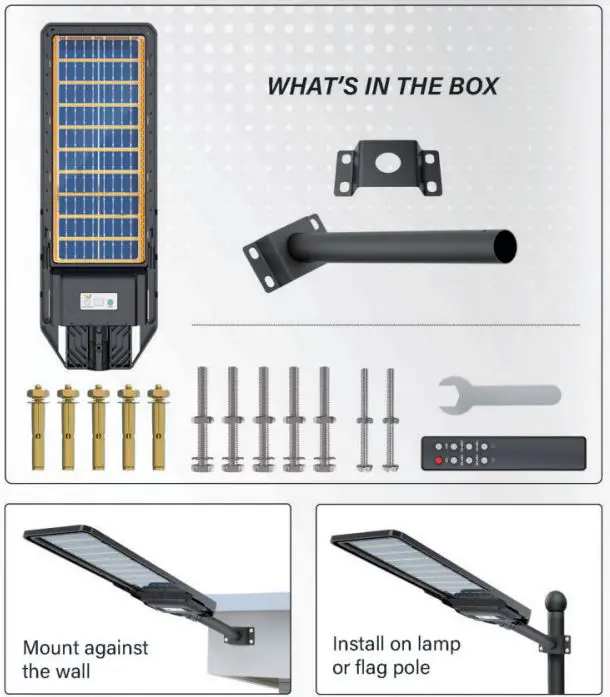

THE CONTENTS OF THE PACKAGE
PLEASE READ THESE INSTRUCTIONS CAREFULLY
- Before installing the light, please connect the solar panel with the light’s link wire, and use the remote control to test the light.
If you need to inspect the lamp, first place the lamp in a place with sufficient light. Cover the solar panel with an opaque Materia l, so the lamp will turn on. - Once the test is normal, place the solar panel on the bracket, then install it on the supporting arm. Expand the arm, then fix the expansion screw to the wall or pole.

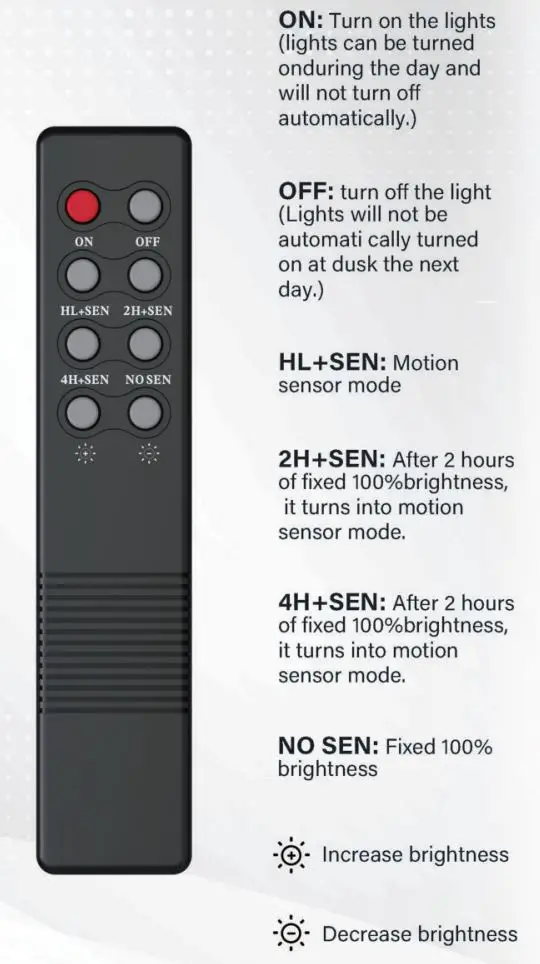

- If you need to set the timer, please use the remote control to set it at night when the light is on.(The street light has a memory program, just set it once.)
- Clean the cover and solar panel regularly to keep good light transmittance of lamps. Be careful and do not clean the lamp with water or corrosive solutions. Use a dry cloth or rag instead.
- Keep the light away from corrosive chemicals. The light should be charged and discharged at least once a month.
INSTALLATION STEPS

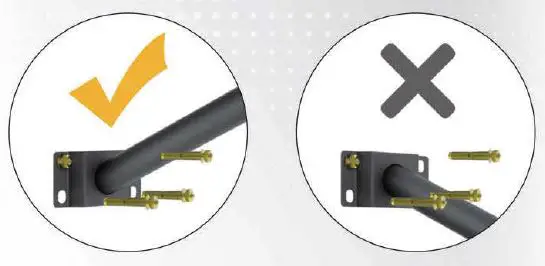

- Make sure that the mounting angle of the bracket matches the position of the panel.

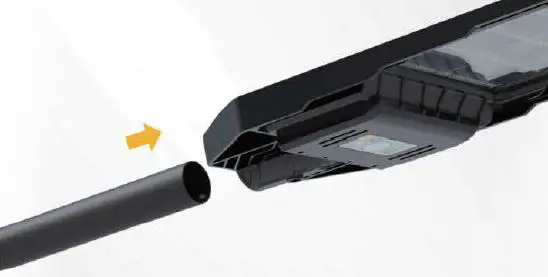

- Align the support hole with the lamp body hole.

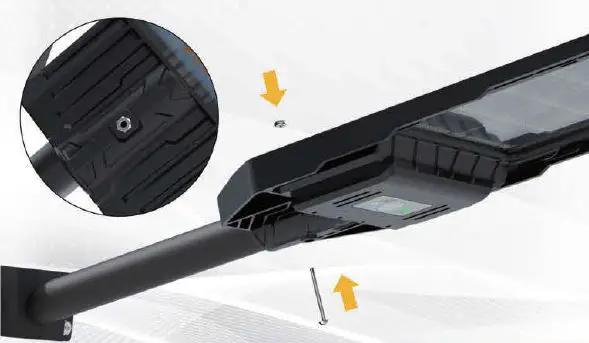

- Put in bolts and nuts to lock.

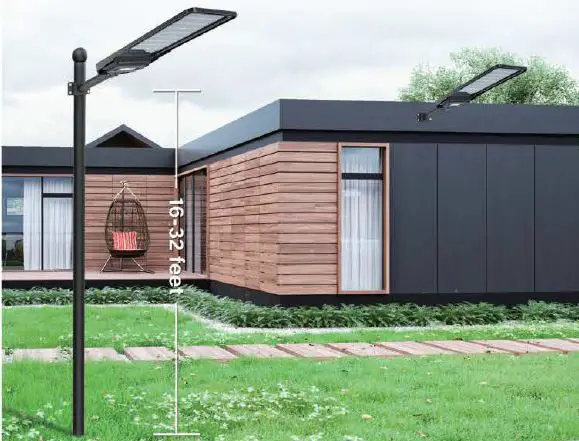

RECOMMENDED INSTALLATION HEIGHT
The higher the solar street light is mounted, the lower the light intensity will be off of the ground, but the greater amount of light coverage will be. The recommended installation height is 16-32 feet.
MOTION SENSOR MODE
CONTACT US
1-833-872-6581
Email: [email protected]
