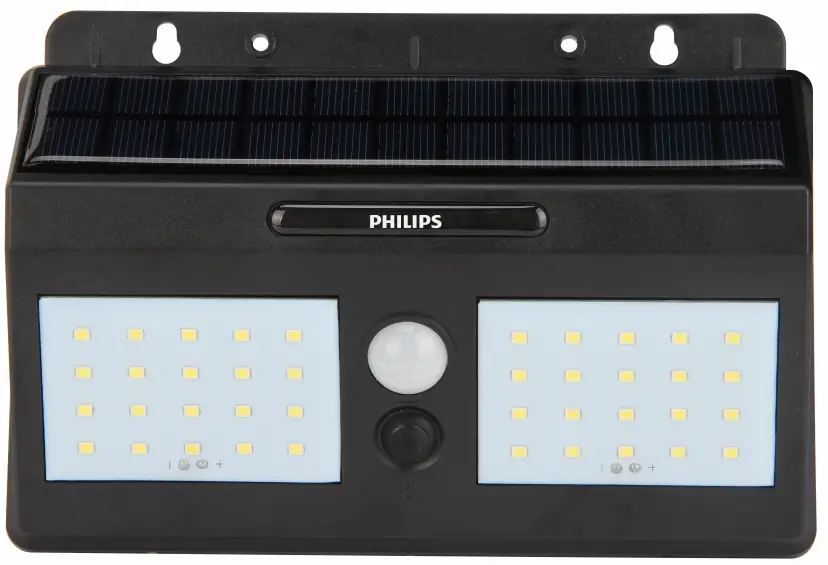

BWS010 LED50 765 Outdoor Solar LED Wall Light
User Manual
Lighting
Outdoor Solar LED Wall light
Essential SmartBright Solar Wall Light
Outdoor solar wall light with inbuilt lithium Ferro phosphate battery, solar panel, inbuilt motion sensor, switch to change modes, and LED lights integrated in ABS plastic housing.
Benefits
- DIY easy installation
- No wiring required
- Suitable for outdoor installation.
- Motion sensor to optimize battery and light requirements.
- Easily configurable according to consumer needs.
Features
- In All-in-one construction, the device can be installed on a wall screw.
- Completely powered by solar energy.
- IP42 rated ABS plastic housing.
- PIR motion sensor to detect motion and optimize battery life.
- A toggle switch on the front to cycle through multiple operational modes.
- LiFePO4 battery included inside the luminaire.
Application
- Garden
- Walkways
- Parking areas
- Architectural Lighting
- Landscape
Warnings and Safety
- This product includes rechargeable batteries which must be adequately charged under sunlight before use.
Essential SmartBright Solar Wall Light

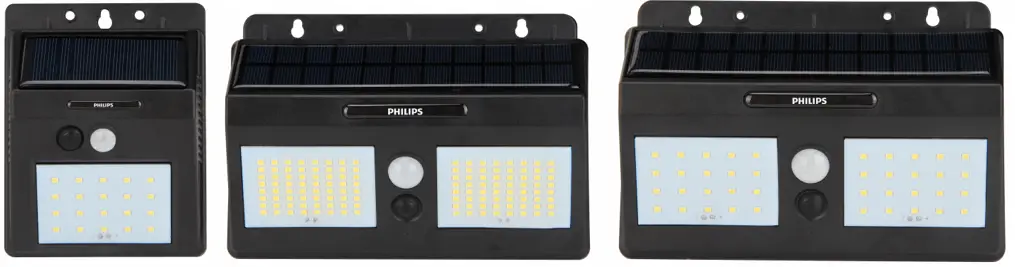

Versions
Application conditions
Ambient temperature range………………0 to +45 °C
Battery location…………………..Inside luminaire
Solar dimming profile…………………As per mode switch
Approval and application
Ingress protection code……………………………. IP 42
Controls and dimming
Dimmable………………………….Yes
Configurability…………………………..Configurable
Operating and electrical |
Battery type…………………….Lithium-ion – NMC
Battery voltage………………………… 3.7 V
Charge controller type……………………………….PWM
Panel type…………………………………………………Polycrystalline
Initial performance (IEC compliant)
Init. Corr. Colour Temperature……………………..6500 K
Init. Color rendering index……………………….. >70
Mechanical and housing
Overall length……………….. 125 mm
Operating and electrical
| Order Code | Full Product Name | Battery ampere-hour | Panel peak wattage |
| 64903699 | BWS010 LED50/765 | 0.8 Ah | 0.5 W |
| 64904399 | BWS010 LED100/765 | 1.2 Ah | 0.75 W |
| 64905099 | BWS010 LED300/765 | 2 Ah | 1.3 W |
Mechanical and housing
| Order Code | Full Product Name | Overall height | Overall width |
| 64903699 | BWS010 LED50/765 | 52 mm | 99 mm |
| 64904399 | BWS010 LED100/765 | 54 mm | 178 mm |
| 64905099 | BWS010 LED300/765 | 54 mm | 178 mm |
Essential SmartBright Solar Wall Light
© 2022 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract unless otherwise agreed by Signify. All trademarks are owned by Signify Holding or their respective owners.
www.lighting.philips.com
2022, March 23
– data subject to change
