LUTEC 6943101012 Wall Solar Outdoor Lamp User Manual

Contents hide

1 WHAT,S IN THE BOX

2 PARTS TOOLS

3 Technical Data

4 Safety Instructions

10 Documents / Resources

10.1 References

11 Related Posts

WHAT,S IN THE BOX

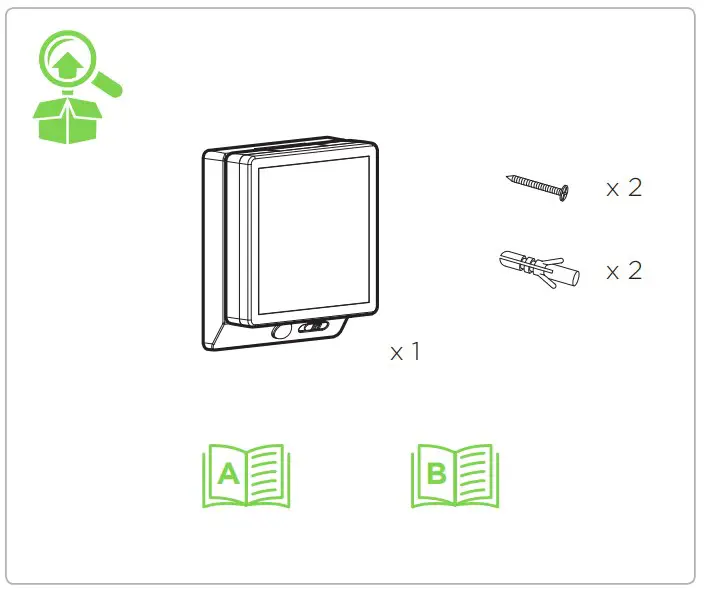

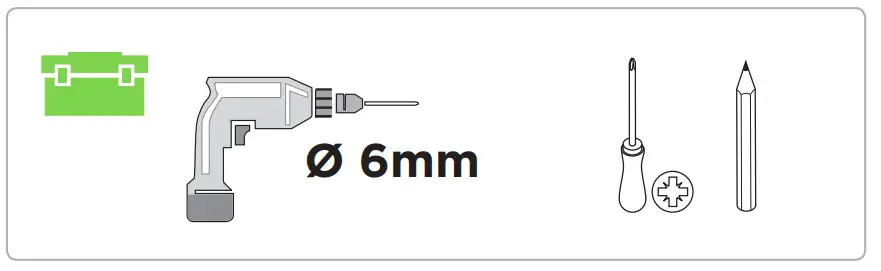

PARTS TOOLS

Technical Data

LED (8W)

Bulb Type: The light source of this luminaire is not replaceable; when the light source reached its end of life the whole luminaire shall be replaced.

Battery: 1 x 3.7 V 1500 mAh Li-ion battery. Item nr: 9759808000

:Conformity with all relevant EC Directive requirements

IP44: Splash-proof

:Class III product – designed to be supplied from a SELV (Separated or Safety Extra-Low Voltage) power source

:Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.

Safety Instructions

You can consult the Safety Instructions on our website: www.lutec.com/service/safetyinstructions
please scan the QR code underneath. For your convenience you can find these Safety Instructions also in the box.

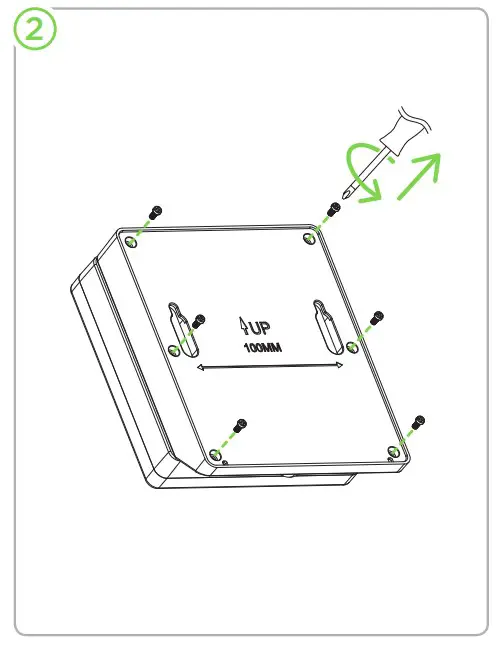

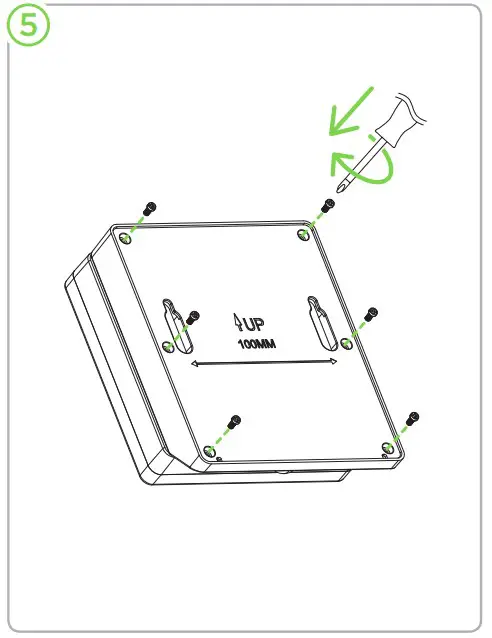

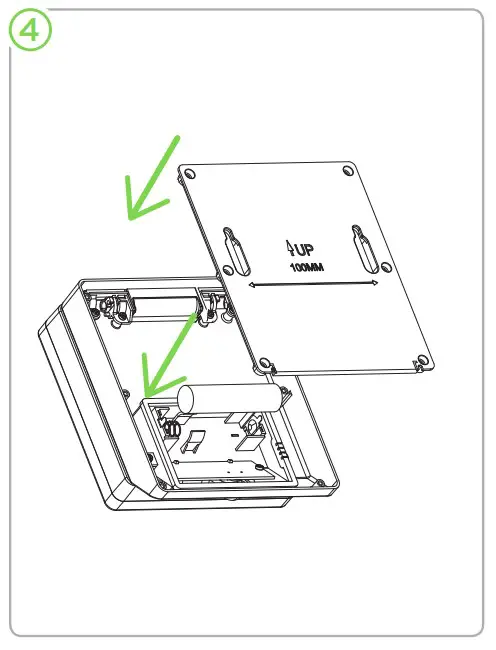

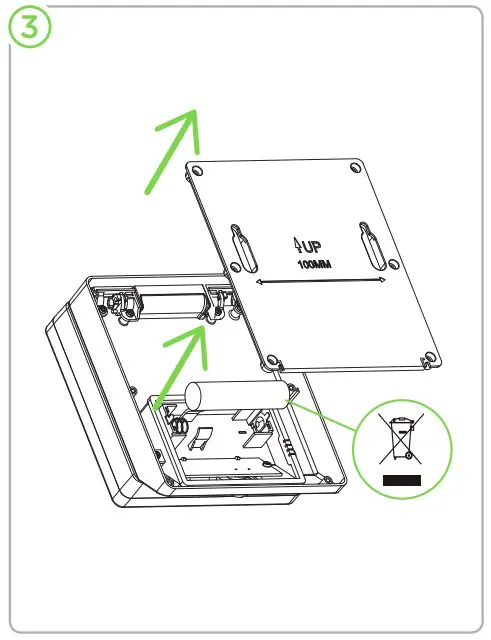

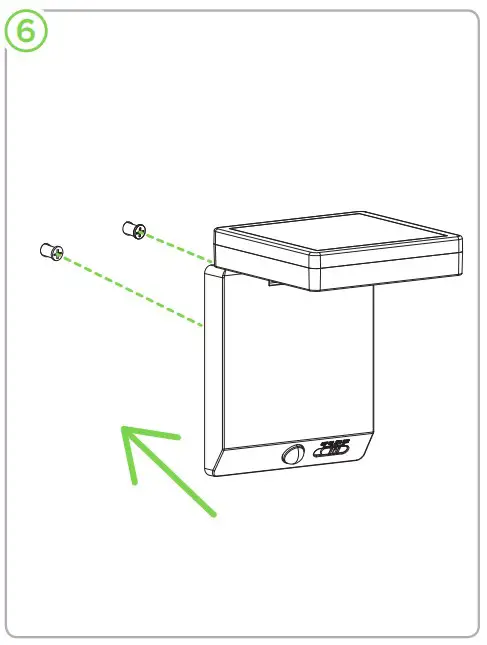

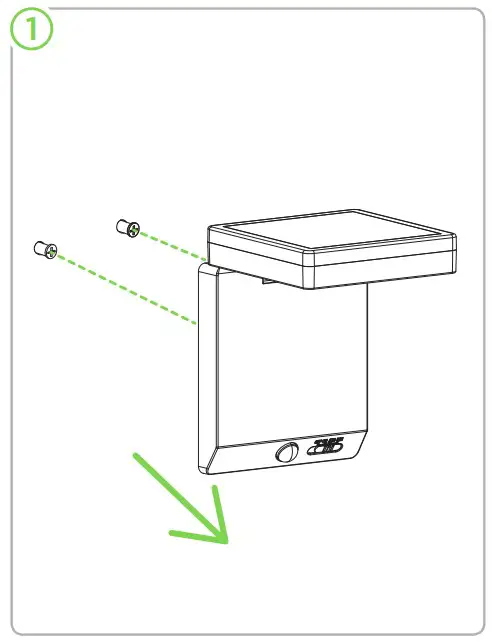

The battery must be removed from the luminaire before it is scrapped. The battery is to be disposed of safely.
The operating time depends on the charging performance in daytime. This would be aected by environment e.g. weather condition and location.
Keep batteries out of the reach of children. Do not leave the batteries lying around.
There is a risk of children or animals swallowing them. Consult a doctor immediately if a battery is swallowed.
Use only rechargeable batteries of the recommended type. Other rechargeable or single-use batteries could explode during charging.
Do not allow rechargeable batteries to short-circuit. Otherwise the rechargeable batteries may overheat, become a fire hazard or explode.
Never throw rechargeable batteries into fire or water.

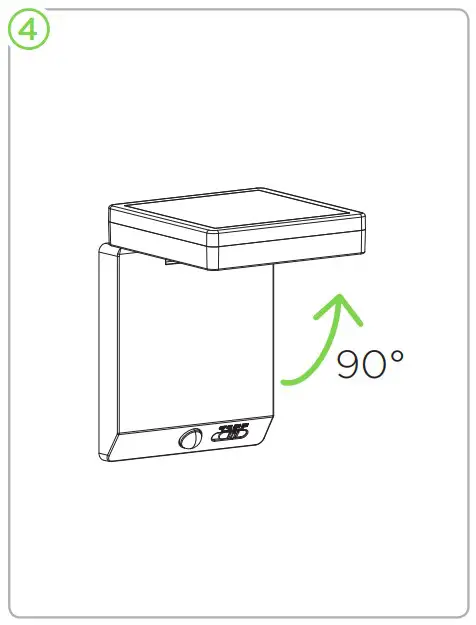

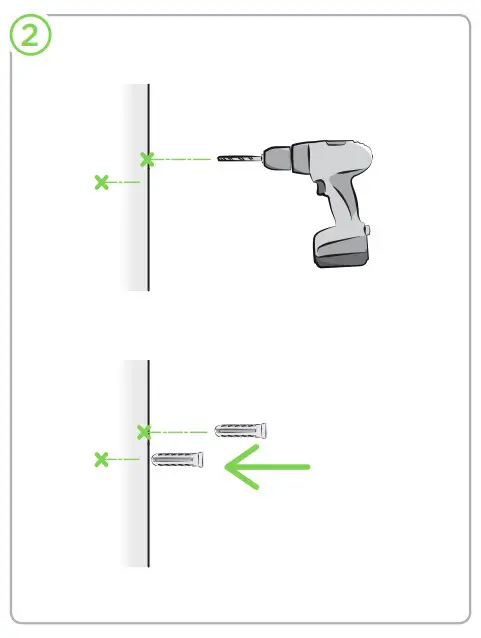

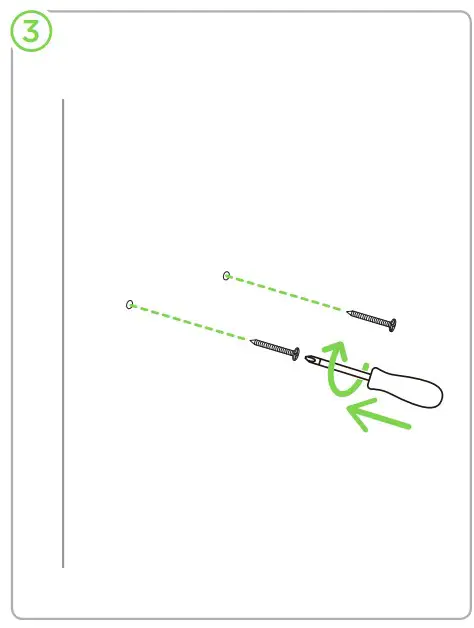

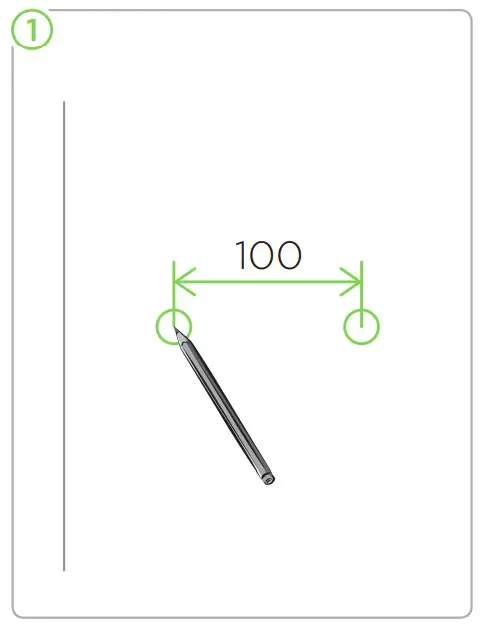

Installation

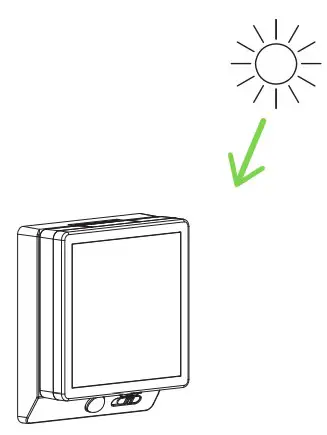

First Use

Function

At dusk, the motion sensor becomes active.
Any movement within the detection reach will switch-on the light. The light

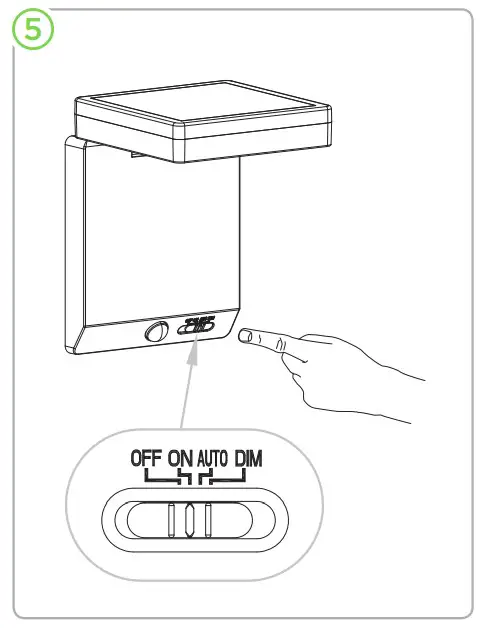

Brightness

Max.75times: AUTO
Max.75times: DIM
10h: ON
OFF

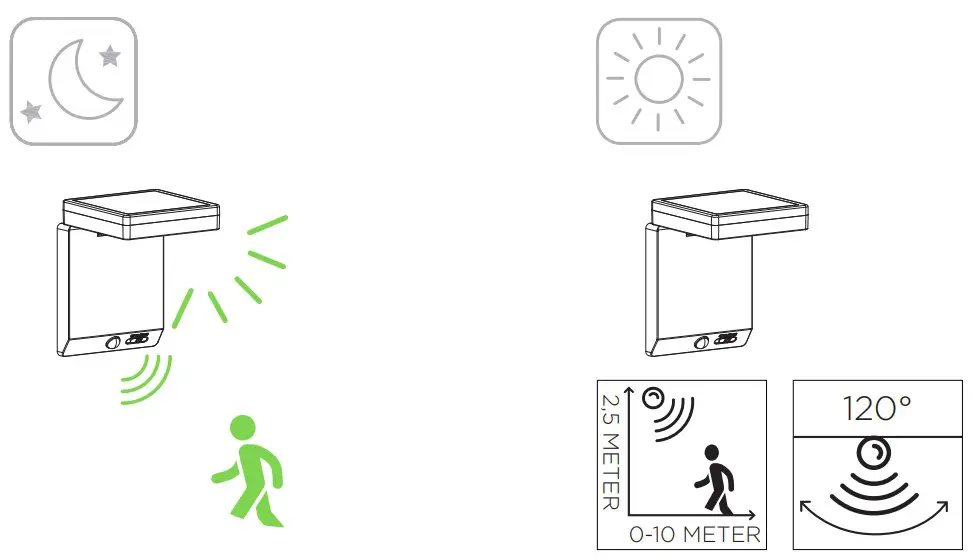

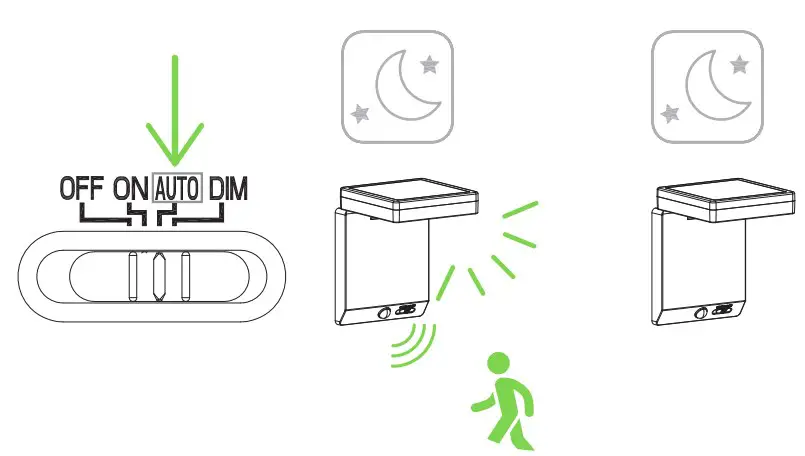

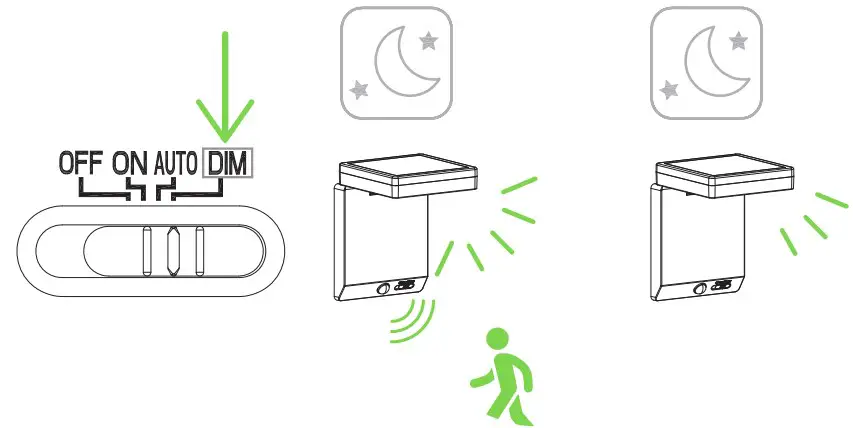

Function

At dusk, the motion sensor becomes active.
Any movement within the detection reach will switch-on the light. The light stays on for 30 sec. At dawn, the motion sensor will deactivate.
