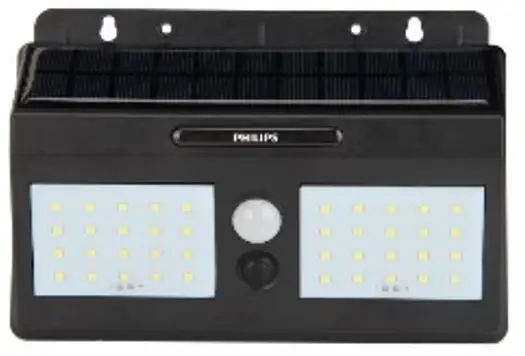

BWS010 Smart Bright Solar Wall Light
User Guide
BWS010 Smart Bright Solar Wall Light
| Type Number | Flux(Im) | Battery type | Battery parameter | PV power | PV voltage | CCT | Ta |
| BWS010 LED300/765 | 3001m | Ternary lithium | 3.7V/2.0Ah | 1.2W | 5.5V | 6500K | 0-45°C |

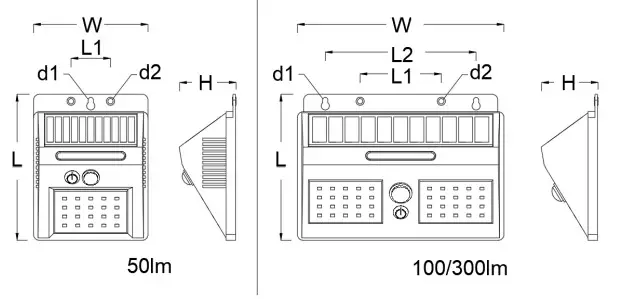

| TYPE | W | L | H |
| 3001m | 178 | 123 | 48 |
| TYPE | L1 | L2 | d1 | d2 |
| 3001m | 70 | 113 | 5. | 5. |
The lamps are installed with M4 screws
Lampu dipasang dengan baut M4
Mode switch: – Toggles through the below 4 modes cyclically.
Mode 1 – 100% light output when motion detected, Lights off when motion not detected
Mode 2 – 100% light output with motion detected, 10% light output when motion not detected
Mode 3 – 10% light output. Motion sensor disabled.
Mode 4 – Always off.
Note: On motion detection, the increase in the light intensity is for 18 seconds.
Application Notes:
- Try to install in a sunny place that is not shaded by trees, building, walls etc so that the Solar panel receive the Sunlight for charging the battery.
- There shall not be any light source over the solar panel at night, as it may interfere with the operations of solar wall light.
- Charge the product under Sunlight for 8 hours before first use.
- This product does not need any external electrical connection. It works 100% on solar energy.
- Auto detect of Sunset is based on light intensity falling on solar panel.
- The battery backup will reduce if the ambient temperature is < 0 degree Celsius.
- The light source and battery inside fixture are not replaceable, replace the product when it reaches end of life.
- The product should not be stored for more than 6 months, it may severely affect the life of the battery.
Slgnlfy (China) Investment Co. Ltd.
Building No. 9. Lane 888 Tianlin Road, Minhang District, Shanghai, China
Postal code: 200233
