BRP110 Smart Bright Solar
Instruction Manual
BRP110 Smart Bright Solar
| Type Number | Flux(Im) | Battery parameter | PV parameter | CCT | Ta |
| BRP110 LED50/757G2 | 5000Im | Li Fe04 /60Ah/3.2V | 35W / 12v | 5700K | 0-50’C |
| BRP110 LED85/757G2 | 8500Im | Li Fe04 /54Ah/6.4V | 55W /14V | 5700K | 0-50°C |
| BRP110 LED120/757G2 | 12000Im | Li Fe04 /72Ah/6.4V | 80W / 13V | 5700K | 0-50°C 0-50°C |
| BRP110LED180/757G2 | 18000Im | Li Fe04 /30Ah/25.6V | 125W / 34.5V | 5700K |

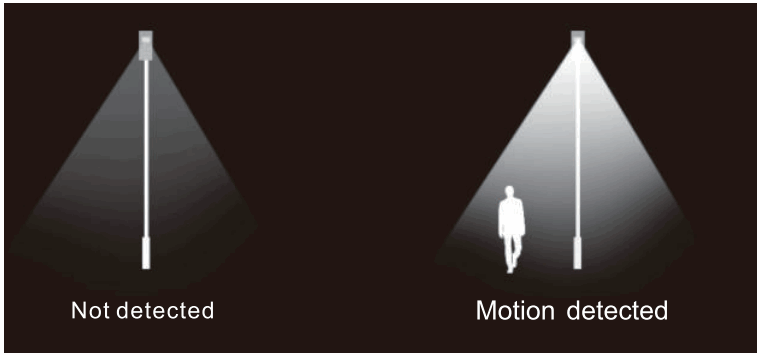

Factory default lighting mode
| Work time | Motion detected | Not detected |
| 2h | 100% | 30% |
| 3h | 60% | 20% |
| 6h | 30% | 10% |
| 1h | 50% | 30% |

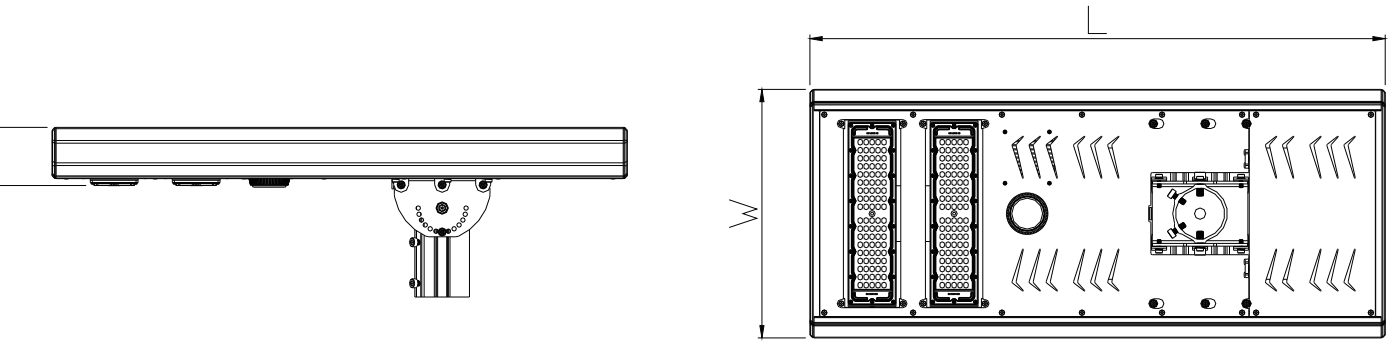

| TYPE | W(mm) | L(mm) | H(mm) |
| 5000Im | 363 | 562 | 85 |
| 8500Im | 363 | 842 | 85 |
| 12000Im | 363 | 1142 | 85 |
| 18000Im | 525 | 1321 | 161 |

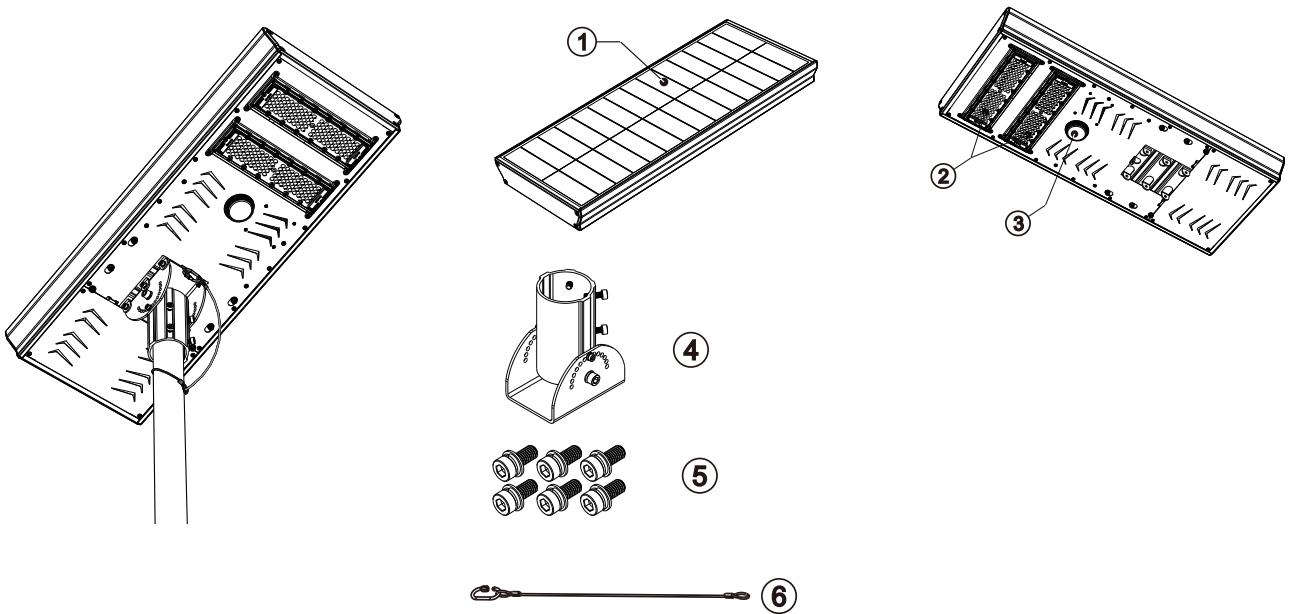

| NO | Name | Description |
| 1 | Solar panel | Converting solar energy into electricity |
| 2 | LED source | Luminous component |
| 3 | Microwave sensor | Detecting object moment |
| 4 | Light arm | Fix the solar panel |
| 5 | Screws (M6x1 6mm) | Fix the light arm |
| 6 | Safety rope | Prevent lamps from falling |

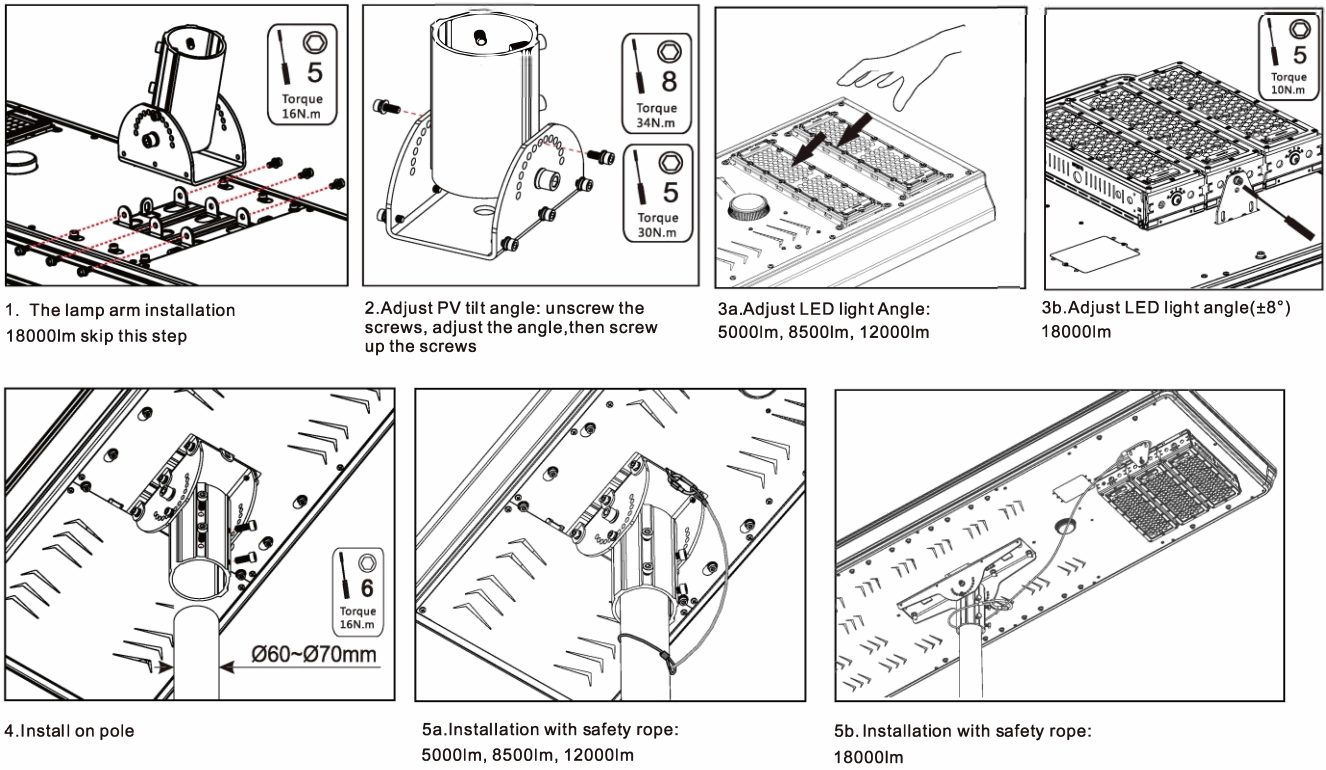

Installation
Note: Luminaire is in sleep mode as factory default setting. It will wake up automatically after 10S charge under sunlight.
Application notes
- Solar panel orientation, solar panel should face south in north hemisphere, face north in south hemisphere.
- Try to install in a sunny place that is not shaded by trees, building, walls etc. so that the Solar panel receive maximum sunlight for charging the battery.
- Product storage temperature:-10-60°C; Charge temperature: 0-45°C; Discharge temperature:-10-60°C .
- This product can withstand a class 14 typhoon, and storms above class 14 may damage to the product.
- The products can be stored up to 6 months. In case it is required to store more than 6 months, it is recommended to re-charge the product in bright daylight.
- Sensor indicator light status description.
| Indicator light | Indicator light status | Indicator light status | Remote control system status |
| Red | On | Normal working | Discharge |
| Flash slowly | Charging | Charging | |
| Flash fastly | System failure | Short circuit/open circuit/over discharge / EBMS over temperature |
Signify Luminaires(Shanghai)Co.,Ltd.
Address: 2nd Floor, Building 1, No. 2555, Hechuan Road, Minhang District, Shanghai
Postal code: 201801
