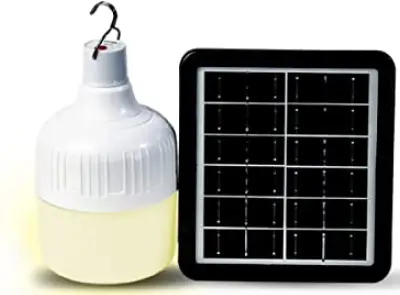

PHILIPS SP010P Essential SmartBright Solar Indoor Suspended

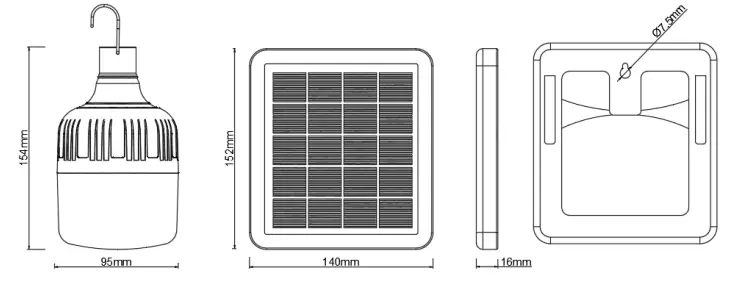

Mounting instruction
| Type Number | Flux(lm) | Battery type | Battery parameter | PV power | PV voltage | CCT | Ta |
| SP010P LED7/765 | 700lm | Ternary lithium | 3.7V/1.5Ah*2 | 2W | 5.5V | 6500K | 0-45°C |
Mode switch
Toggles through the below 5 modes cyclically
- Mode1-Full bright mode, indicatively in 3 Hours on a full battery
- Mode2-Half bright mode, indicatively in 6 Hours on a full battery
- Mode3-Low bright mode, indicatively in 12 Hours on a full battery
- Mode4-SOS fast flashlight output
- Mode5-Light Off
Application Notes
- Please fully charge the product under Sunlight, before first use
- When charging the indicator light is on, when fully charged the indicator light is off
- Try to put solar panel in a sunny place so that the solar panel receive the Sunlight for charging the battery.
- The battery backup will reduce if the ambient temperature is < 0 degree Celsius.
- The light source and battery inside fixture are not replaceable, replace the product when it reaches end of life.
- The product should not be stored for more than 6 months, it may severely affect the life of the battery
PHILIPS
- Slgnlfy (China) Investment Co., Ltd.
- Building No. 9, Lane 888, Tianlin Road, Minhang District, Shanghai, China
- Postal code: 200233
