PHILIPS 7289869 SmartBright Direct Panel G2
The new Philips Smartbright Direct panel offers exceptional value. It is perfect for your everyday ceiling lighting installations. It is available in two standard sizes and two different CCT options to suit your needs.
SmartBright Direct Panel G2
The most affordable LED panel delivering comfortable light with excellent uniformity. Slimmer than its predecessor, it is durable, energy-efficient and comes with a 3-year warranty
SmartBright Direct Panel G2
Benefits
- 30,000 hrs, 3-year warranty
- Flicker-Free – Ripple ≤ 5%
- CRI 80
Features
- 30,000 hrs, 3-year warranty

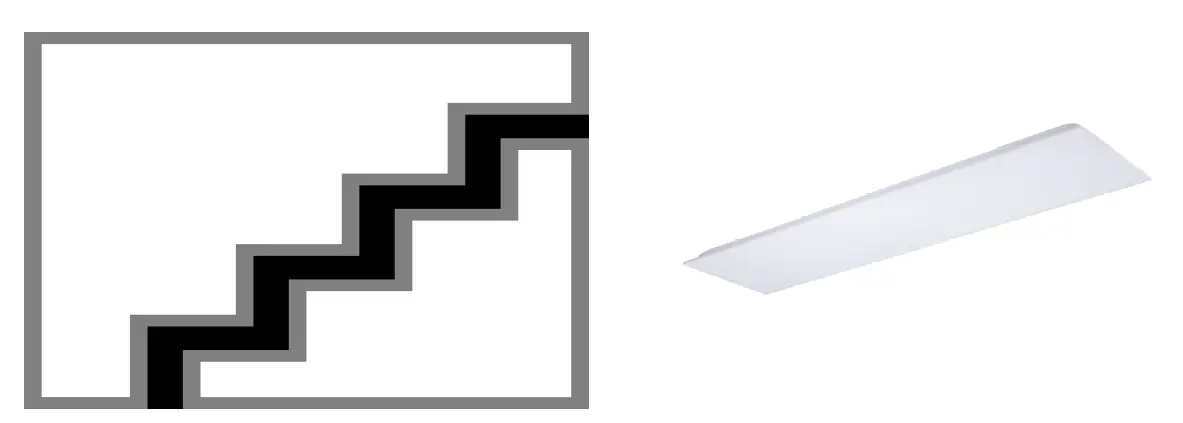

- Suitable for different mounting applications: Recessed, PCV, Suspension
- CRI 80
- SDCM ≤5
- Surge protection: 1 KV/0.5 KV
Application
- Offices
- Hospitality
- Fashion
Versions
| – | |
| Driver failure rate at 5,000 hours | 0.0006 % |
| Application conditions | |
| Ambient temperature range | -10 to +40 °C |
| Maximum dimming level | Not applicable |
| Approval and application | |
| Mech. impact protection code | IK02 |
| Ingress protection code | IP20 |
| Controls and dimming | |
| Dimmable | No |
| General information | |
| Beam angle of light source | 120 ° |
| CE mark | CE mark |
| Protection class IEC | Safety class II (II) |
| Driver included | Yes |
| ENEC mark | – |
| Flammability mark | NO |
| Glow-wire test | 650/30 |
| Light source replaceable | No |
| Number of gear units | 1 unit |
| Initial performance (IEC compliant) | |
| Initial LED luminaire efficacy | 88 lm/W |
| Initial luminous flux | 3200 lm |
| Luminous flux tolerance | +/-10% |
| Initial input power | 36 W |
| Mechanical and housing | |
| Colour | White |
| Over time performance (IEC compliant) Median useful life L80B50 22000 h Median useful life L90B50 10000 h | |
| Operating and electrical | |||
| Order Code | Full Product Name | Input Voltage | |
| 911401807880 | RC048B LED32S/840 PSU W60L60 NOC GM | 230 to 240 V | |
| 911401807980 | RC048B LED32S/865 PSU W60L60 NOC GM | 230 to 240 V | |
| 911401837680 | RC048B LED32S/840 PSU W30L120 NOC GM | 220 to 240 V | |
| 911401837780 | RC048B LED32S/865 PSU W30L120 NOC GM | 220 to 240 V | |
General information
| General information | |||||||
| Order Code Full Product Name | Optical cover/lens type | Optic type | Order Code | Full Product Name | Optical cover/lens type | Optic type | |
| 911401807880 RC048B LED32S/840 PSU W60L60 NOC GM | Polystyrene bowl/ cover prismatic | – | 911401837680 | RC048B LED32S/840 PSU W30L120 NOC GM | O | 120 | |
| 911401807980 RC048B LED32S/865 PSU W60L60 NOC GM | Polystyrene bowl/ cover prismatic | – | 911401837780 | RC048B LED32S/865 PSU W30L120 NOC GM | O | 120 | |
Initial performance (IEC compliant)
| Initial | Init. Corr. Colour | Init. Colour rendering | Initial | Init. Corr. Colour | Init. Colour rendering | ||
| Order Code Full Product Name | chromaticity | Temperature | index | Order Code Full Product Name chromaticity | Temperature | index | |
| 911401807880 RC048B LED32S/840 PSU | 0.382;0.38 | 4000 K | >80 | 911401837680 RC048B (0.382;0.38) LED32S/840 PSU SDCM≤5 | 4000 K | ≥80 | |
| W60L60 NOC GM | W30L120 NOC GM | ||||||
| 911401807980 RC048B LED32S/865 PSU | 0.312;0.328 | 6500 K | >80 | 911401837780 RC048B (0.312;0.328) LED32S/865 PSU SDCM≤5 | 6500 K | ≥80 | |
| W60L60 NOC GM | W30L120 NOC GM |
© 2022 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract, unless otherwise agreed by Signify. All trademarks are owned by Signify Holding or their respective owners.
www.lighting.philips.com
2022, August 28 – data subject to change
