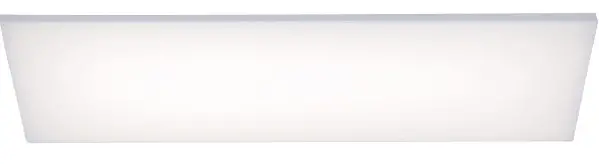

Paul Neuhaus 340634 Pure-Lines Ceiling Light LED

Paul-Neuhaus-340634-Pure-Lines-Ceiling-Light-LED-PRODUCT

This product contains a light source of energy efficiency class <E>.

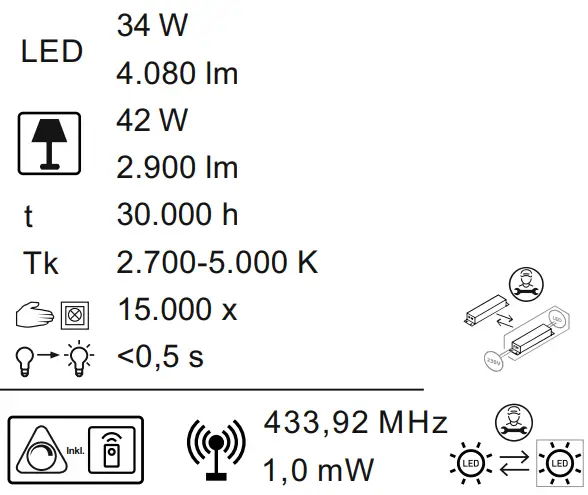

FEATURE

Paul-Neuhaus-340634-Pure-Lines-Ceiling-Light-LED-FIG1

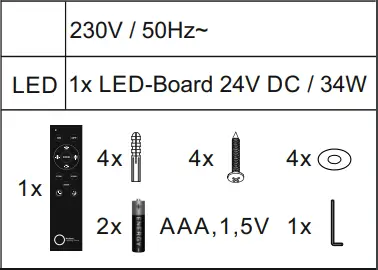

TOOL REQUIRED

Paul-Neuhaus-340634-Pure-Lines-Ceiling-Light-LED-FIG2

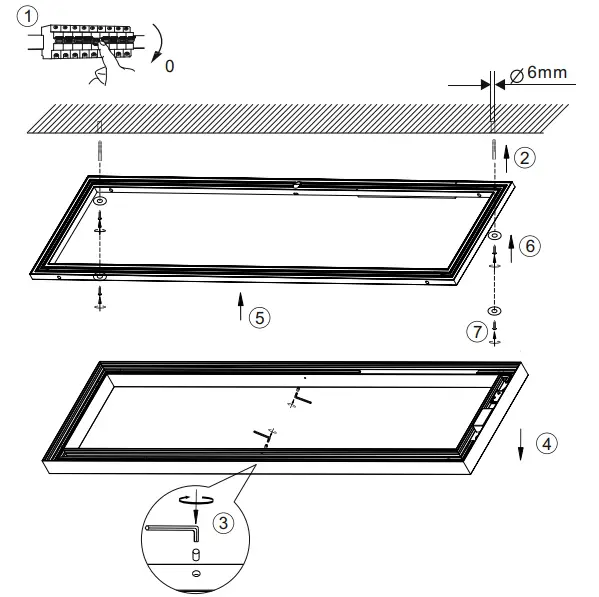

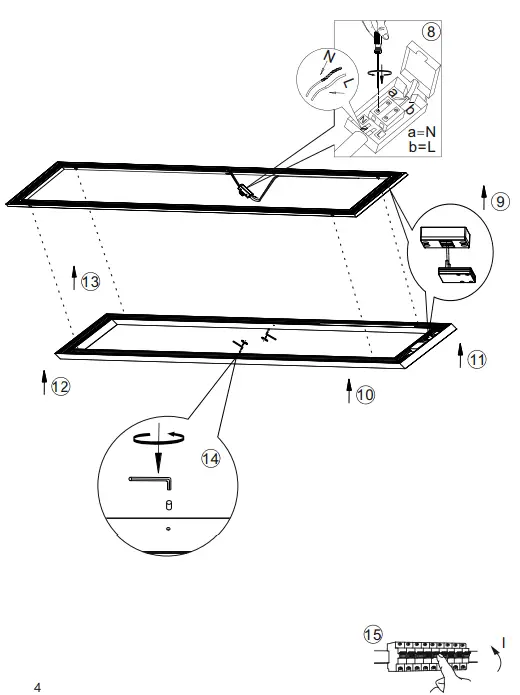

INSTALLATION

Paul-Neuhaus-340634-Pure-Lines-Ceiling-Light-LED-FIG3Paul-Neuhaus-340634-Pure-Lines-Ceiling-Light-LED-FIG4

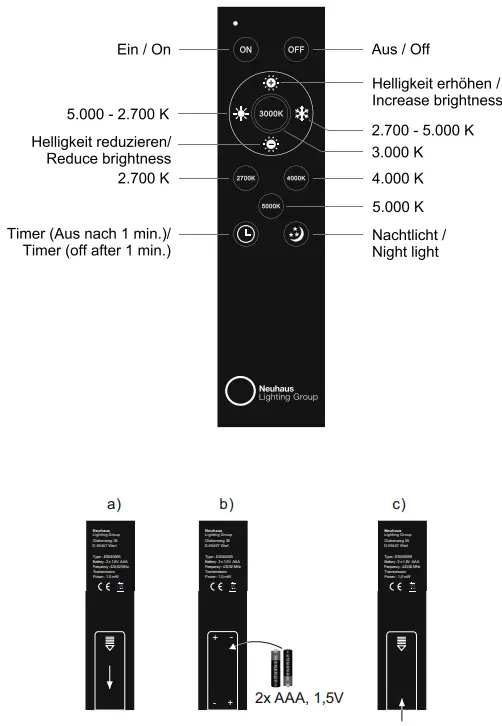

REMOTE CONTROL

Paul-Neuhaus-340634-Pure-Lines-Ceiling-Light-LED-FIG5

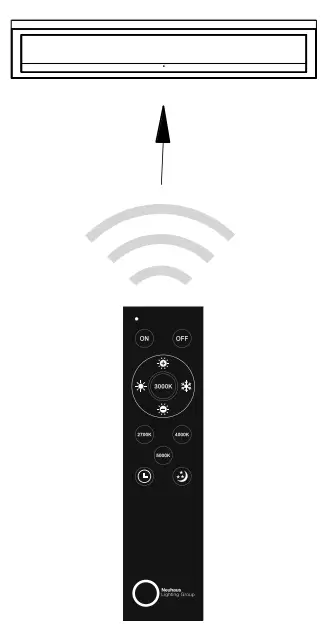

Assigning the remote control to the light
Switch the light on via the wall switch. Press the ON button on remote control within 5 seconds. The light is now assigned and can be operated by the remote control. !!! A remote control can control an unlimited number of lights. A light can be operated by one remote control !!!

Paul-Neuhaus-340634-Pure-Lines-Ceiling-Light-LED-FIG6

Description/Operation data

  • Battery 2x AAA, 1,5V
  • Transmission frequency 433,92 MHz
  • Transmitting power 1,0 mW
  • No-load current 0,001 mA
  • Operating current max.15 mA
  • Range of the remote control 6-8 m

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
