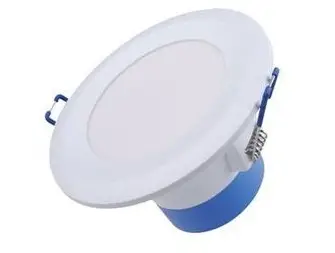

PHILIPS DN029B G2 SmartBright LED Downlight
Mounting Instruction

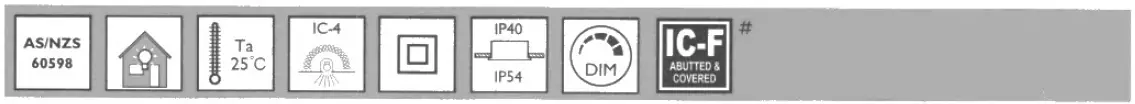

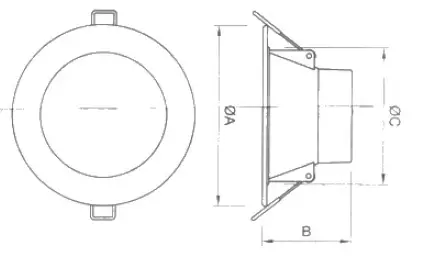

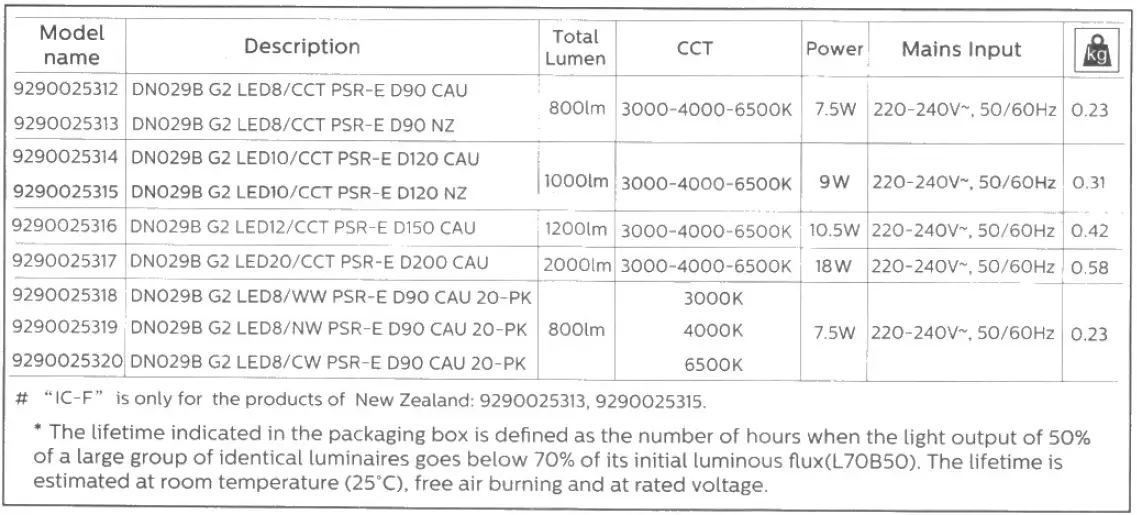

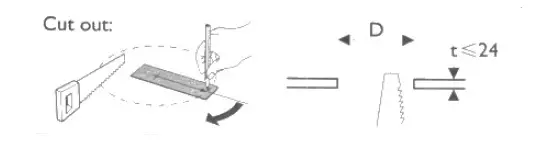

Dimensions (mm)
| A | B | C | 90– 0 0 I 115 – 1-25 150-165 | ||||
| 9290025312 | 9290025313 | 114 | 56 | 86.5 | |||
| 9290025318 | 9290025319 | 9290025320 | |||||
| 9290025314 | 9290025315 | 140 | 59 | 108 | |||
| 9290025316 | —- 190 | 61 | 149 | ||||
| 9290025317 | ·1 225 | ||||||
| 63 I 190 | 19s-210 I | ||||||

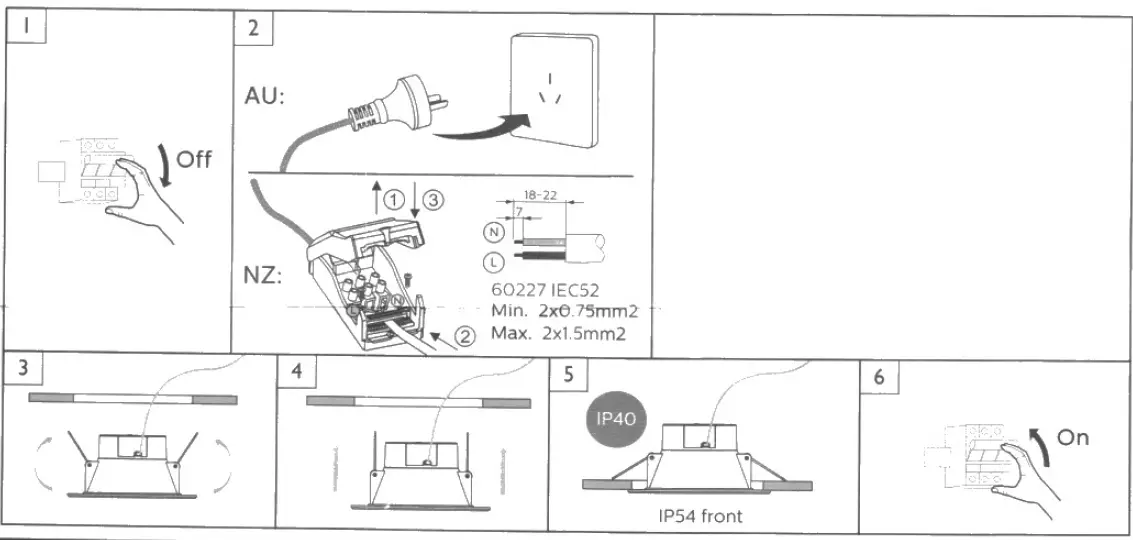

Installation
- HCB- Height clearance to building element
- SCB- Side clearance to building element
- MIC-Minimum insulation clearance
- SCI – Side clearance to insulation
RISK OF FIRE- Required clearance from structural members and building elements
- SCB=50mm
- MIC-0 mm
- HCB-50mm
- SC=0 mm
Dimming compatibility
Designed for dimming with many TRIAC/ELV phase cut control dimmers. A list of common dimmers is provided below. Unli sted dimmers do not imply non-compatibility.
- Signify does not accept liability for incompatibility as a result of changes in dimmer specifications. Please refer to your local Signify agent for further details.
| < ·;.· 1 | “= !:) – Diginet | ::-.;,r | Tw, _ ,…::.·. | ‘.”- · . l:L • | – =- “”‘- | ‘¥1 ·,,— | .- , -;, -cn,!……. ii,,;. | !’ ,,,, ..- -:,g :’,_..,,. – • ·.,:,,.–,_, |
| MEDM | RL | 2-400W | !Ope s/ dimmer | |||||
| 2 | Legrand | Cat 400T | R | 10- 400W | 10pcs / dimmer | |||
| 3 | Clipsal | 32ELEDM | R | 10-300W | 8pcs/ dimmer | |||
| 4 | SAL | SDA450 | RC | 10- 450W | 12pc s/ dimmer | |||
| 5 | TRADER | DIMPRX | R | 2- 400W | 10ocs/dimmer | |||
| 6 | Clipsal | 41E300PBUDS2M- VW | RLC | 10 – 300W | 8pcs/dimmer | |||
CCT dip switch
Color temperature can be set by CCT dip switch on the back cover:
- Adjust toggle to select the prefered color temperature. The initial setting is 300OK.
- Install the fitting according to instruction above.
Please note: Remove product from power source before attempting to switch between color temperature.
Inrush current
| 9290025312 9290025313 | 9290025314 9290025315 | 9290025316 | 9290025317 | 9290025318 9290025319 9290025320 | ||||
|
| lnom(Run current) (mA) | 38 | 45 | 50 | 82 | 40 | ||
| lpeak (A) | 0.96 | 1.26 | 1.28 | 2.2 | 0.8 | |||
| Tref (ms) | 0.051 | 0.038 | 0.041 | 0.039 | 0.12 | |||
| AC Leakage current (mA) | <0 .7 | <0 . 7 | <0 .7 | <0.7 | <0 . 7 | |||
| MCB (Type B 16A, pcs) | 336 | 284 | 256 | 156 | 490 | |||
| MCB (Type C 16A , pcs) | 336 | 284 | 256 | 156 | 490 | |||
- Please read this manual carefully before using the product. Do not switch it on before completing installation.
- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or national requirements.
- The external flex and plug of this luminaire cannot be replaced; if the flex and plug are damaged, the luminaire shall be destroyed.
- Building insulation abutting or covering luminaires
Building insulation that abuts or covers a recessed luminaire, is part of a recessed luminaire, or is within 100 mm horizontally of a luminaire shall:
a) Maintain its dimensions and structural integrity when exposed to the maximum surface temperature of
the class of luminaire, being 90°C in the case of IC-4(IC-F) luminaires;
b) When intended to be in contact with Ic-4(IC-F) luminaires, withstand a 30s needle flame test carried out in accordance with AS/NZS 60695.II.5 with the flame applied to all surfaces of the sample - The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
- The luminaire complied with AS/NZS 60598. I: 2017; 60598.2.2: 2016.
- The luminaire must not be used or stored in a corrosive environment where hazardous materials such as sulfur, chlorine, phthalates, etc, are present.
- WARNING-Risk of overheating or fire if the clearance distances are compromised.
- For indoor use only.
- Distributed by: Reduction Revolution Pty Ltd | www.reductionrevolution.com.au/LED
