Voyager WVSXC150 Digital Wireless Color Cmos Camera
DIGITAL WIRELESS COLOR CMOS CAMERA
WVSXC150 Features
- Digital Wireless Technology
- High-Performance CMOS Sensor
- IR LED low Light Enhancement
- Waterproof (IP69K)
- Wide View Angle
- Integrated Audio Microphone
Contents
- Camera
- Bracket
- Hardware Kit

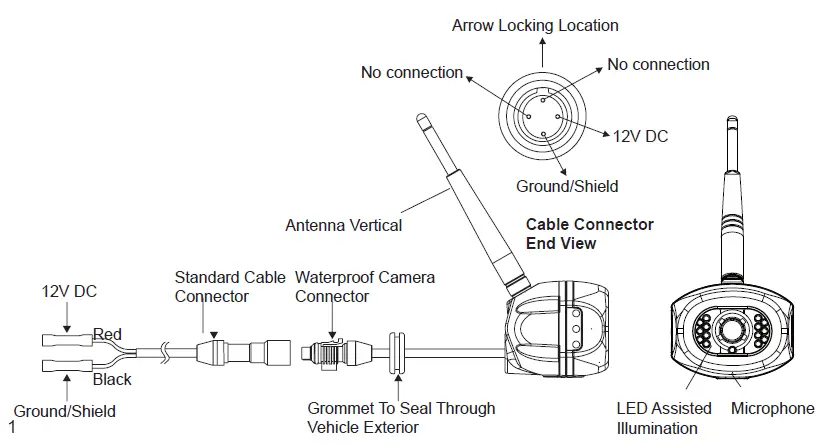

- Installation and Pinout:
Installation

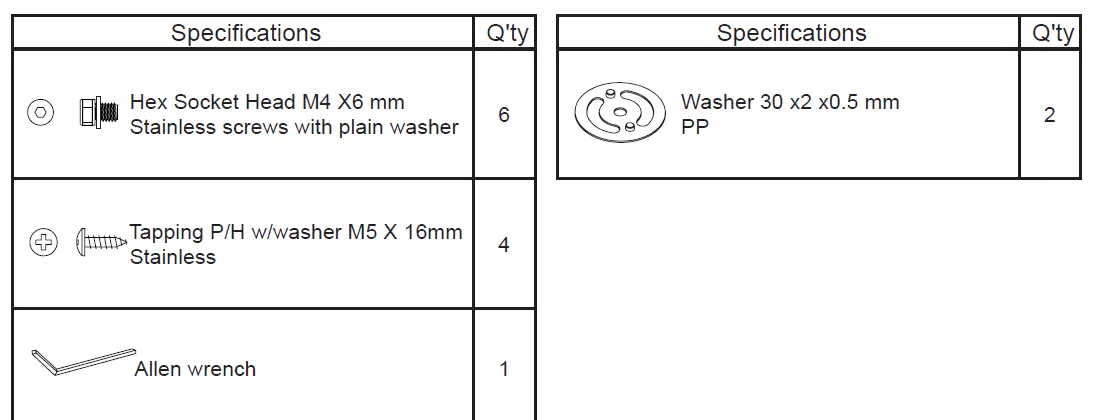

Screw For Use
- Hex Socket Head M4 X 6 mm Stainless screws With Plain washer Stainless Allen wrench

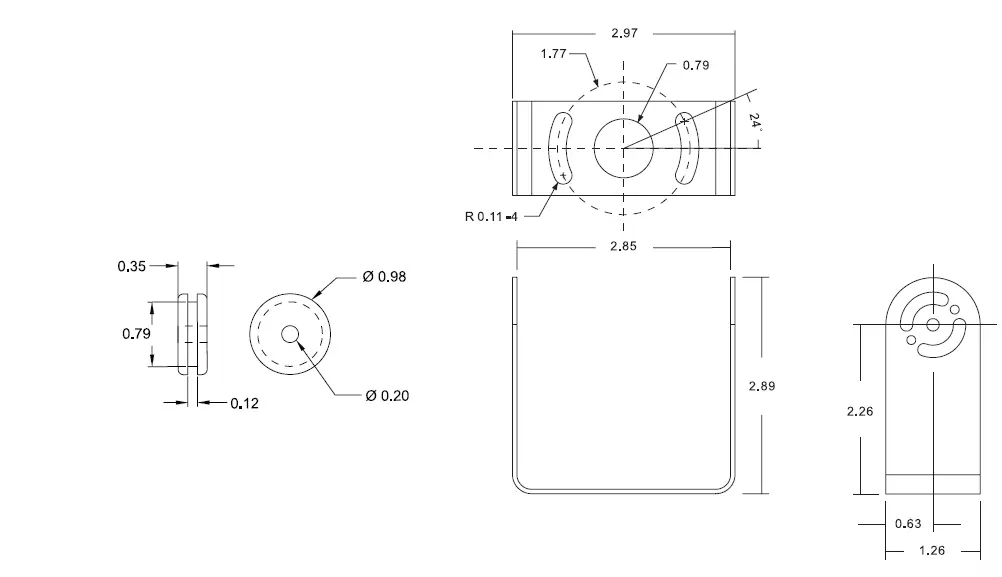

Bracket Mtg. Hole Dimensions
Unit : Inch

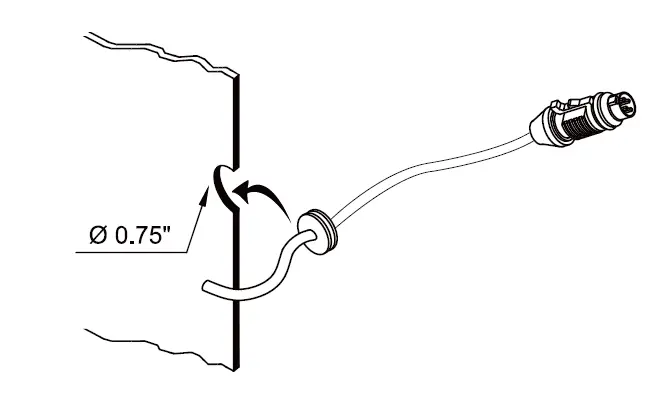

Recommended grommet Hole
Unit : Inch

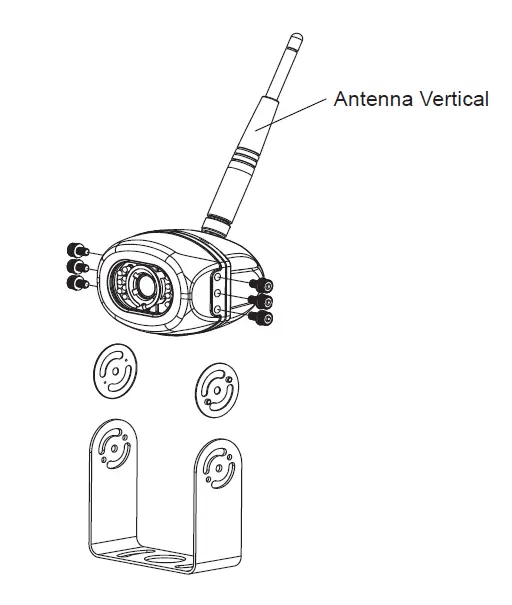

Camera to bracket hardware
Specifications
| Mounting Type | External type |
| Image sensor | 1/3” CMOS camera |
| Resolution | 640×480 pixels |
| Min illumination | 0 Lux with IR on |
| Water resistance | IP69K |
| View angle | 100°(H), 74°(V), 137°(D) |
| Dimension | 85.5(W) X 85.1(H) X 59.8(D)mm 3.36(W) X 3.35(H) X 2.35(D)Inch |
| Working temperature | -20°C ~ +70°C |
| Weight | Approx. 0.35kg / 0.77lbs |
Model: WVSXC150
FCC ID : 2AHU2WVSXC150
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Notice:
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Important Note:
To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void the user’s authority to operate the device.
Features and specifications are subject to change without notice.
For further technical support call
