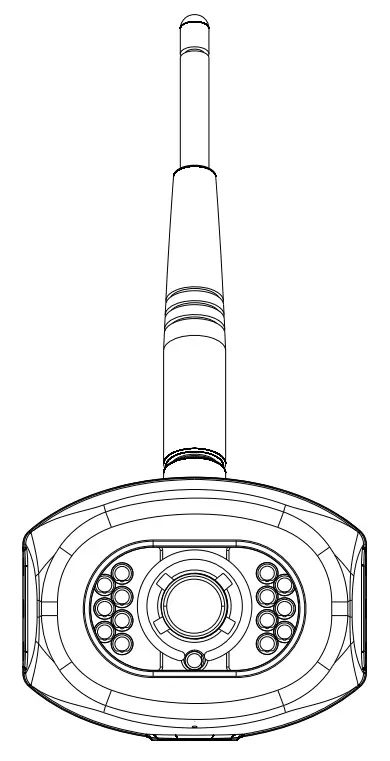

WVSXC150 – DIGITAL WIRELESS
COLOR CMOS CAMERA
WVSXC150 Features:
- Digital Wireless Technology
- High Performance CMOS Sensor
- IR LED low Light Enhancement
- Waterproof (IP69K)
- Wide View Angle
- Integrated Audio Microphone Patent # (9,054,743)
Contents:
Camera
Bracket
Hardware Kit

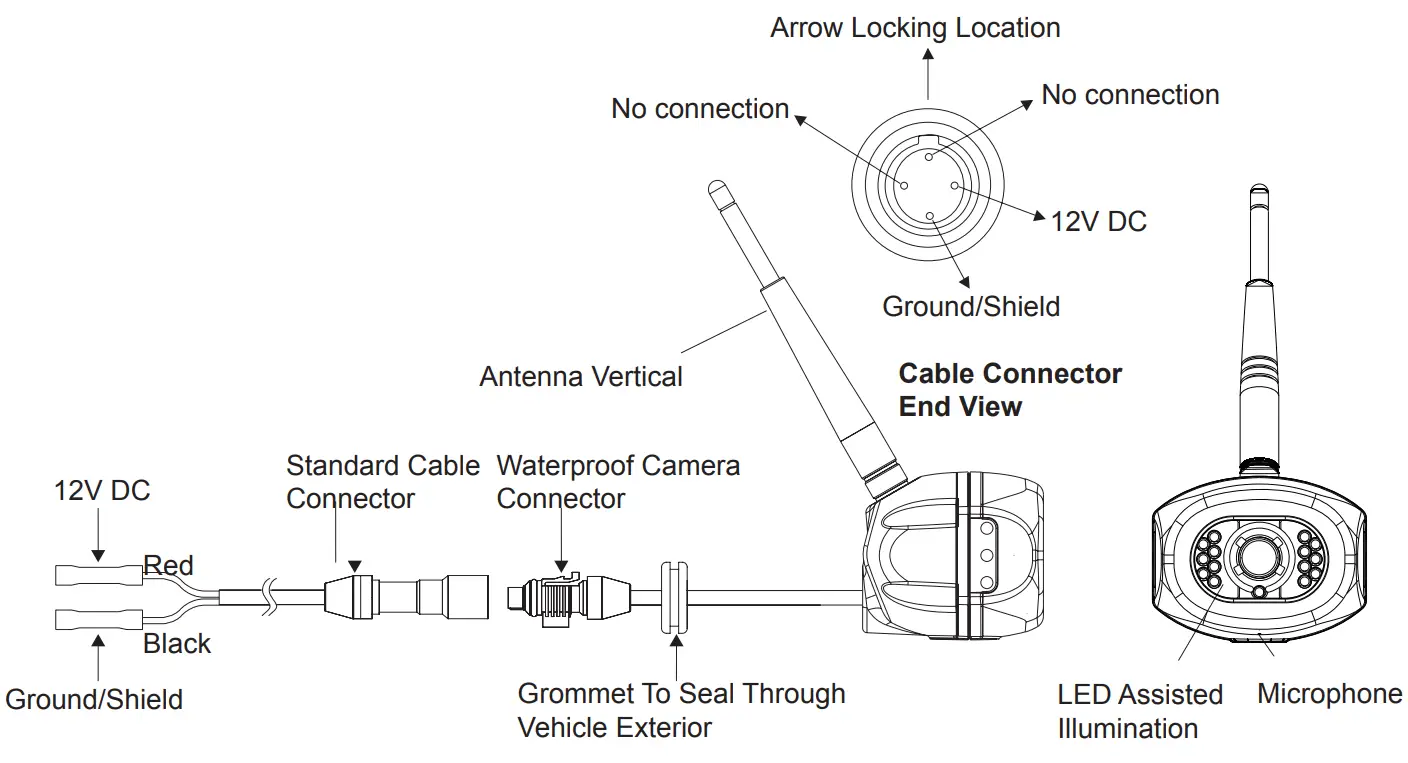

Installation and Pinout:

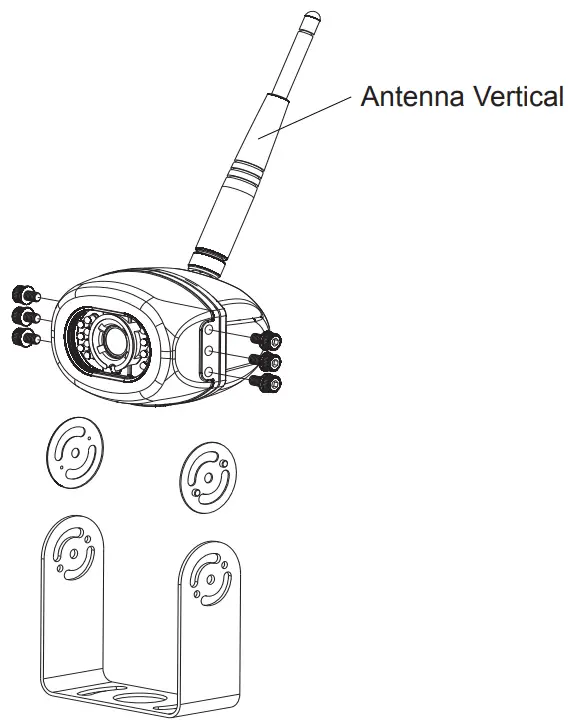

Installation
Screw For Use
Hex Socket Head M4 X 6 mm Stainless screws
With Plain washer
Stainless Allen wrench

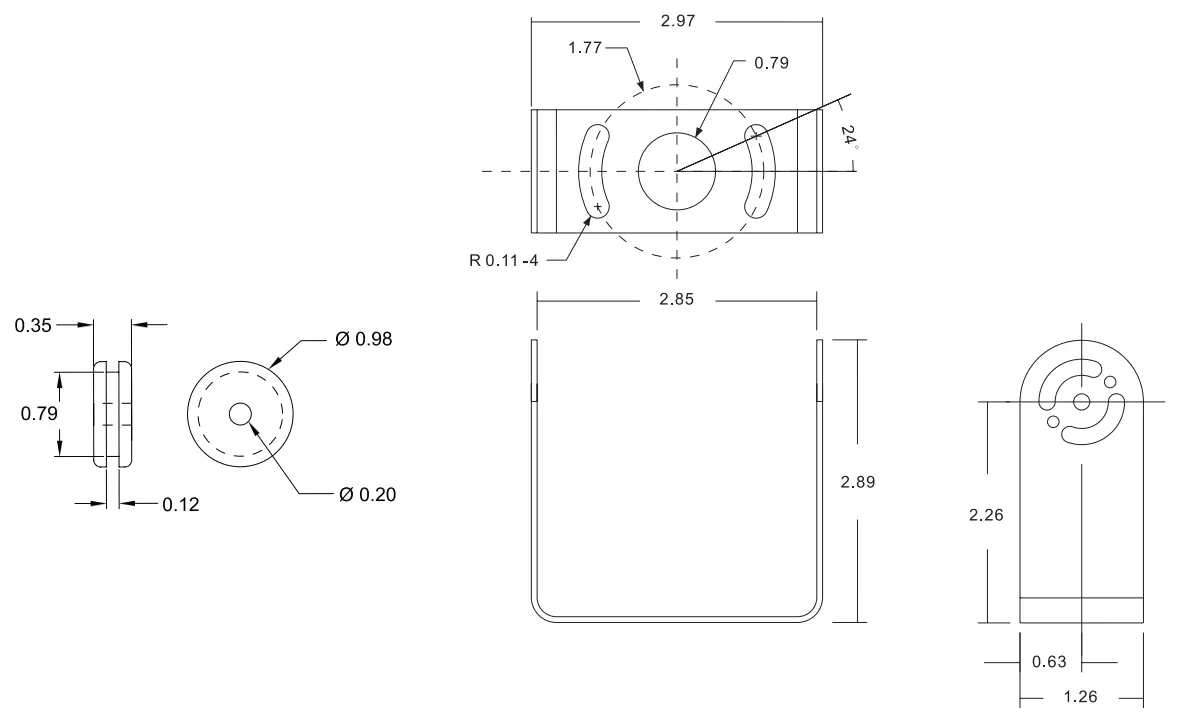

Bracket Mtg.
Hole Dimensions
Unit: Inch

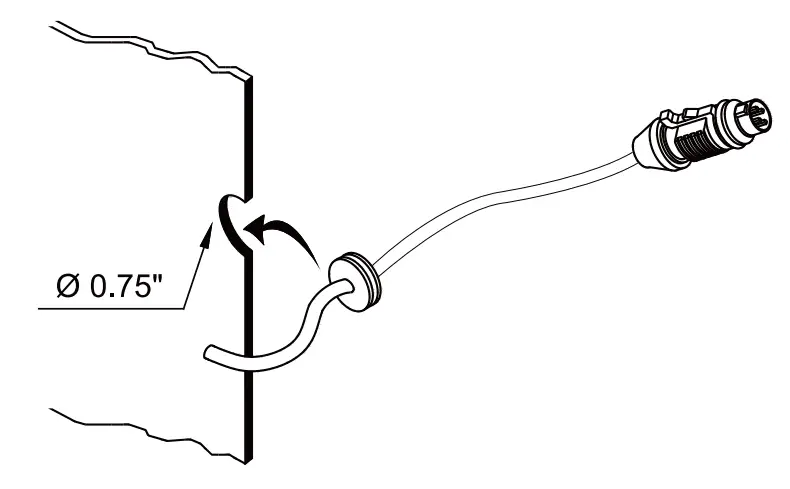

Recommended grommet Hole
Specifications | Q’ty |
 Hex Socket Head M4 X6 mm Stainless screws with plain washer | 6 |
 Tapping P/H w/washer M5 X 16mm Stainless | 4 |
 Allen wrench | 1 |
 Washer 30 x2 x0.5 mm PP | 2 |
Specifications
| Mounting Type | External type |
| Image sensor | 1/3″ CMOS camera |
| Resolution | 640×480 pixels |
| Min illumination | 0 Lux with IR on |
| Water resistance | IP69K |
| View angle | 100°(H), 74°(V), 137°(D) |
| Dimension | 85.5(W) X 85.1(H) X 59.8(D)mm 3.36(W) X 3.35(H) X 2.35(D)Inch |
| Working temperature | -20°C ∼ +70°C |
| Weight | Approx. 0.35kg / 0.77Ibs |
Model: WVSXC150
FCC ID: 2AHU2WVSXC150
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Notice:
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Important Note:
To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void the user’s authority to operate the device.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Features and specifications are subject to change without notice. Les caracteristiques et specifications peuvent etre modifiees.
Caracteristicas y especificaciones sujetas a cambios sin previo aviso. Caracteristicas e especificacOes sujeitas a mudancas sem aviso previo.
For further technical support call:
Pour toute assistance technique plus dataillee, veuillez contacter le: Para recibir soporte tecnico Ilame al:
Se precisar de suporte tecnico, ligue:
1-877-305-0445
