PHILIPS DN070B Ledinaire LED Downlight

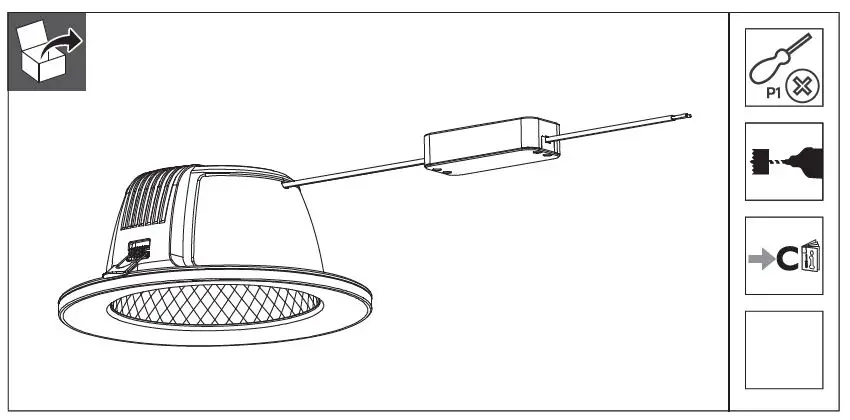

What’s In The Box

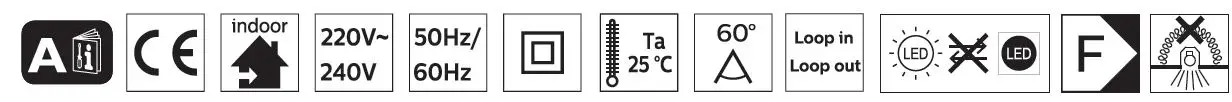

Symbols
| Model Name | Product Description | Lum. Power | Total Lumen | Beam Angle | CCT | CRI |
| Vo l. / Fre q. | Dimmable |  |
| 9290031653 | DN070B LED12/ 830 12W 220-240V D150 RD EU | 12W | 1200 |
60° | 3000K |
> 80 | 150mm |
220- 240V~ , 50/60Hz |
No | 0.44 |
| 9290031654 | DN070B LED12/ 840 12W 220-240V D150 RD EU | 1200 | 4000K | 150mm | 0.44 | |||||
| 9290031655 | DN070B LED24 / 830 24W 220-240V D200 RD EU |
24W | 2400 | 3000K | 200mm | 0.66 | ||||
| 9290031656 | DN070B LED24 / 840 24W 220-240V D200 RD EU | 2400 | 4000K | 200mm | 0.66 | |||||
| 9290032473 | DN070B LED24 / 850 24W 220-240V D200 RD EU | 2400 | 5000K | 200mm | 0.66 |

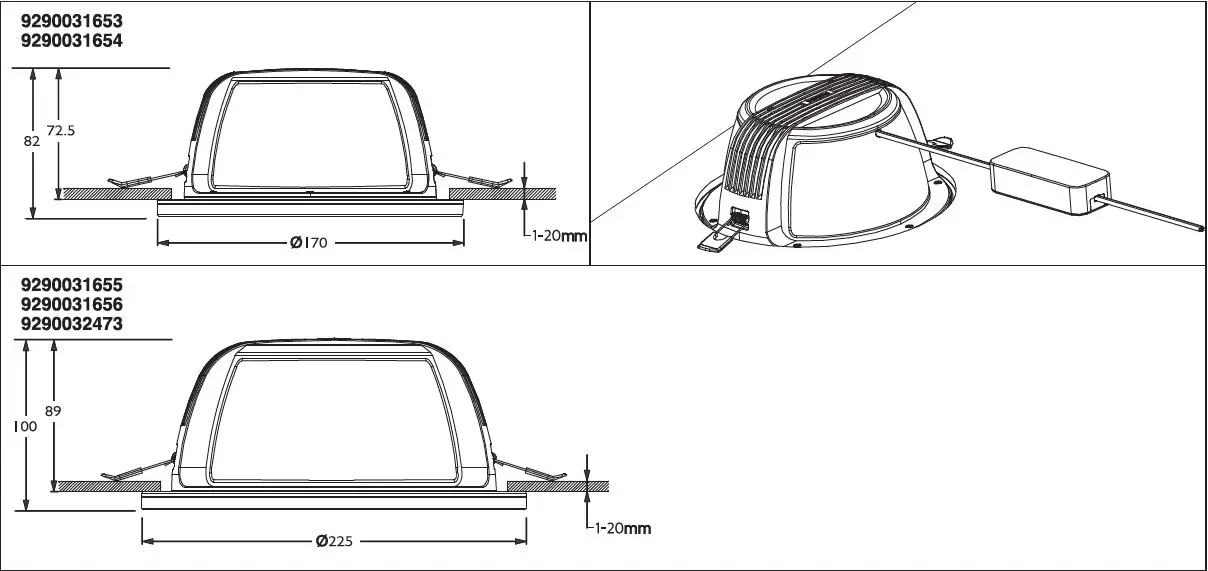

Dimensions

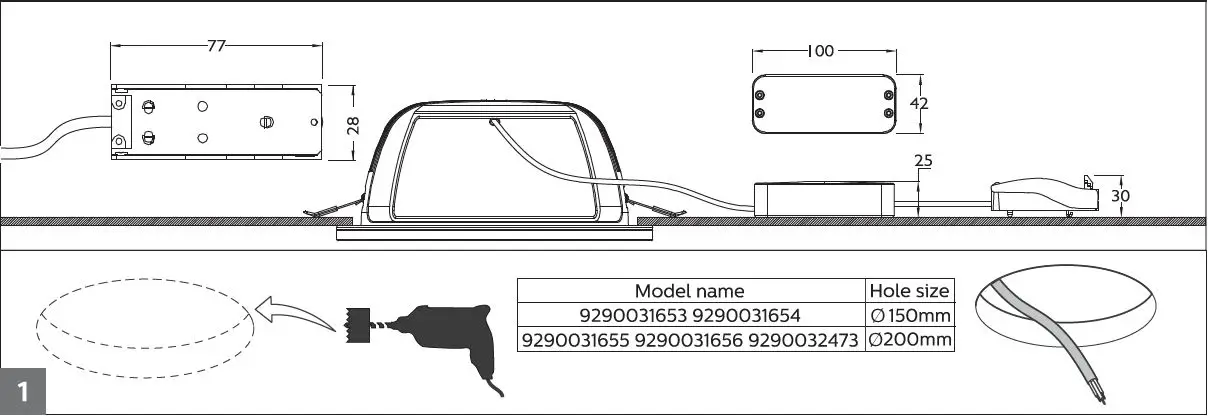

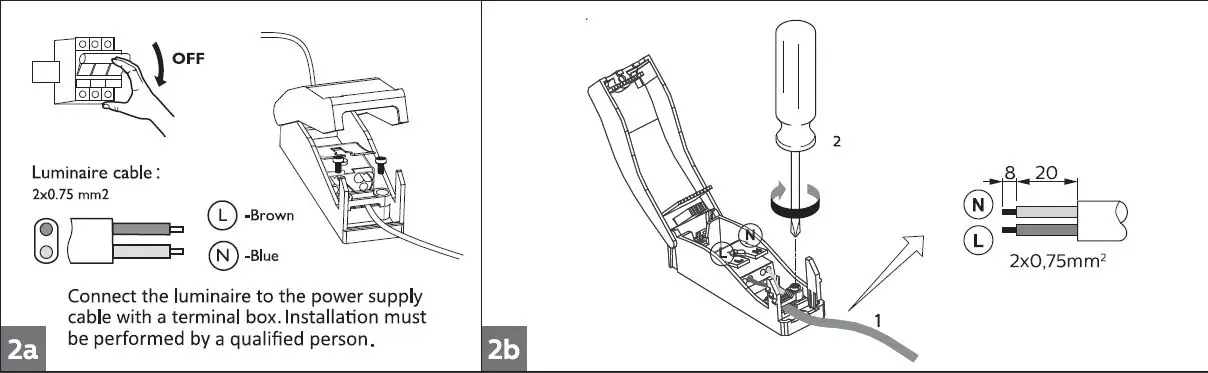

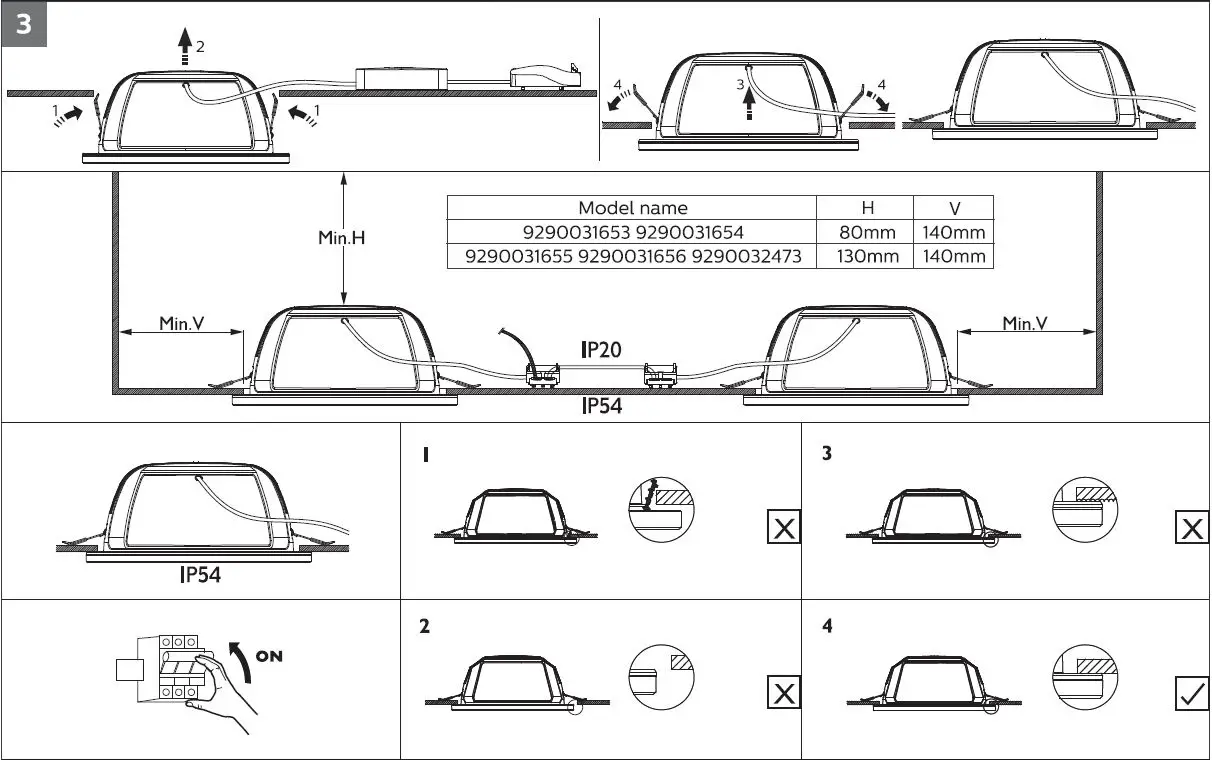

Installation Instruction

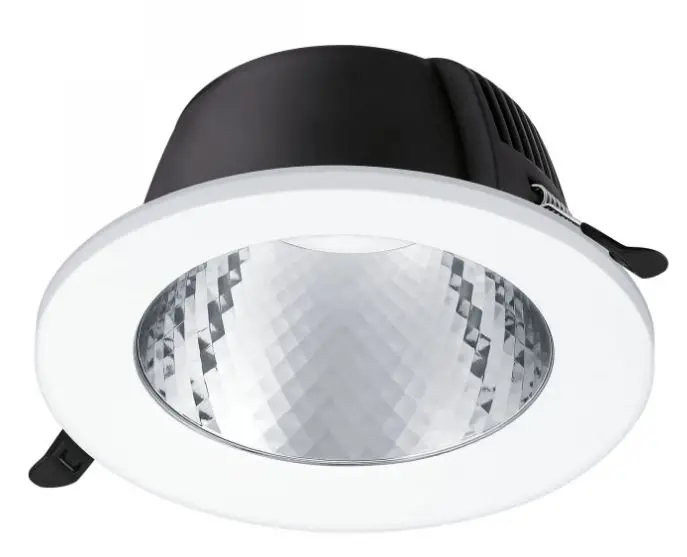

About Product
Please read this manual carefully before using the product.
- For indoor use only.
- Do not switch it on before complete installation.
- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest
IEE electrical regulations or the national requirements. - The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
- The luminaire complies with IEC 60598.
- The luminaire must not be used or stored in a corrosive environment where hazardous materials such as Sulphur, Chlorine, phthalates, etc, are present.
- Non-replaceable light source: The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
- This product contains a light source of energy efficiency class F.
- The product is not suitable for covering with thermally insulating material.
This marking indicates that product A should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
