DN570B-2 PoE Luxspace Downlight
Instruction Manual
DN570B-2 PoE Luxspace Downlight

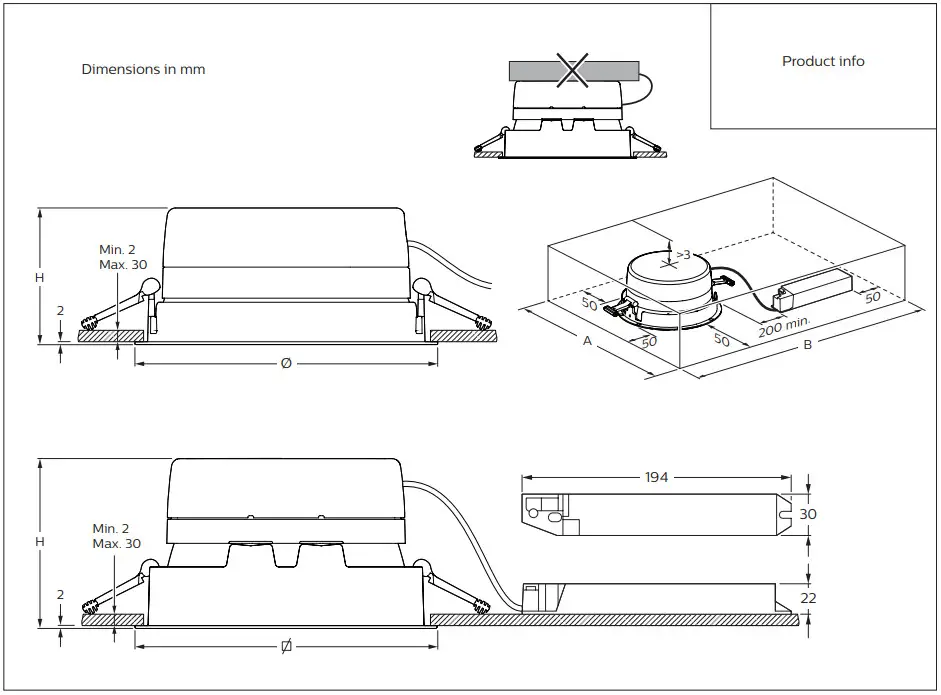

| Dimensions in mm | |||||||||
| CCT (K) | H | A | B | Ø,  mm |  | ||||
| DN560B | LED12S 20S | 830/840/927/930/940 | 72 | 250 | 550 | Ø 164 | Ø 150 | 0.7 | |
| DN561B | 86 | ||||||||
| DN570B | LED12S-20S-24S | 830/8z10/927/930/940 | 96.5 | 300 | 700 | Ø 214 | Ø 200 | 1.17 | |
| DN571B | LED12S-20S-24S | 830/840/927/930/940 | 119 | ||||||
| DN572B | LED12S-20S-24S | 830/840/927/930/940 | 119 | 214 | 200 | ||||
- Rimless housing
- PG or PGO front face covers
- Suspended glass deco accessories
Inrush current:

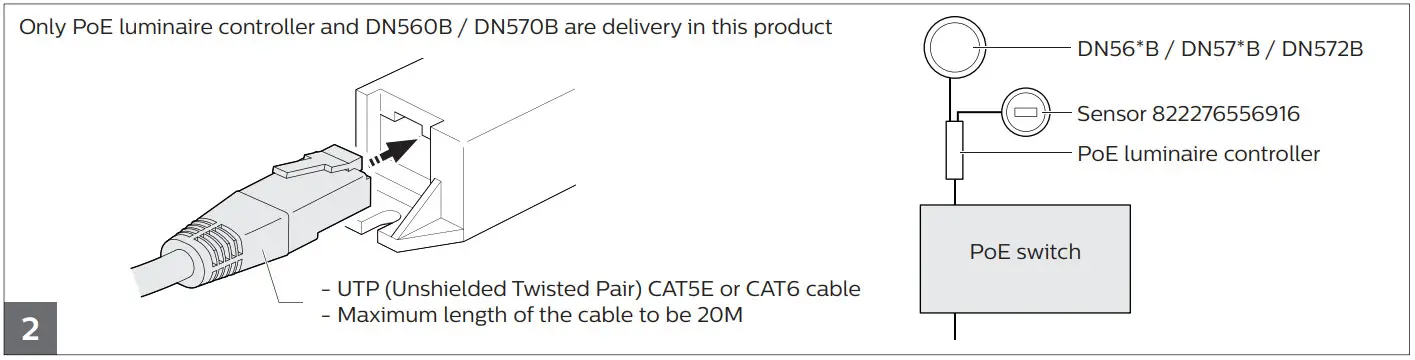

According to IEEE 802.3at (power over Ethernet standard)
DN560B/DN561B/DN570B/DN571B + PG
DN560B/DN561B/DN570B/DN571B + PGO
 |  |
- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or national requirements.
- Only to be installed outside arms reach as recessed ceiling luminaire.
- The light source contained in this luminaire is not user replaceable, it shall only be replaced by the manufacturer or his service agent or a similarly qualified person.

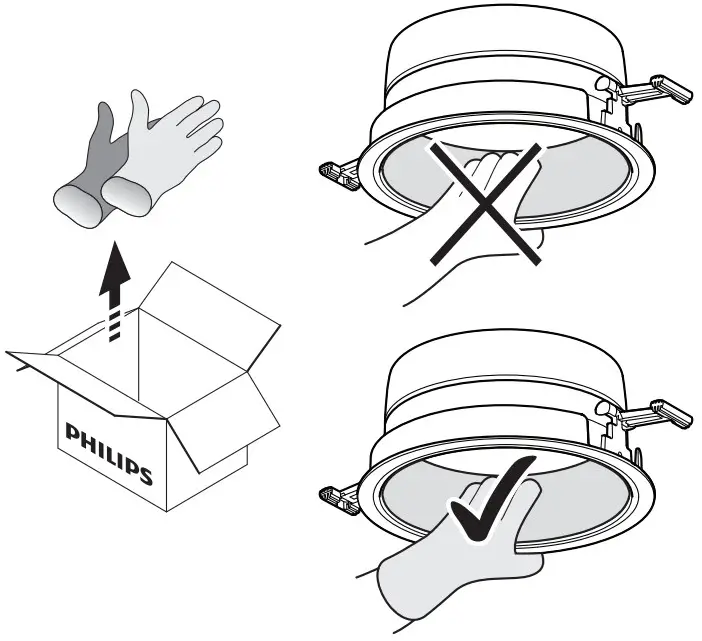

ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES
Disconnect before servicing
The control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person. The light source contained in this luminaire is not replaceable, in case of damage replace the luminaire.
Storage, installation, use, operation, and maintenance of the products need to be performed exactly according to the instructions in this manual and/or other instructions as may be provided by us to guarantee the safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to a warranty. Bolts with an indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque specification to assure maximum strength over a lifetime.
This product contains a light source of energy efficiency class: see table or label.

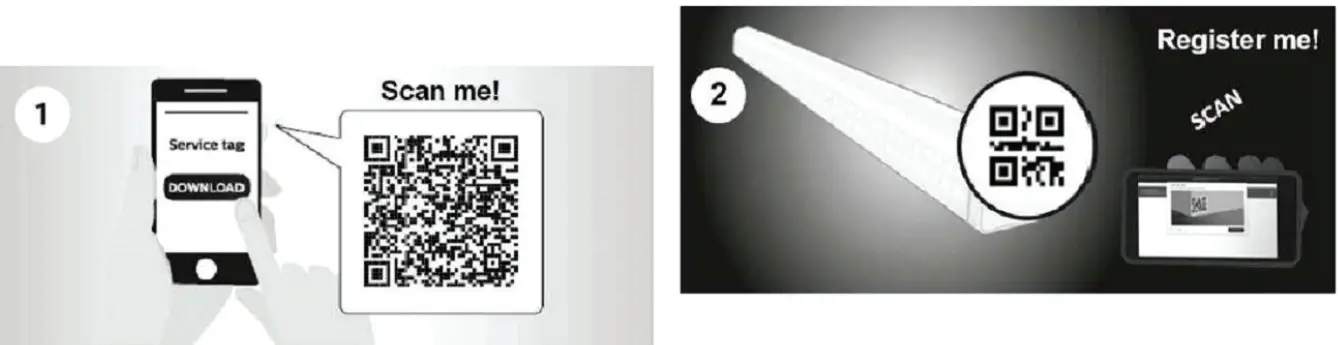

http://www.lighting.philips.com/main/systems/themes/service-tag.html
To get an overview of all spare parts for a luminaire, please refer to detailed instructions in the service manual available via the Signify Service tag apps (Android and iOS).
All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable, and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.
Signify Holding
The Netherlands
