Essential SmartBright
LED downlight
DNO27B
Mounting Instruction

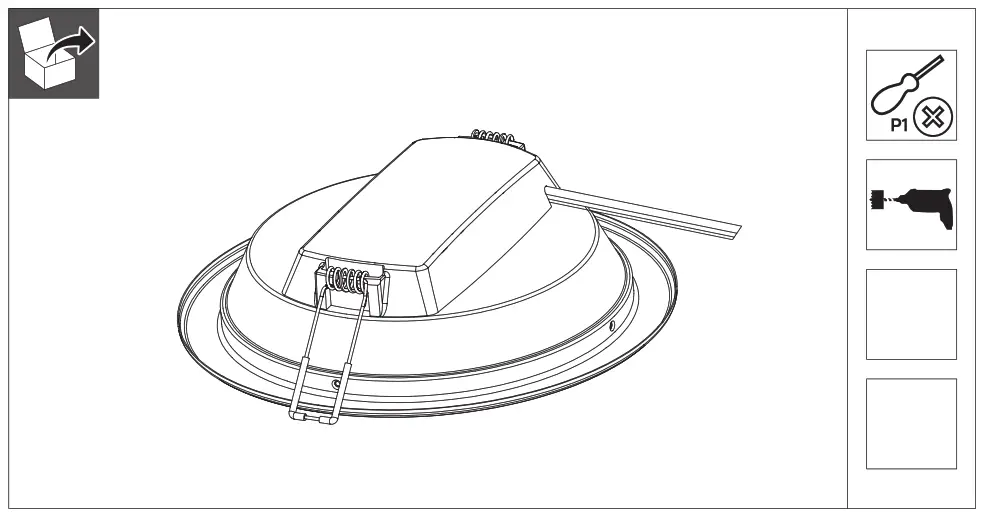

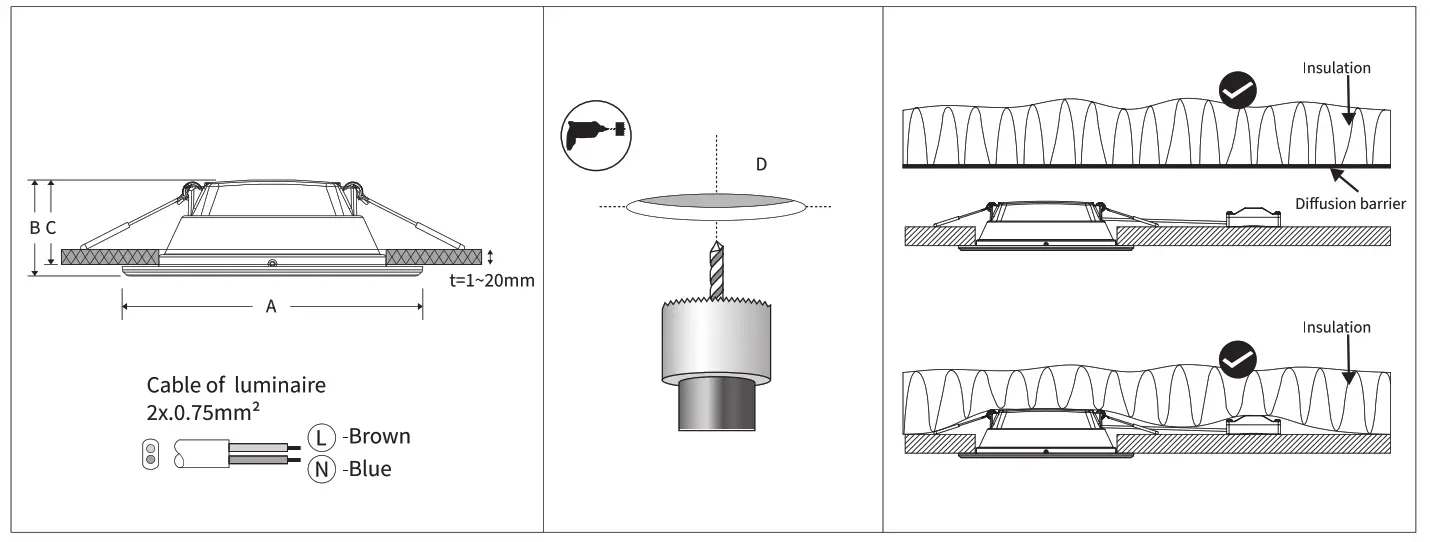

| Model | Product Description | Power(W) | CRI(Ra) | CCT(K) | Total Lumen(lm) | Dimension AxB,C(mm) | Cut Out D(mm) | Weight (kg) |
| 9290032502 | DNO27B G3 LED3/WW 3W 220-240V D70 KSA | 3 | 80 | 3000 | 300 | 095’140,36 | 070-75 | 0.07 |
| 9290032503 | DNO27B G3 LED3/NW 3W 220-240V D70 KSA | 3 | 80 | 4000 | 330 | 095.40,36 | 4)70-75 | 0.07 |
| 9290032504 | DNO27B G3 LED3/CW 3W 220-240V D70 KSA | 3 | 80 | 6500 | 330 | 095.40,36 | $70-75 | 0.07 |
| 9290026721 | DNO27B G3 LED6/WW 6W 220-240V D100 KSA | 6 | 80 | 3000 | 600 | 0125.40,36 | 4)100-105 | 0.13 |
| 9290026722 | DNO27B G3 LED6/NW 6W 220-240V D100 KSA | 6 | 80 | 4000 | 600 | 0125.40,36 | 0100-105 | 0.13 |
| 9290026723 | DNO276 G3 LED6/CW 6W 220-240V D100 KSA | 6 | 80 | 6500 | 600 | 0125.40,36 | 0100-105 | 0.13 |
| 9290026733 | DNO27B G3 LED12/WW 12W 220-240V D150 KSA | 12 | 80 | 3000 | 1200 | 0175.45,41 | 1150-155 | 0.21 |
| 9290026734 | DNO27B G3 LED12/NW 12W 220-240V D150 KSA | 12 | 80 | 4000 | 1300 | 0175.45,41 | 1150-155 | 0.21 |
| 9290026735 | DNO27B G3 LED12/CW 12W 220-240V D150 KSA | 12 | 80 | 6500 | 1300 | 4)175.45,41 | 0150-155 | 0.21 |
| 9290026745 | DNO27B G3 LED20/WW 19W 220-240V D200 KSA | 19 | 80 | 3000 | 2000 | 0225.45,41 | 0200-205 | 0.37 |
| 9290026746 | DNO27B G3 LED20/NW 19W 220-240V D200 KSA | 19 | 80 | 4000 | 2100 | 0225’45,41 | 0200-205 | 0.37 |
| 9290026747 | DNO27B G3 LED20/CW 19W 220-240V D200 KSA | 19 | 80 | 6500 | 2100 | 0225.45,41 | 0200-205 | 0.37 |

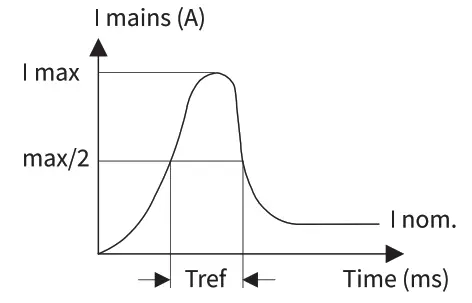

Inrush Current
| 9290032502 9290032503 9290032504 | 9290026721 9290026722 9290026723 | 9290026733 9290026734 9290026735 | 9290026745 9290026746 9290026747 | |
| Electrical characteristice | ||||
| Imax(A) | 3 | 2. | 4. | 5. |
| Tref(‘is) | 0.1 | 0.114 | 0.101 | 0.115 |
| MCB | Luminaires Max.(pcs) | |||
| Type B-10A | 135 | 85 | 46 | 34 |
| Type B-16A | 223 | 143 | 74 | 55 |
| Type C-10A | 220 | 145 | 78 | 59 |
| Type C-16A | 372 | 239 | 125 | 95 |
ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES

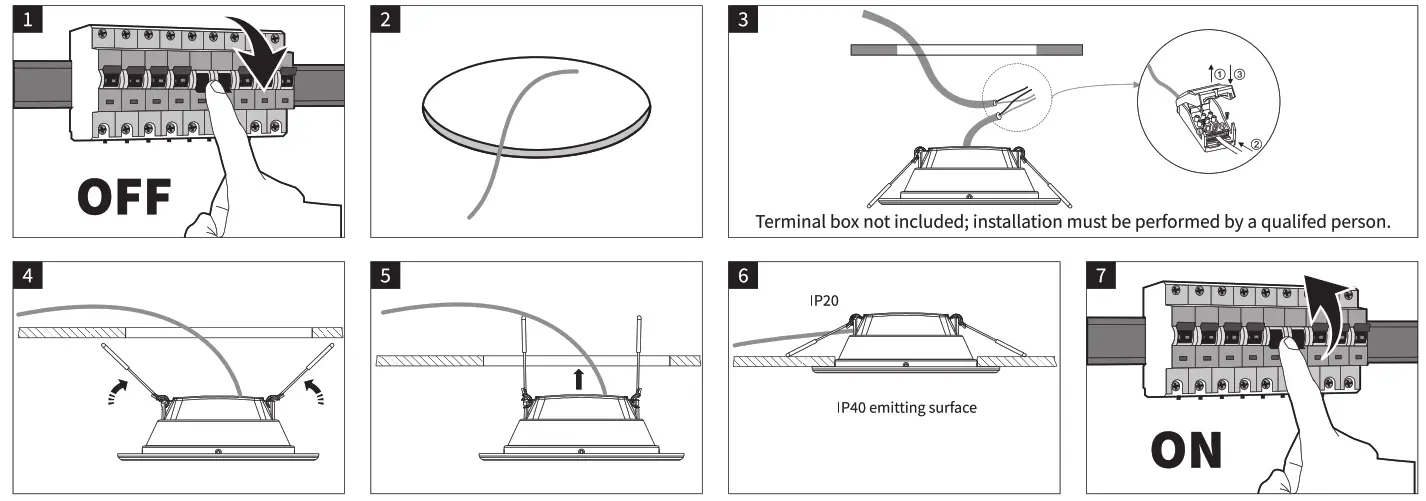

- Please read this manual before you start to install the luminaire.
- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations of the national requirements.
- Switch OFF the power supply before the installation or maintenance to avoid electrical shock.
- The luminaire must not be used or stored in corrosive environment where hazardous materials such as Sulphur, Chlorine, Phthalates, etc., are present.

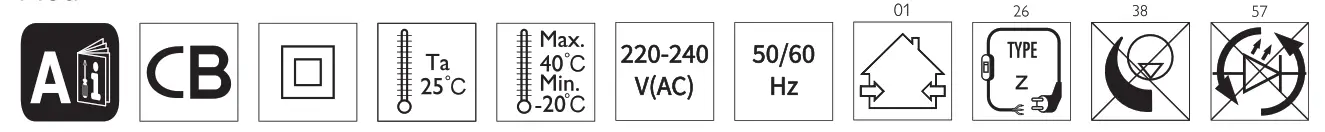

ATTENTION: Below you will find all the explanations with numeric reference to the icons respectively in front of these safety instructions:
01-The product should only be installed indoors. 26- X-connection: In case of damage to the wire, it has to be replaced by a wire of the same type. Y-connection: In case of damage to the wire, it has to be replaced only by the manufacturer, distributor or by an expert, to avoid risks. Z-connection: The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire shall be destroyed 38- The product is not dimmable. 57- The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
3241 659 92361
© 2022 Signify Holding
®ignify
Philips and the Philips Shield Emblem are registered trademarks of Koninklijke
Philips NV. and are used under license
