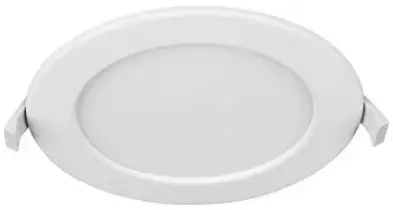

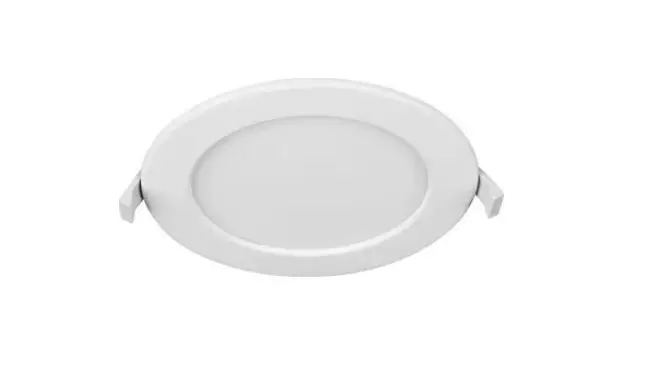

panlux PN22400001 LED Downlight Instructions
INSTRUCTION
Thank you for choosing this product from PANLUX s.r.o.
Before using or installing the product, please read the instructions and follow the safety rules. Installation should be carried out by a qualified professional or company.
Technical data Material: PC plastic
Notes Before using, check the product and ensure that it is not damaged in any way; if it is, do not use it. Before any installation ensure that the main electrical supply is disconnected. If the product is damaged, do not attempt to repair or disassemble it. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Failure to follow these instructions can cause damage to health and Property. The warranty is void if the product is damaged or installed incorrectly.

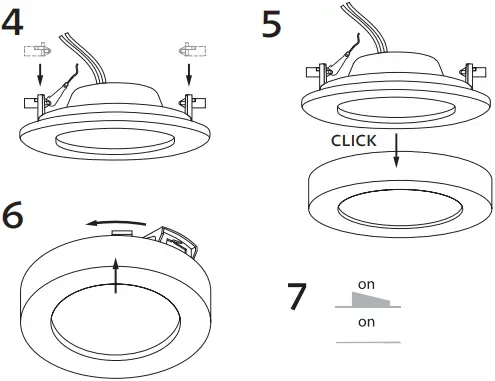

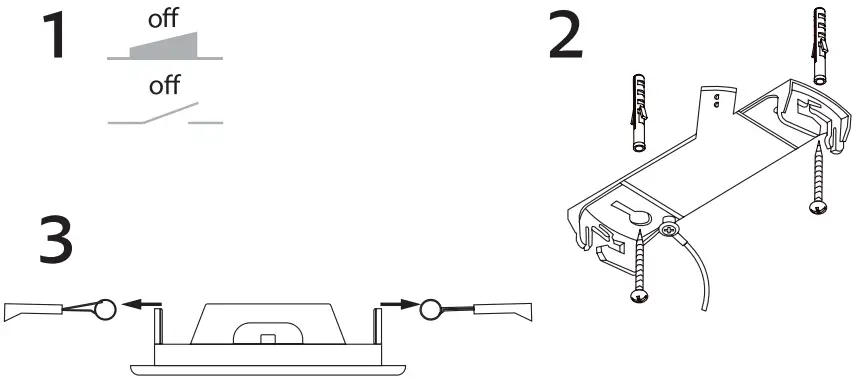

INSTALLATION
| Model | W | Im | K | mA |  |  |  | |
| ❑ ■ | PN22400001 PN22400009 | 6 | 510 540 570 | 3000 4000 6000 | 40 | 0115×32 | 109g | 105 |
| ❑ ■ | PN22400002 PN22400010 | 12 | 1020 1080 1140 | 3000 4000 6000 | 60 | 0170×32 | 203g | 155 |
| ❑ ■ | PN22400003 PN22400011 | 18 | 1530 1620 1710 | 3000 4000 6000 | 90 | 22042 | 330g | 205 |
| ❑ ■ | PN22400004 PN22400012 | 24 | 2040 2160 2280 | 3000 4000 6000 | 120 | 0240×32 | 366g | 225 |

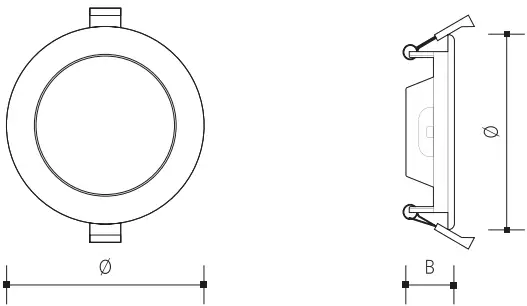

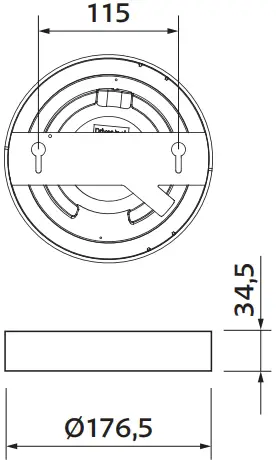

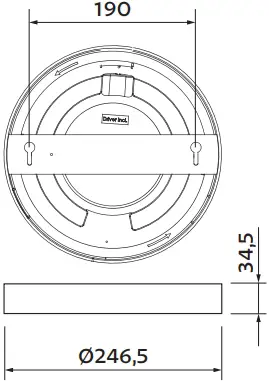

SURFACE MOUNTING
| Model | W | Im | K | mA | | | | |
| ❑ ■ | PN21900001 PN21900008 | 6 | – | – | – | Ø122×34,5 | – | – |
| ❑ ■ | PN21900002 PN21900009 | 12 | – | – | – | Ø176,5×34,5 | – | – |
| ❑ ■ | PN21900003 PN21900010 | 18 | – | – | – | Ø226×34,5 | – | – |
| ❑ ■ | PN21900004 PN21900011 | 24 | – | – | – | Ø246,5×34,5 | – | – |

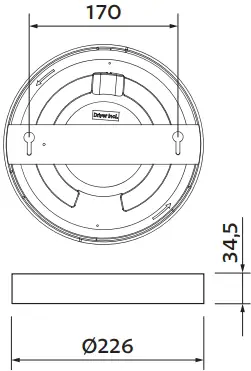

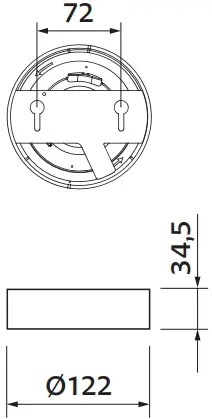

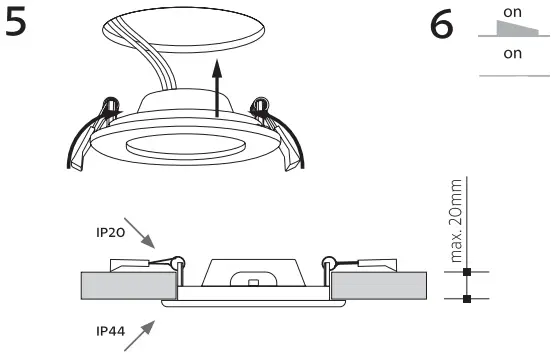

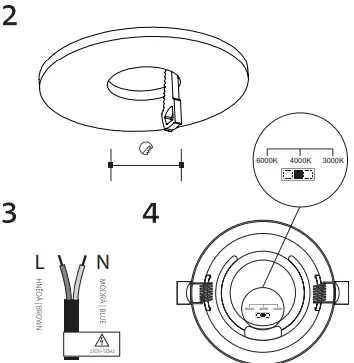

RECESSED MOUNTING
6W
PN21900001
PN21900008
12W
PN21900002
PN21900009
18W
PN21900003
PN21900010
24W
PN21900004
PN21900011
Please, download the latest updated version of the manual.
shop.panlux.cz
