McLED ML-412.019.33.0 LED Downlight

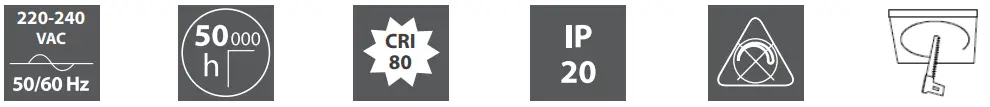

FEATURE
SPECIFICATION
| Code | Voltage | Output | LED chip | Dimension | Mounting hole| | ||
| Cristallo R, S | ML-412.019.33.0 | 220 – 240 VAC | 16 W | EVERLIGHT | Ø 200 x 45 | Ø 160 | |
| ML-412.020.33.0 | 16 W | EVERLIGHT | Ø 200 x 45 | Ø 160 | |||
| ML-412.022.33.0 | 16 W | EVERLIGHT | 200 x 200 | 163 x 163 | |||
| ML-412.023.33.0 | 16 W | EVERLIGHT | 200 x 200 | 163 x 163 | |||
| Jolly | ML-412.025.33.0 | 220 – 240 VAC | 9 W | CREE | Ø 70 x 72 | Ø 60 | |
| ML-412.026.33.0 | 9 W | CREE | Ø 70 x 72 | Ø 60 | |||
| Sima | ML-412.028.33.0 | 220 – 240 VAC | 9 W | CREE | Ø 85 x 75 | Ø 78 | |
| ML-412.029.33.0 | 9 W | CREE | Ø 85 x 75 | Ø 78 | |||
| ML-412.031.33.0 | 16 W | CREE | Ø 120 x 80 | Ø 105 | |||
| ML-412.032.33.0 | 16 W | CREE | Ø 120 x 80 | Ø 105 | |||
| ML-412.034.33.0 | 30 W | CREE | Ø 140 x 80 | Ø 125 | |||
| ML-412.035.33.0 | 30 W | CREE | Ø 140 x 80 | Ø 125 | |||
| ML-412.037.33.0 | 5 W | CREE | Ø 53 x 46 | Ø 43 – 46 | |||
| ML-412.038.33.0 | 5 W | CREE | Ø 53 x 46 | Ø 43 – 46 | |||
| Barcelo | ML-412.043.33.0 | 220 – 240 VAC | 10 W | EVERLIGHT | Ø 95 x 40 | Ø 80 – 85 | |
| ML-412.044.33.0 | 10 W | EVERLIGHT | Ø 95 x 40 | Ø 80 – 85 | |||
| ML-412.049.33.0 | 10 W | EVERLIGHT | 95 x 95 x 40 | 80 x 80 | |||
| ML-412.050.33.0 | 10 W | EVERLIGHT | 95 x 95 x 40 | 80 x 80 | |||
| Pop | ML-412.052.33.0 | 220 – 240 VAC | 5 W | EVERLIGHT | Ø 80 x 45 x 21 | Ø 64 – 70 | |
| ML-412.053.33.0 | 5 W | EVERLIGHT | Ø 80 x 45 x 21 | Ø 64 – 70 | |||
Installation
Warning: Installation should be performed by a person competentin installations of electrical equipment.

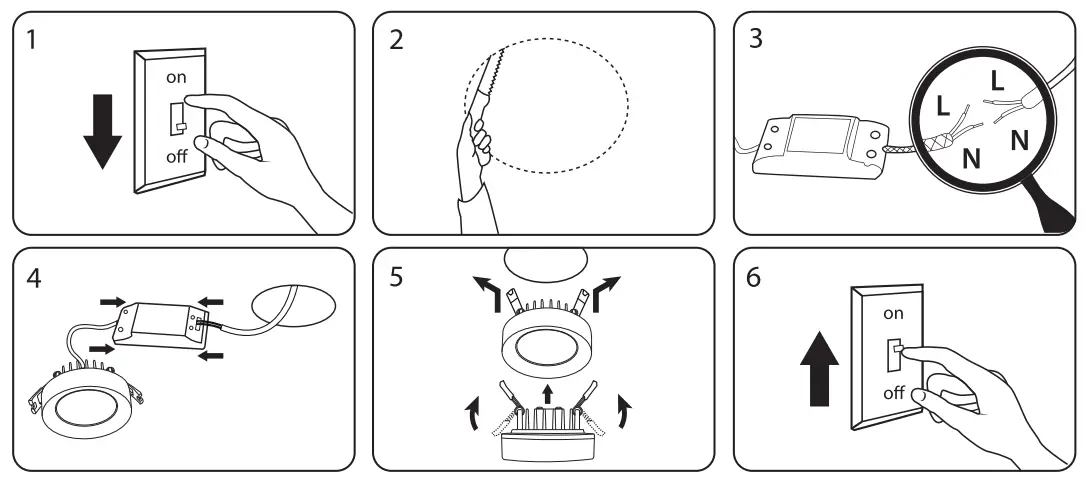

Installation diagram: See illustrations.
- All activities must be performed with the power shut off.
- Prepare the installation opening.
- When connecting, pay attention to the markings on the wires.
- Connect the light fixture.
- Insert the light fixture into the prepared opening.
- Check the proper functionality of the light.
Before using the light for the first time, it is necessary to check the mechanical fixing and electrical connection has been properly executed.
Functional Characteristics
- The product has an increased resistance to mechanical impact.
- This product is in the category of energy-saving products.
Operating Instructions / Maintenance
- Do not use chemical cleaning agents.
- Do not cover the product.
- The product must not overheat above the recommended operating temperature.
- The product cannot be used with a cracked diffuser or other mechanical damage.
- This product has an LED light source, which is not replaceable.
- The product is not designed for use in damp spaces or for contact with water (IP 20).
- In the event of damage to the light source, the product cannot be repaired.
- CAUTION: Do not look directly into the LED light beam.
Notes and Recommendations
- Failure to follow these instructions may cause fire, burns, injury by electrical current, physical injury and other material and non-material damages.
- Additional information on McLED products is available at: www.mcled.eu
- McLED is not liable for damages resulting from failure to follow these instructions.

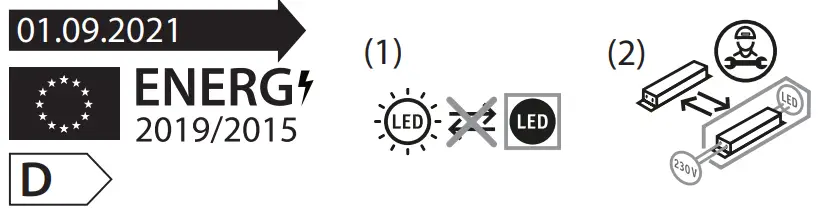

Replaceability
- Light source is not replaceable, the luminaire must be replaced.
- control gear can be replaced by a qualifed electrician without permanently damaging the luminaire.
McLED® warranty
McLED s.r.o. (Ltd.) provides a three-year warranty on LED luminaires. In the event of a claim, the customer is entitled to reimbursement of reasonable costs incurred in association with the claim only in connection with shipping costs, which is approved with the seller in advance. To determine the legitimacy of the claim, the manufacturer must always have the option of assessing the correctness of the LED luminaire installation on the site where it is installed.
Cristallo R16, S16 · Jolly 9 · Sima 5, 9, 16, 30 · Barcelo R10, S10 · Pop 5
