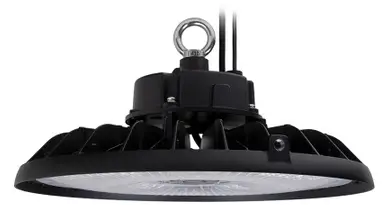

McLED ML-611.325.63.2-50.80.120 LEDtec G2 Industrial Lamp
Installation Manual
Before you start installation
- Unpack product and check it carefully
- If the product is damaged in any way, submit your claim together with the product in
- its original packaging Please, do not use the damaged product
- Do not connect the luminaire to the live mains
Safety notes
- In case of the optics breaking, do not use the luminaire and ensure its replacement
- Important: Do not touch the luminaire during operation or shortly after turning
off- risk of burning! Let the luminaire cool down! – Do not cover, place away from fammable substances - Warning: Prevent contact of the luminaire internal parts with water
- Do not look at the luminaire from a short distance; there is a risk of injury to the eyes
- Do not disassemble the luminaire – do not adjust or reset electronic components of the luminaire circuits.
- Installation and service may only be performed by qualified persons.
LEDtec G2
LEDtec G2 100, LEDtec G2 150
LEDtec G2 200, LEDtec G2 240
Installation dimensions (mm)
| Product Speci cations | 100W | 150W | 200W | 240W |
| Size | Ø 280×159 | Ø 280×159 | Ø 330×169 | Ø 330×169 |
| Weight | 2,04 kg | 2,05kg | 2,84 kg | 3,03 kg |
| Input Voltage | 220-240 VAC | |||
| Working temperature | -20°C +50°C | |||
| Storing Temperature | -40°C +70°C | |||
Installation

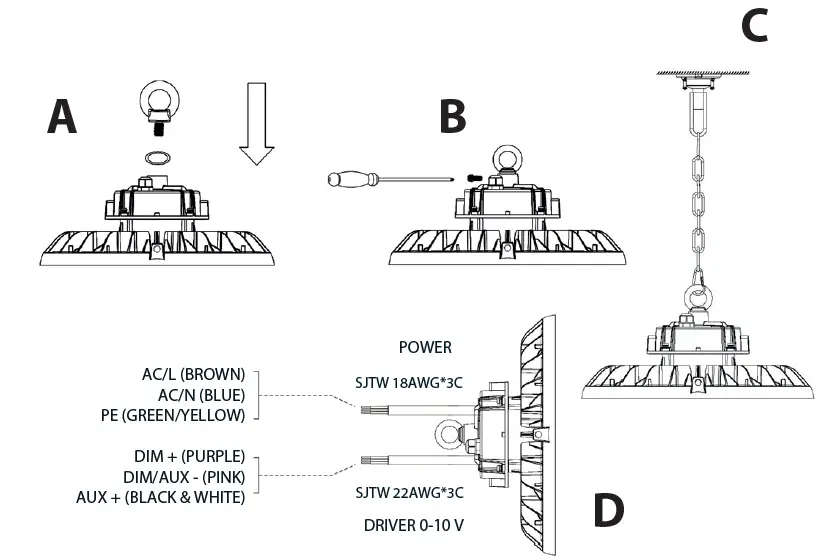

- Attach the hanging eye to the luminaire. Use a washer, according to Fig. A.
- Adjust the luminaire to the desired angle to Fig. B.
- Hang the luminaire on a suitable hinge, according to Fig. C
- Connect the blue wire to “N”, brown wire to “L” and yellow-green wire to the grounding conductor.
- If necessary, connect the control according to Fig. D.
- Check for correct connection and turn power on.
This product contains a light source with energy efficiency class (see above).
Replaceability: (1) Light source is not replaceable, the luminaire must be replaced. (2) control gear can be replaced by a qualified electrician without permanently damaging the luminaire.
McLED® warranty
McLED s.r.o. (Ltd.) provides a five-year warranty on LED luminaires.
In case of a claim, the customer is entitled to compensation for costs associated with claims only in connection with shipping costs, which shall be approved by the seller in advance. To determine the legitimacy of the claim, the manufacturer must always have the option of assessing the correctness of the LED luminaire installation on the site where it is installed.
Importer: McLED s. r. o. , Vídenská 185, 252 50 Vestec,
tel.: +420 220 184 800,
fax: +420 244 910 700,
e-mail: [email protected], www.mcled.cz
