FARO RN
User manual
FARO RN 10 LED Lamp
Please read the instructions carefully before luminaire installation
CAUTION:
Turn power off before connecting power supply wires.
Installation and service may only be performed by qualified persons.

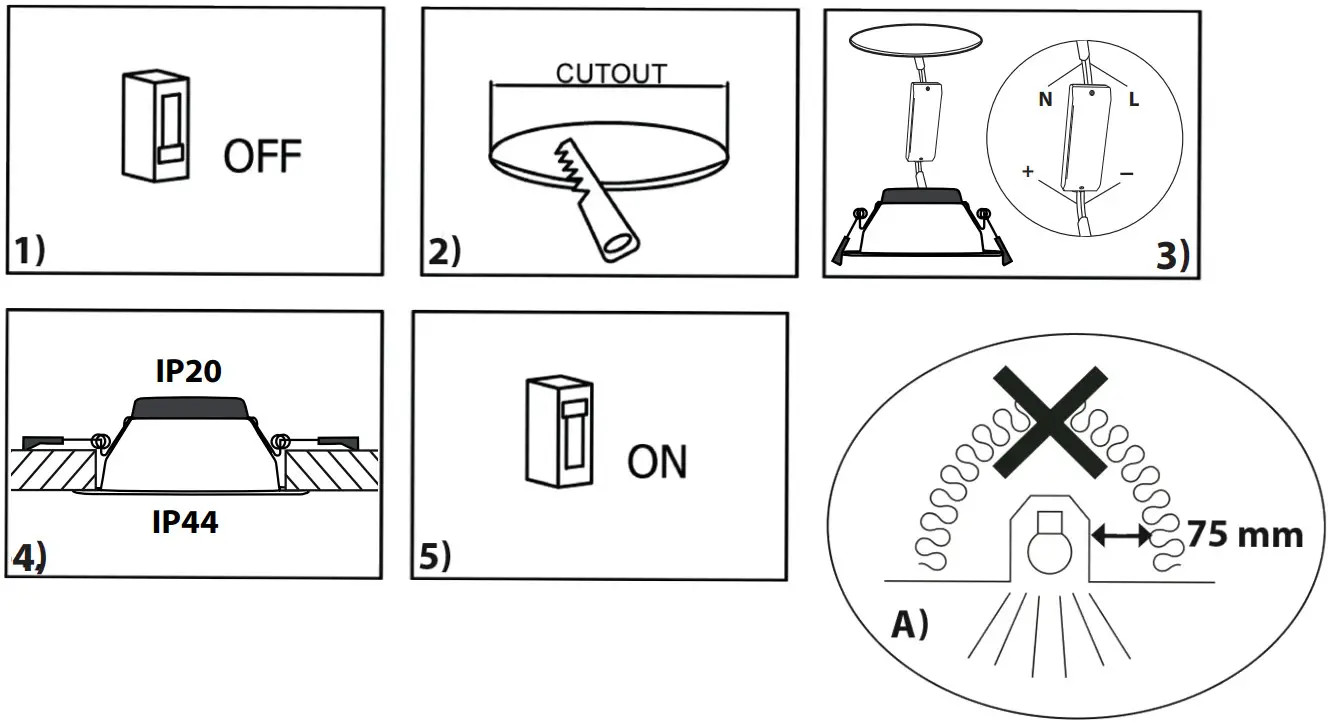

Do not cover the top of the recessed light fixture. It is necessary to leave around fixtures 75 mm free space for air circulation (Fig A).
Failure to follow these cautions may lead to serious injuries, fire or luminaire damage.
Part of the luminaire is a power supply whose input voltage is 220-240 V AC.
Any different voltage may damage or destroy the luminaire.
The luminaire has an IP 44 protection from the front. It is also suitable for damp environment.
The warranty does not apply to luminaire damage resulting from incorrect installation.
INSTALLATION:
Step 1: Turn off the power supply energy.
Step 2: Cut a hole for the light, see the table.
Step 3: Connect the power lines to the power supply of the luminaire according to the colors: Blue (N), Brown (L)
Step 4: Fold the clips upward, and insert the lamp into the hole.
Clips attracts the light to the base. After that just center the light.
Step 5: Check the connection and turn on the power supply energy.
| FARO RN 10 | FARO RN 18 | FARO RN 25 | FARO RN 40 | |
| Constant voltage | 220-240 VAC | 220-240 VAC | 220-240 VAC | 220-240 VAC |
| Output | 10 W | 18 W | 25 W | 40 W |
| Temperature of white | 3000 K/4000 K | 3000 K/4000 K | 3000 K/4000 K | 3000 K/4000 K |
| Luminous flux | 780 lm/850 lm | 1440 lm/1550 lm | 2170 lm/2350 lm | 3000 lm/3880 lm |
| Lifespan | > 30.000 h | > 30.000 h | > 30.000 h | > 30.000 h |
| Cut-out | 90-98 mm | 135-145 mm | 190-210 mm | 240-260 mm |
| Operational temperature | – 20 až + 40 °C | – 20 až + 40 °C | – 20 až + 40 °C | – 20 až + 40 °C |
| Colore rendering index | CRI 80 | CRI 80 | CRI 80 | CRI 80 |
ENERG
2019/2015
FARO RN 10/18/25
FARO RN 40
This product contains a light source in the power saving class (see above). Exchange possibilities: (1) the light source cannot be exchanged. The luminaire must be replaced with a new one. (2) the gearbox may be replaced by a responsible person with corresponding qualifications without permanently damaging the luminaire.
*McLED® warranty
McLED s.r.o. (Ltd.) provides a three-year warranty on LED luminaires.
In the event of a claim, the customer is entitled to reimbursement of reasonable costs incurred in association with the claim only in connection with shipping costs, which is approved with the seller in advance. To determine the legitimacy of the claim, the manufacturer must always have the option of assessing the correctness of the LED luminaire installation on the site where it is installed.
www.mcled.eu
01.09.2021
