Office 6030 LED Lamp
Instruction Manual
Installation instructions
- Only handle the luminaire when the 230 V/50 Hz mains power supply is turned off.
- To power the panel, only use the original power supply unit (driver) which has been approved for the panel. If the UGR version of the luminaire is to used, it is necessary to purchase the driver separately as an option for the luminaire. For other versions, it is included in the luminaire delivery

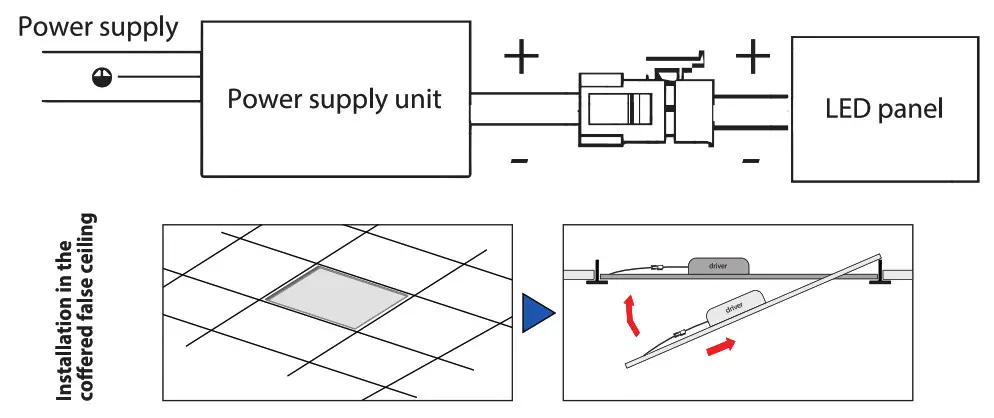

- Connect the power supply wires to the input terminals of the driver and connect its output connector to the luminaire.

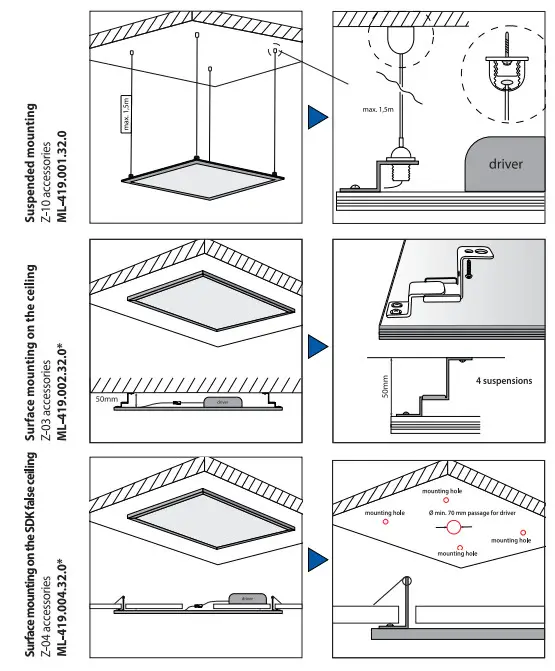

- The luminaire is intended for ceiling recessed (coffered false ceiling), surface or suspended mounting. Depending on the installation method, mount the luminaire using the original optional accessories.
- Turn the mains power supply on.
Safety instructions
- Installation may only be carried out by a qualified person
- A visibly damaged luminaire must not be installed
- Do not cover the product
- The luminaire may only be used within the specified working temperature range
- Do not use detergents when cleaning the luminaire * Avoid looking directly at the lit LEDs
Technicke parametry
| Driver input voltage | 220-240 V 50/60 Hz |
| LED panel input current/voltage | 1050 mA/max. 50 V DC |
| Output | 18 W – 6030 36 W – 12030 / 12030 UGR 40 W – 12060 |
| IP protection level | IP 20 |
| Operating temperature | -20 ait +40 °C |
| Dimensions | 595 x 295 x 10 mm – 6030 1195 x 295 x 10 mm – 12030 / 12030 UGR 1195 x 595 x 10 mm-12060 |
Drivers for the panels in the UGR version (the driver is not included in the luminaire delivery:
| ML code | Output | Dimensions | Input voltage | Output voltage | Output current | Dimming |
| ML-419.048.32.0 | 40 W | 115 x 45 x 30 mm | 220-240 V 50/60 Hz | 27-38 V DC | 1050 mA | no |
| ML-419.035.32.0 | 40 W | 123 x 79 x 25 mm | 220-240 V 50/60 Hz | 6-38 V DC | 1050 mA | DALI/PUSH PWM/1-10 V |
Installation accessories
Compatible with LED panels: 6030/12030/12030 UGR/12060
* It is necessary to use 6 clips, i.e. two sets for 12030 / 12030 UGR / 12060 panel mounting.

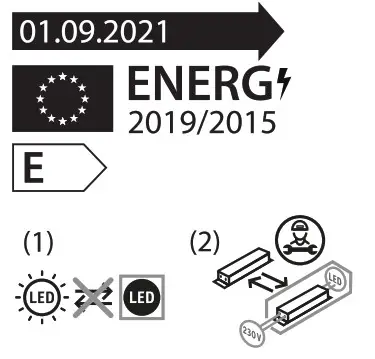

This product contains a light source in the power saving class (see above). Exchange possibilities: (1) the light source cannot be exchanged. The luminaire must be replaced with a new one. (2) the gearbox may be replaced by a responsible person with corresponding qualifications without permanently damaging the luminaire.
McLED warranty
McLED s.r.o. provides a five-year warranty for the LED luminaires.
In the event of a complaint, the customer is only entitled to compensation for the costs associated with the complaint in connection with shipping costs, which must be approved by the seller in advance. To determine the legitimacy of the claim, the manufacturer must always have the opportunity to assess the correctness of the LED luminaire installation directly on the site where it is installed.
