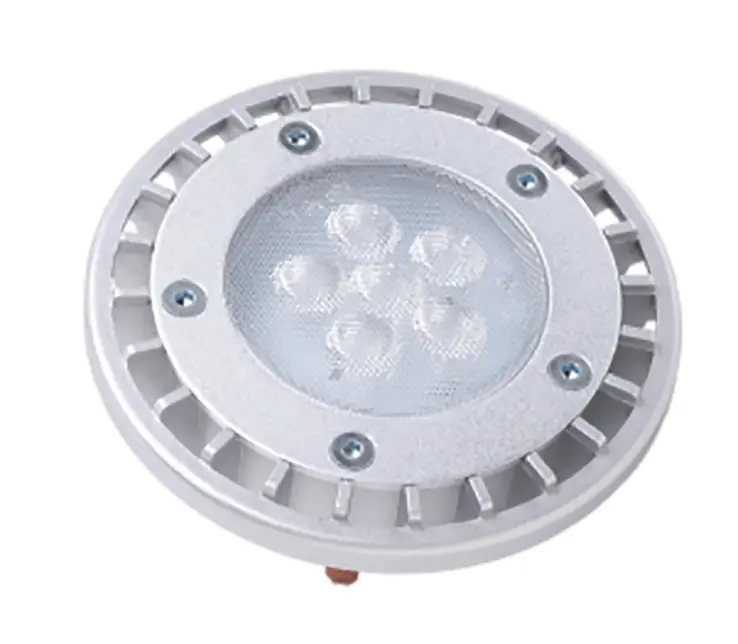

Halco PAR36 Series LED Lamps
Specifications
- Improved efficiency by lowering wattage consumption and increasing light output
- Saves up-to 81% in energy costs1 versus halogen lamps
- IP67 Rated for waterproof installations2
- Multi-purpose base for slip-on or screw terminal connections
- 2700K color temperature for warm white illumination

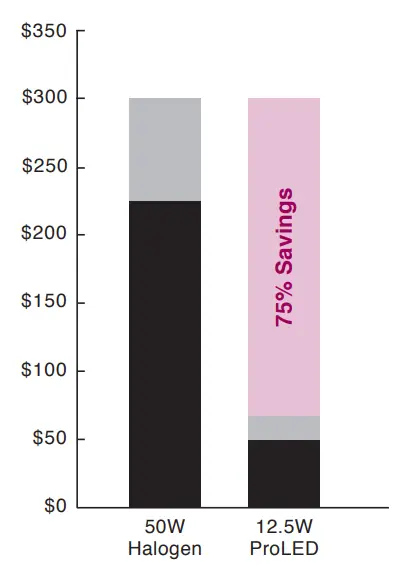

Energy Savings Comparison
Total Lifetime Costs
Maintenance Costsˇ
Energy Costs
- Maintenance costs based on 15 minutes at $40 per/hr
- Energy costs based on $0.11 kWh
Ordering Information
| Watt | Base | Product # | Product Code Volts | CRI | Lumens CBCP Useful Life* | Beam Spread | Pkg. Qty. | MOL Equivalent Wattage | |||||||||||||
| 4.5 | MP Term | 81074 | PAR36WFL4/827/IP67/LED | 10-15 | 82 | 300 | 700 | 40,000 | 32º | 1/24 | 2.40″ | 20 | |||||||||
| 6.5 | MP Term | 81075 | PAR36WFL6/827/IP67/LED | 10-15 | 82 | 450 | 1100 | 40,000 | 32º | 1/24 | 2.40″ | 35 | |||||||||
| 12.5 | MP Term | 81076 | PAR36WFL12/827/IP67/LED | 10-15 | 82 | 800 | 2000 | 40,000 | 32º | 1/24 | 2.40″ | 50 | |||||||||
NEW ITEM!
- Useful Life is defined as the point in time at which the lamp will maintain at least 70% of its initial lumens. The lamp will continue to burn past this point, but at decreased light levels.
Warranty – Commercial / Industrial: This product is warranted for 5 years from the date of purchase, based on 10 hours of use per day.
1 Energy savings based on $0.11 kWh over the life of the ProLED lamp.
2 IP67 rating classifies the lamp is protected against the effects of temporary immersion between 5.9in (15cm) and 3.28ft (1m) and is intended for indoor or outdoor use primarily to provide a degree of protection against hose directed water, the entry of water during occasional temporary submersion at a limited depth and damage from external ice formation. - IP67 Rated
- Low Maintenance
- Energy Saver
10-15V Input Voltage Range Eliminates Voltage Drop Calculation
Wide Flood Beam Angle 5-Year Limited Warranty
Applications:
Landscape Outdoor Accent
Markets:
Outdoor Residential Outdoor Commercial
where there’s light, there’s halco®
Contact Your Customer Care Specialist
For Pricing, Orders And Technical Support.
800.677.3334 www.halcolighting.co
Halco Lighting Technologies 2940 Pacific Drive | Norcross, GA 30071 | Toll Free 800.677.3334 | Phone 770.242.3612 | Fax 800.880.0822 | halcolighting.com | Atlanta | Carlstadt | Cleveland | Houston | Los Angeles | Phoeni
© 2015 Halco Lighting Technologies, LLC. All rights reserved. Halco and ProLED are registered trademarks of Halco Lighting Technologies. All sizes and specifications are subject to change. 08-13-15. Re-order #6323.
