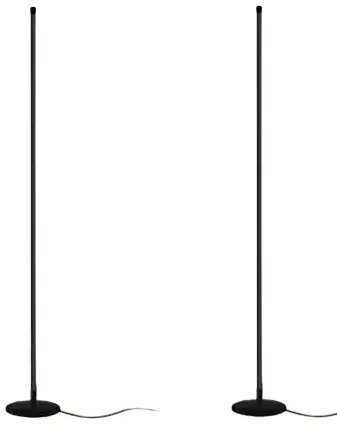

dewenwils HLFL02E LED Floor Lamp Instruction Manual
Thank you for your purchase. Please contact us if you have any questions. We will get back to you within 24 hours. Email: [email protected] Please attach your Order ID so that we can serve you better.
CAUTION
- Before assembly, place all parts out on a clean flat surface and inspect each part for defects that may have occurred during shipping.
- Inspect wire insulation for any cuts, abrasions or exposed copper that may have resulted during shipping. If there are any defects in the wire,
DO NOT continue to assemble. Please send an email to our Customer Service immediately ([email protected]). - Consult a qualified electrician if you have any electrical questions.
- Never drape clothes over the lamp.
- To reduce the likelihood of tipping over, we recommend placing the lamp behind furniture and keep children and pets away.
- To prevent children from suffocating and choking, keep them away from packing materials.
- Please keep this manual and hand it over when you transfer the product.

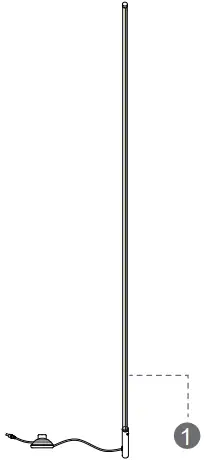

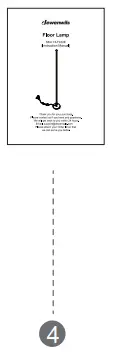

Packing List
| Part | Description | Quantity |
| 1 | Column Floor Lamp | 1 |
| 2 | Base | 1 |
| 3 | Adapter | 1 |
| 4 | Instruction Manual | 1 |

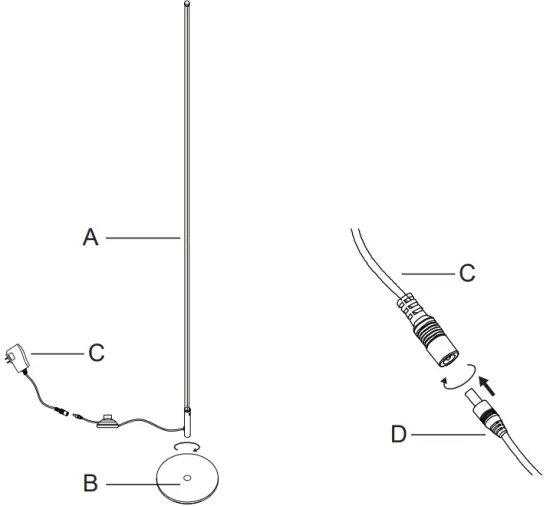

ASSEMBLY INSTRUCTIONS
- Screw the Column Floor Lamp (A) clockwise onto Base (B) until tight.
- Connect the Adapter connector (D) to the Adapter (C) and then Spin lock(3)
- Place the floor lamp where you need it and plug into the power supply.
FUNCTIONS
Foot Switch & Stepless Dimmable
Short press to turn on/off it; Long press to adjust the brightness; After the short press to turn it on, and then Long press the foot switch, the light will gradually to brighten or darken, just moves your feet away when you think the brightness is ok.
Memory function: the floor lamp can remember the mode of the brightness you settled before closing.
Specifications
- Product Height: 57.5 IN
- Base Length: 7.8 IN
- Wire Length:70 IN
- Materials: Iron, ABS
- Input Voltage: AC100V-240V 60Hz
- Max.LoadPower: 17W-3000K-650LM
One Year Limited Warranty
DEWENWILS warrants this product to be free from defects in material and workmanship for a period of one year from the date of purchase. Warranty is void if damage is caused by misuse or improper installation.
Email: [email protected].
Our dedicated customer service team will get back to you within 24 hours.
