NORTHCLIFFE Auriga P LED Downlight Instruction Manual
Installation Instruction
Please read and understand all of the directions, before starting luminaire installation. Keep this instruction for future use.

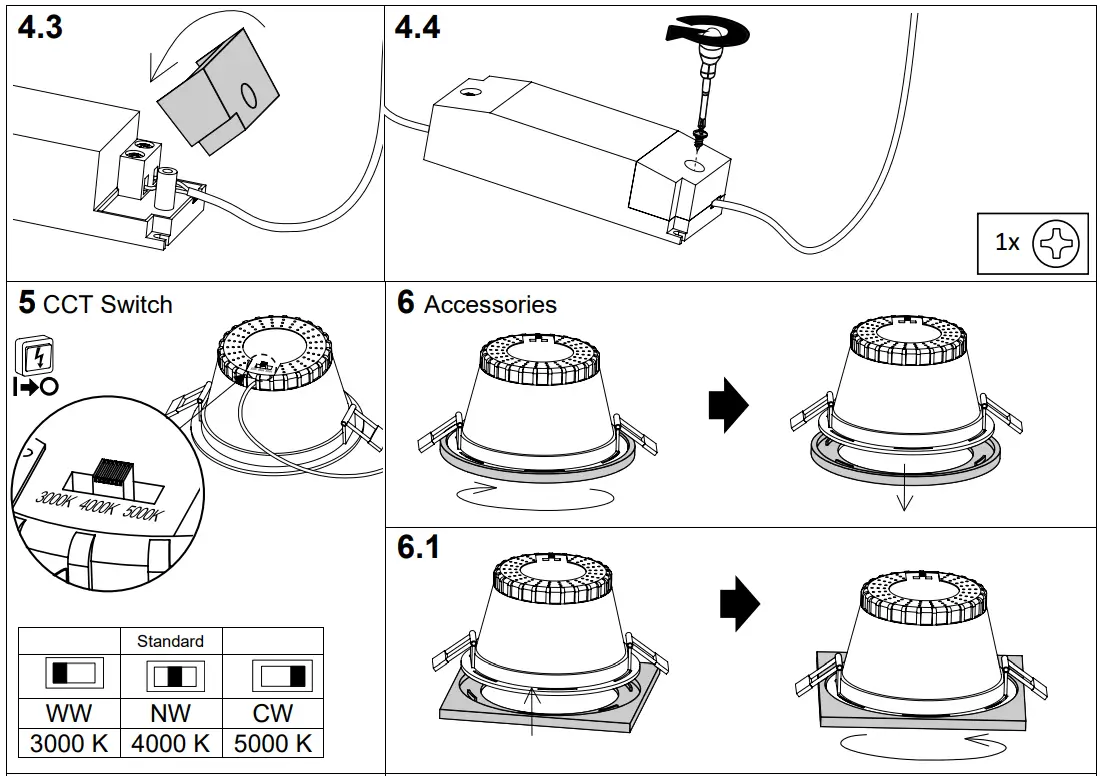

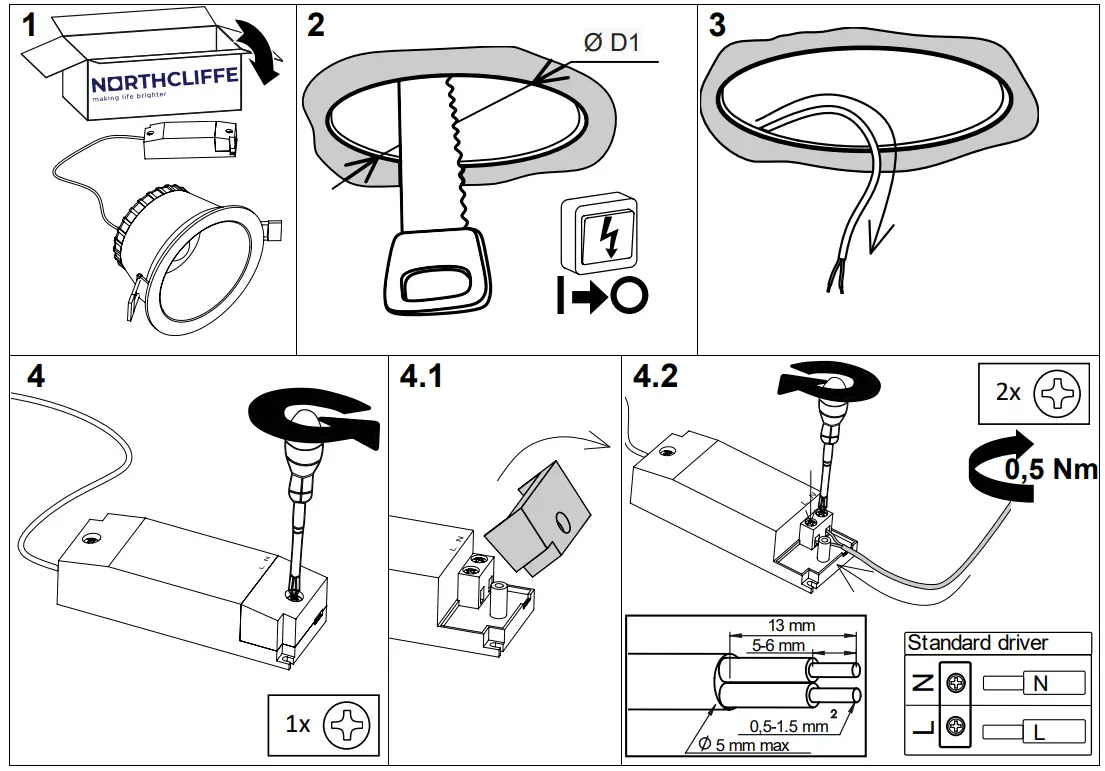

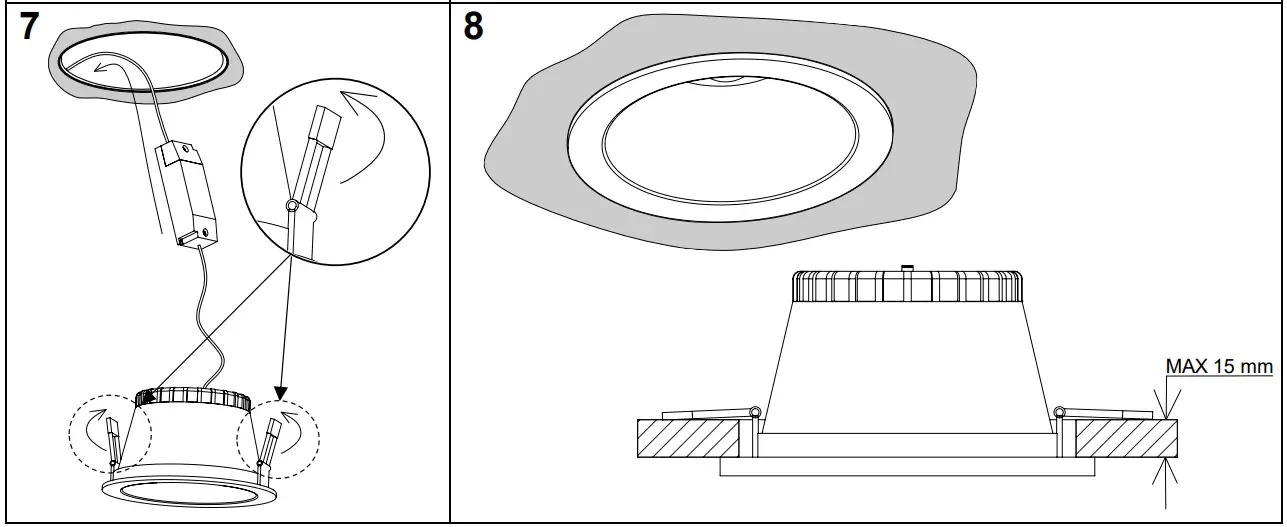

Assembly Instruction
Information is subject to change without notice. The images shown may not be exact representation of the product.

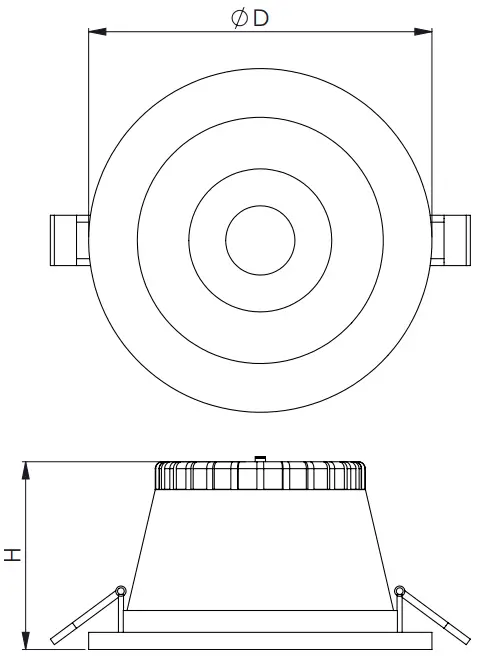

| Model | Ø D | H | ØD1 |
| G986 | 174 | 87 | 145-155 |
| G987 | 232 | 110 | 195-210 |
MPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection Centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health, deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
CAUTION!
RISK OF ELECTRIC SHOCK
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Installation can only be performed by an authorized electrician; Switch off the electricity supply before carrying out any work; Luminaire must be installed in compliance with all safety requirements; Attention! The exact model of the fixture marked on a label inside it.
Information is subject to change without notice.
The images shown may not be exact representation of the product.
MI _250_AurigaPLED_2206-649 Email : www.northcliffe.org
