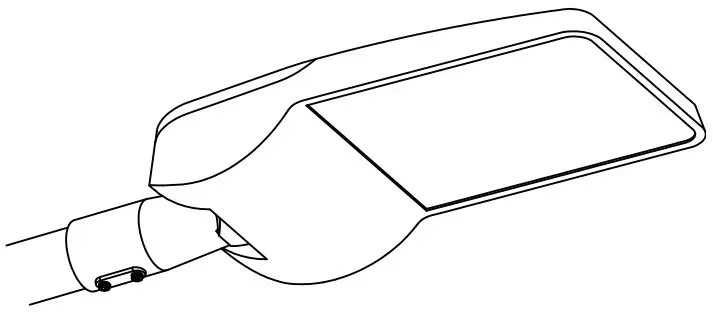

AUVA LED Pole-Mounted LED Street Luminaire
Instruction Manual

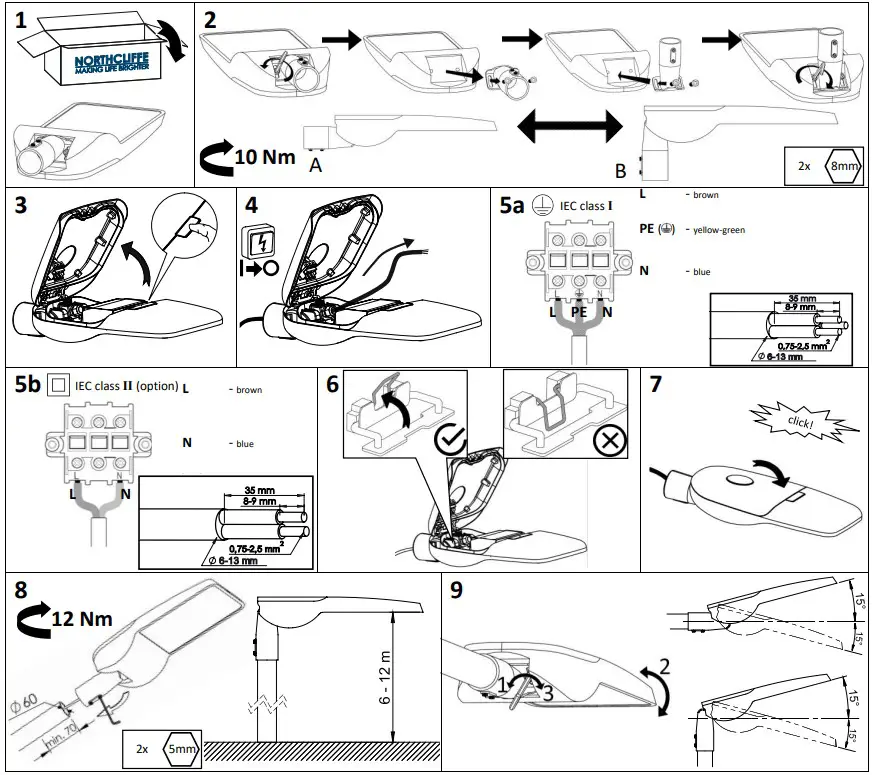

installation instruction
Please read and understand all of the directions, before starting luminaire installation. Keep this instruction for future use.

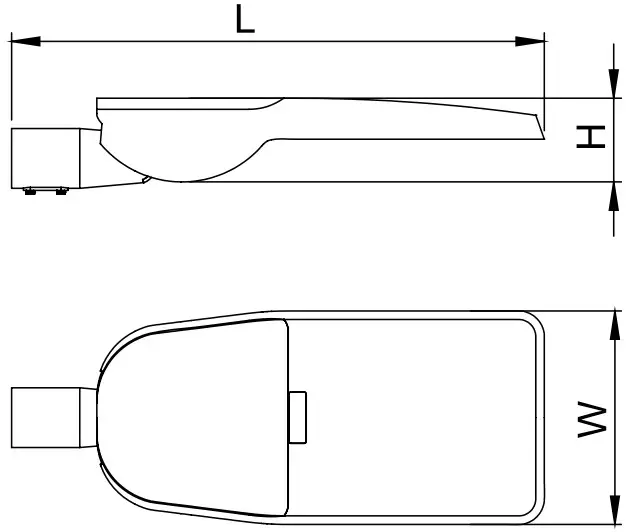

| Model | L, mm | W, mm | H, mm |
| J0001 —J012 | 525 | 205 | 102 |
| J013 —J018 | 525 | 250 | 102 |
| J019 —J029 | 625 | 288 | 102 |
| J030 —J035 | 776 | 320 | 102 |
 CAUTION! RISK OF ELECTRIC SHOCK | LED version: The light source contained in thisluminaire shall only be replaced bythe manufacturer or h7is serviceagent or a similar qualified person. | Installation can only be performed by an authorized electrician; Switch off the electricity supply before carrying out any work; Luminaire must be installed in compliance with all safety requirements; Attention! The exact model of the fixture marked on a label inside it. |
IMPORTANT INFORMATION FOR CORRECT
DISPOSAL OF THE PRODUCT IN ACCORDANCE
WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste.It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health, deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
NORTHCLIFFE LIGHTING
MI_270_AuvaLED_2203-567
Information is subject to change without notice
