DECOR LED

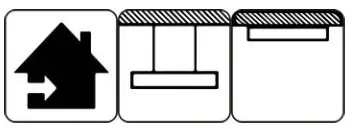

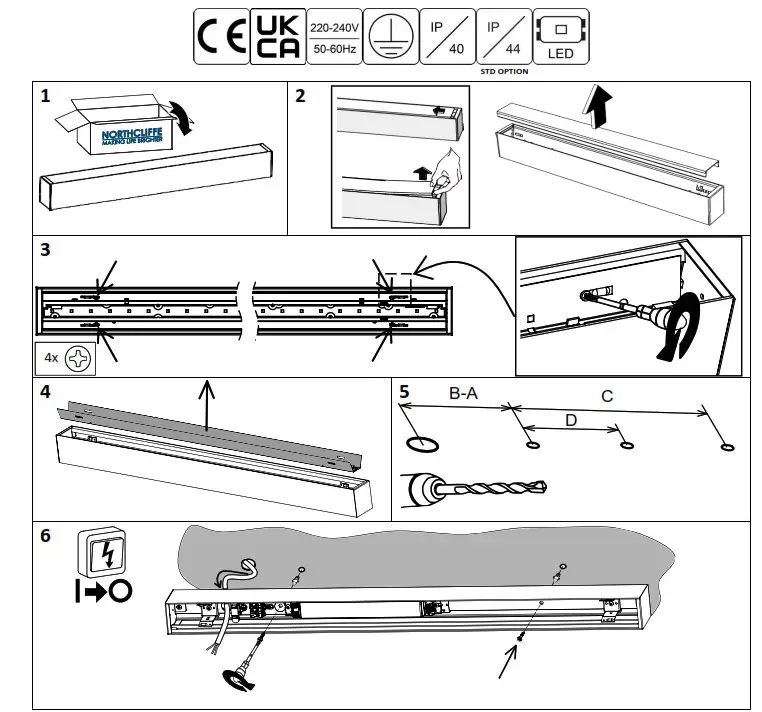

installation instruction
Please read and understand all of the directions, before starting luminaire installation. Keep this instruction for future use.

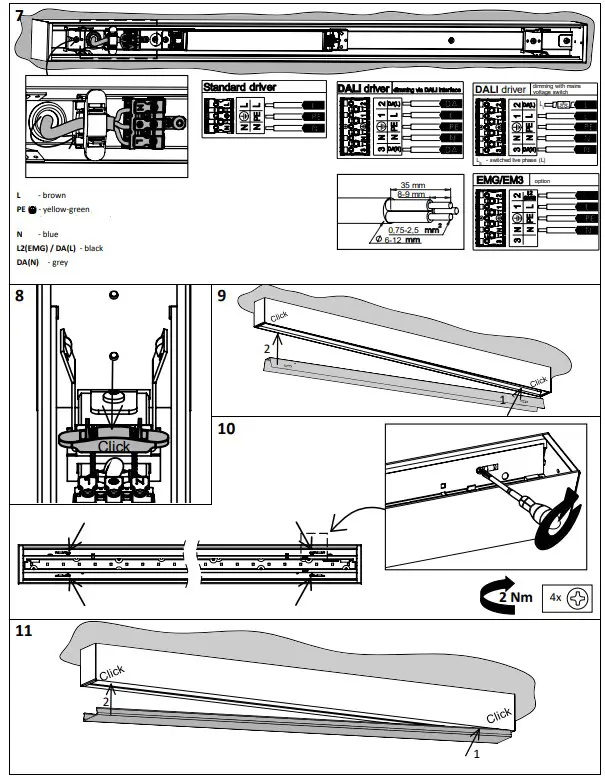

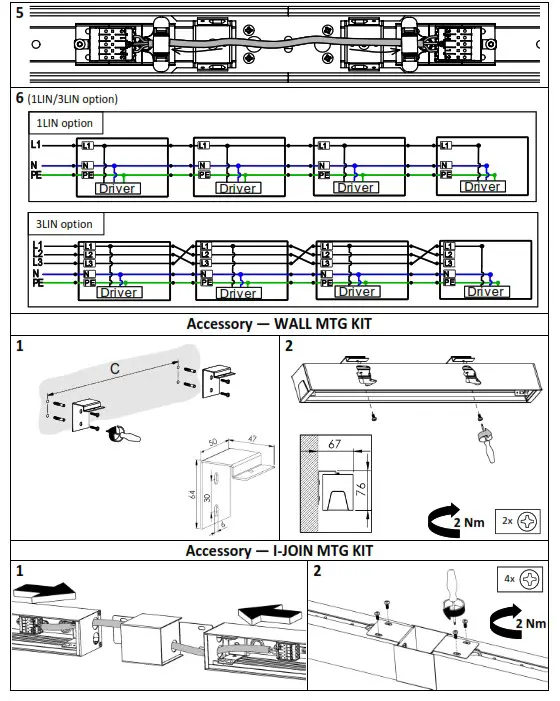

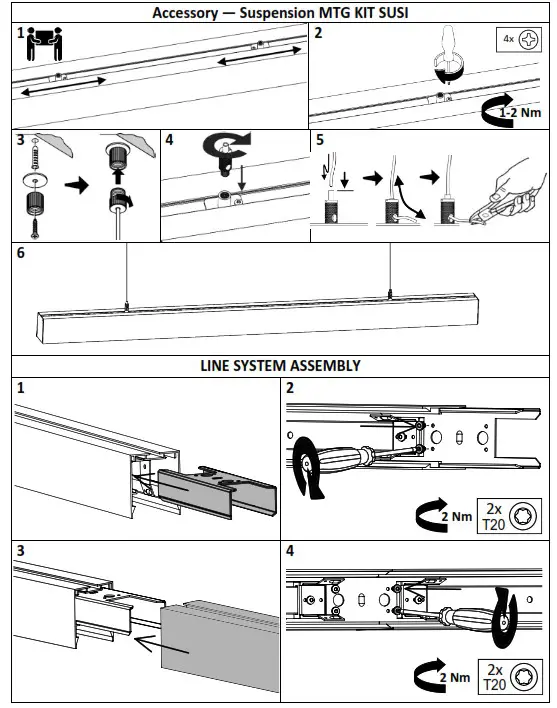

Accessory — Suspension MTG KIT SUSI

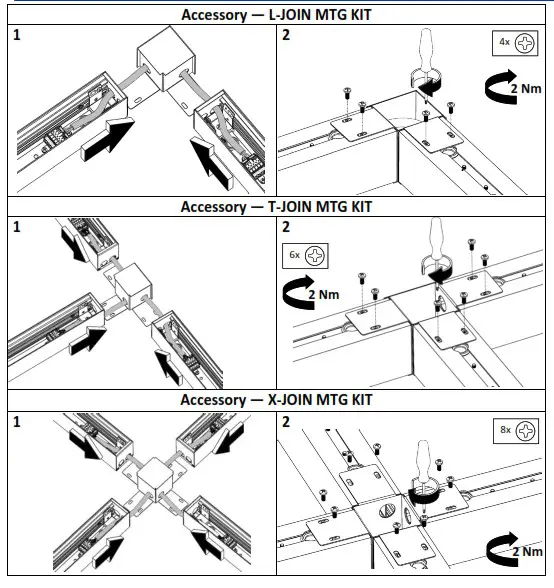

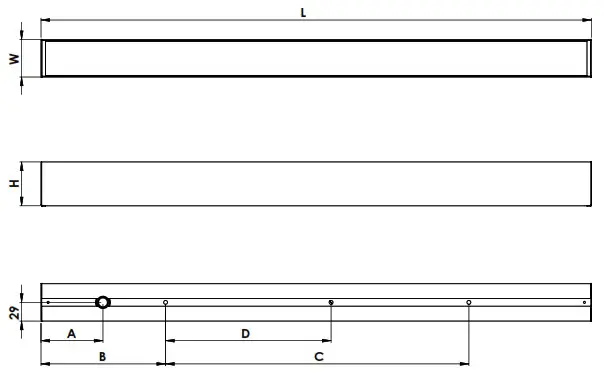

Dimensions – standard
| Standalone installation | |||||||
| Model | L, mm | H,mm | W, mm | A, mm | B, mm | C, mm | D, mm |
| G210-212;1654 | 573 | 68 | 58 | 93 | 41 | 490 | |
| G213-215;1655 | 853 | 192 | 470 | ||||
| G216-218;1656 | 1133 | 750 | |||||
| G219-221;1657 | 1413 | 1030 | |||||
| G222-224;1658 | 1693 | 1310 | – | ||||
| G225-227 | 1973 | 1590 | 795 | ||||
| J659 | 2113 | 1730 | 935 | ||||
| G228-230;1660 | 2253 | 1870 | 935 | ||||
| G231-233;1661 | 2533 | 2150 | 1075 | ||||
| G234-236 | 2953 | 2570 | 1285 | ||||

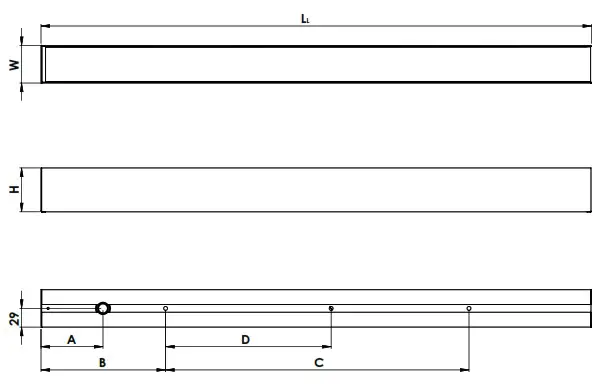

Dimensions – L OPTION
| For in-line connection: end/first luminaire | |||||||
| Model | L, mm | H,mm | W, mm | A, mm | B, mm | C, mm | D, mm |
| G210-212;1654 | 567 | 68 | 58 | 95 | 192 | ||
| G213-215;1655 | 847 | 470 | |||||
| G216-218;1656 | 1127 | 750 | |||||
| G219-221;1657 | 1407 | 1030 | |||||
| G222-224;1658 | 1687 | 1310 | – | ||||
| G225-227 | 1967 | 1590 | 795 | ||||
| 1659 | 2107 | 1730 | 935 | ||||
| G228-230;1660 | 2247 | 1870 | 935 | ||||
| G231-233;1661 | 2527 | 2150 | 1075 | ||||
| G234-236 | 2947 | 2570 | 1285 | ||||

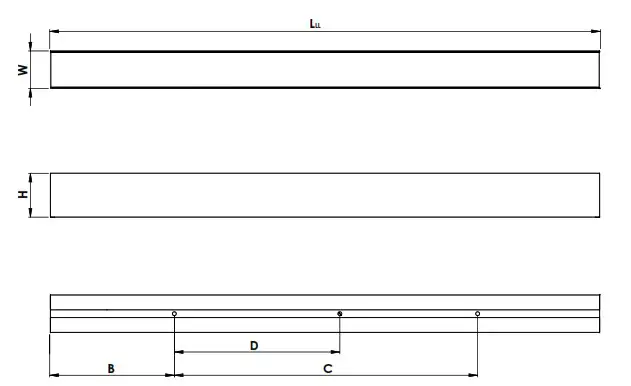

Dimensions – LL OPTION
| For in-line connection: intermediate luminaire | ||||||
| Model | L, mm | H,mm | W, mm | B, mm | C, mm | D, mm |
| G210-212;J654 | 562 | 68 | 58 | 192 | – | |
| G213-215; J655 | 842 | 470 | – | |||
| G216-218;J656 | 1122 | 750 | – | |||
| G219-221;J657 | 1402 | 1030 | – | |||
| G222-224;J658 | 1682 | 1310 | – | |||
| G225-227 | 1962 | 1590 | 795 | |||
| J659 | 2102 | 1730 | 935 | |||
| G228-230; J660 | 2242 | 1870 | 935 | |||
| G231-233;J661 | 2522 | 2150 | 1075 | |||
| G234-236 | 2942 | 2570 | 1285 | |||

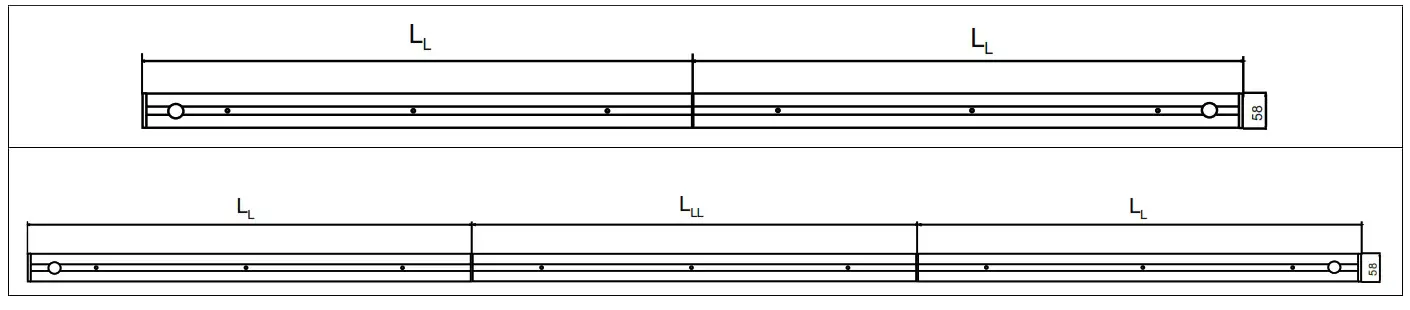

Line system calculation examples
Maximum number of connected luminaires

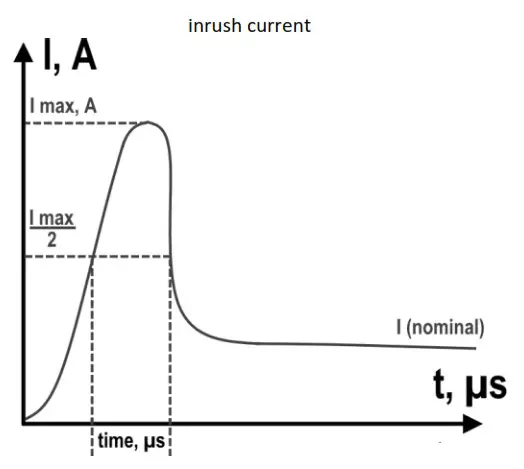

| maximum number of luminaires on MCB | inrush current | |||||
| MCB/ luminaire | B-10A | B-16A | C-16A | C-20A | ‘max, A | time, is |
| G210 G213 G214 G216 G217 | 18 | 28 | 46 | 58 | 14. | 304 |
| G211 G220 G223 G226 G229 | 14 | 23 | 38 | 46 | 31 | 175 |
| G212 G215 G218 G219 G222 G225 G228 | 16 | 27 | 45 | 58 | 25 | 250 |
| G221 G224 G227 G230 G231 G234 | 13 | 21 | 35 | 45 | 35 | 170 |
| G232 G235 | 9 | 16 | 27 | 33 | 30 | 250 |
| G233 G236 | 6 | 11 | 18 | 23 | 50 | 200 |
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health, deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
 | The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. | Installation can only be performed by an authorized electrician; Switch off the electricity supply before carrying out any work; Luminaire must be installed in compliance with all safety requirements; Attention! The exact model of the fixture marked on a label inside it. |
NORTHCLIFFE LIGHTING
DECOR LED
Information is subject to change without notice
MI_215_DecorLED_G_2214-598
www.northcliffe.org
Northcliffe - making life brighter
