PN14100054 VP COB Suspended LED Light
Instructions

PN14100054 VP COB Suspended LED Light

Thank you for choosing this product from PANLUX s.r.o.
Before using or installing the product, please read the instructions and follow the safety rules. Installation should be carried out by a qualified professional or company.

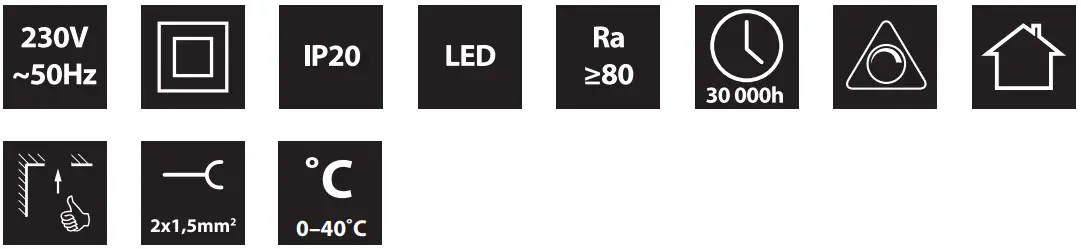

Technical data
Material: Die-cast aluminium
Notes
Before using, check the product and ensure that it is not damaged in any way; if it is, do not use it. Before any installation ensure that the main electrical supply is disconnected. If the product is damaged, do not attempt to repair or disassemble it. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Failure to follow these instructions can cause damage to health and property.
INDOOR
The warranty is void if the product is damaged or installed incorrectly.
Extended guarantee after reistration at zaruka.panlux.cz

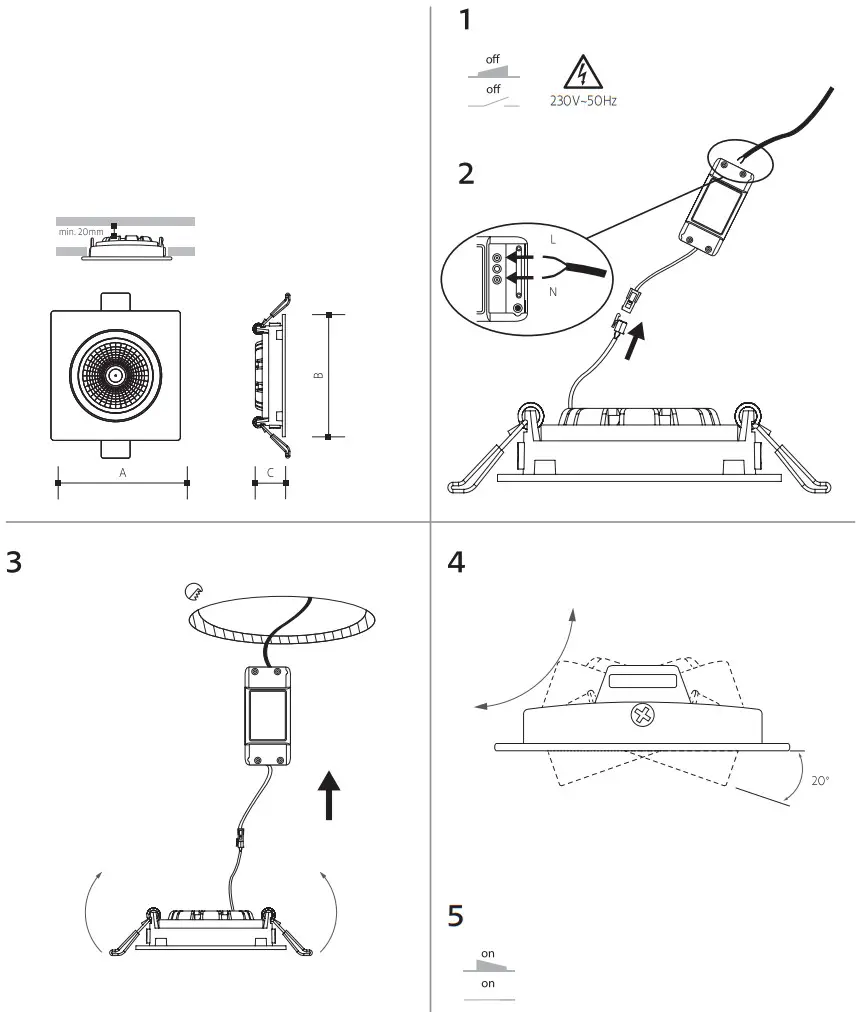

Installation

	Model	W	lm	K	mA
⬜	PN14100054	6	420	3000	350	85x85x21	85g	75
⬜	PN14300049	6	480	4000	350	85x85x21	85g	75
⬜	PN14100055	18	1260	3000	700	115x115x33	220g	105
⬜	PN14300050	18	1440	4000	700	115x115x33	220g	105
⬛	PN14100052	6	420	3000	350	85x85x21	85g	75
⬛	PN14300056	6	480	4000	350	85x85x21	85g	75
⬛	PN14100053	18	1260	3000	700	115x115x33	220g	105
⬛	PN14300048	18	1440	4000	700	115x115x33	220g	105

All right reserved.
Technical data can be changed without previous notice.
shop.panlux.cz
Please, download the latest updated version of the manual.
UM_VP_COM_220524
