RAB HIDFA-12S-E26-850-BYP Post Top Series LED Light

IMPORTANT

READ CAREFULLY BEFORE INSTALLING LED HID BULBS. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB LED HID Bulbs must be wired in accordance with the National Electrical Code and all applicable codes.Proper grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.

WARNINGS:

• Main applications include for use in post tops, street lights, flood lights and other suitable light fixtures.
• Operating temperature:-30°C to 60°C (-22°F to 140°F).
• These LED Lamps require all ballasts, capacitors, and ignitors to be bypassed or removed. Do not operate lamps on existing ballasts.
• Do not use with standard dimmers.
• This device is not intended for use with emergency exits.
• For use in enclosed fixtures.
• Before installation make certain the AC power to the fixture is off.
• Risk of fire or electric shock. Luminaire wiring and electrical parts may be damaged when drilling for installation of LED retrofit kit. Check for enclosed wiring and components.
• Risk of fire or electric shock. LED Retrofit lamp installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
• Installers should not disconnect existing wires from lampholderterminals to make new connections at lampholder terminals. Instead installers should cut existing lamp holder leads away from the lampholder and make new electrical connections to lamp holder lead wires by employing applicable connectors.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or  othersharp objects.
• Risk of fire or electric shock. Install this kit only in luminaires that have the construction features and dimensions shown in the photographs or drawings and where the input rating of the retrofit kit does not exceed the input rating of the luminaire.
• Use only with a portable luminaire that is provided with a shade.
• Added weight of the device may cause instability of a free-standing portable luminaire.
• THIS RETROFIT KIT IS ACCEPTED AS A COMPONENT OF A LUMINAIREWHERETHE SUITABILITY OF THE COMBINATION SHALL BE DETERMINED BY AUTHORITIES HAVING JURISDICTION.
• Please examine all parts that are not intended to be replaced by the retrofit kit for damage and replace any damaged parts prior to installation of the retrofit kit.
• RISK OF FIRE OR ELECTRIC SHOCK. INSTALLATION OF THIS RETROFIT KIT REQUIRES A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE LUMINAIRE’S ELECTRICAL SYSTEM AND THE HAZARD INVOLVED. IF NOT QUALIFIED, DO NOT ATTEMPT INSTALLATION. CONTACT A QUALIFIED ELECTRICIAN.
  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures:
  -Reorient or relocate the receiving antenna.
  -Increase the separation between the equipment and receiver.
  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  -Consult the dealer or an experienced radio/TV technician for help.

LAMP INSTALLATION

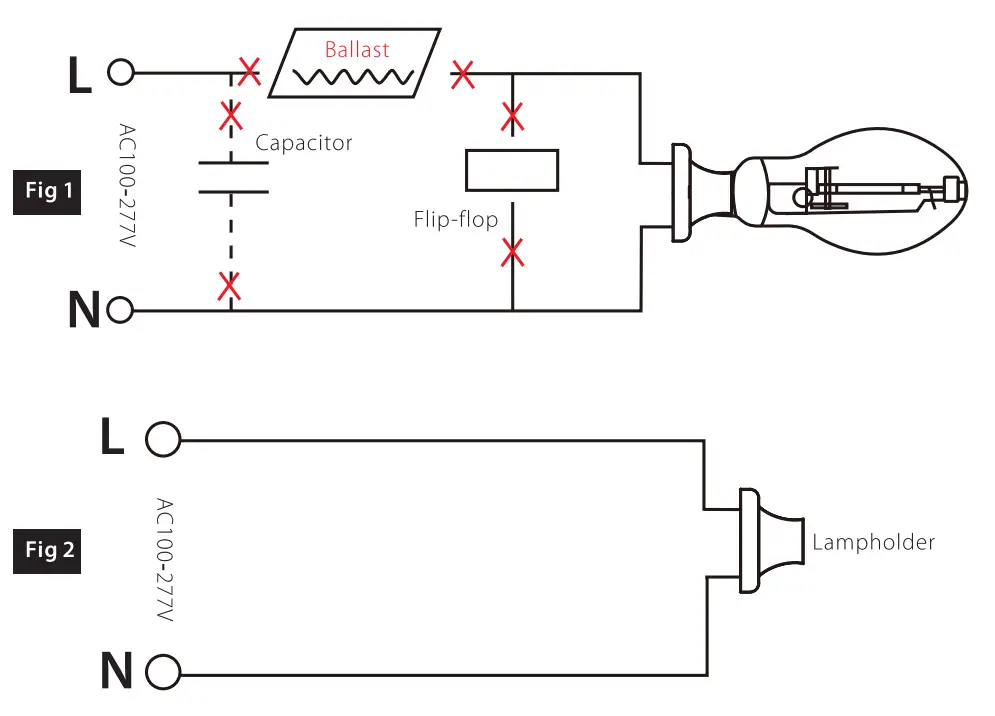

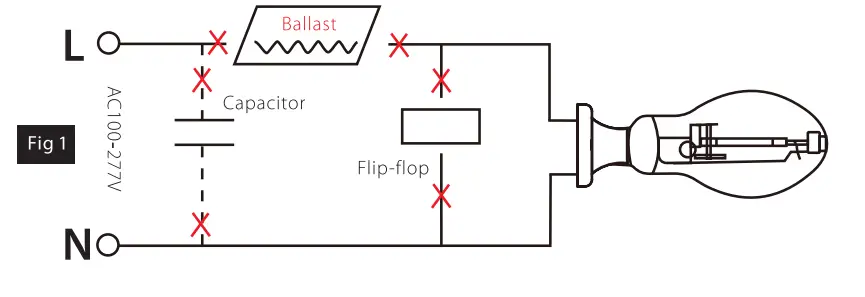

1. Remove old ballast or disconnect from existing  lampholder. Remove and dispose of ballast incorrect manner. Shown as Figure I. (North America 100-277VAC)

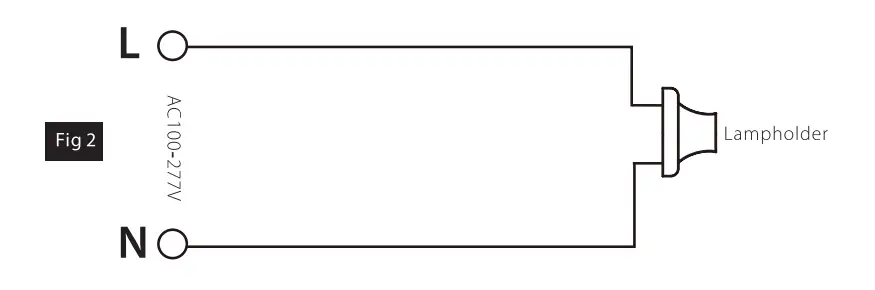

   Reconnect directly to the existing lampholder. Shown as Figure 2 (North America 100-277VAC)

2. Select power and CCT of new LED replacement lamp before installation

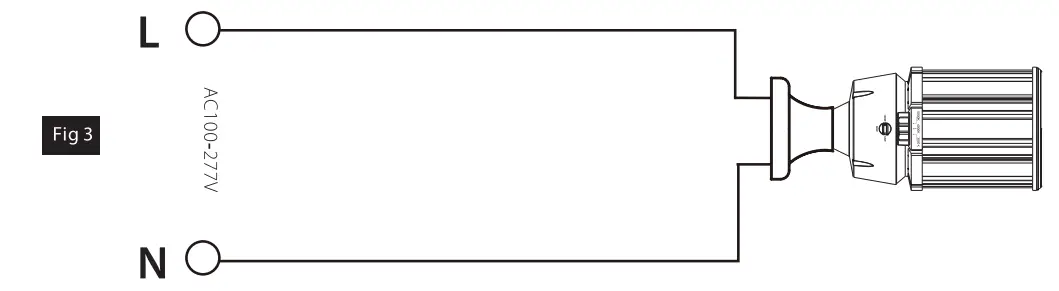

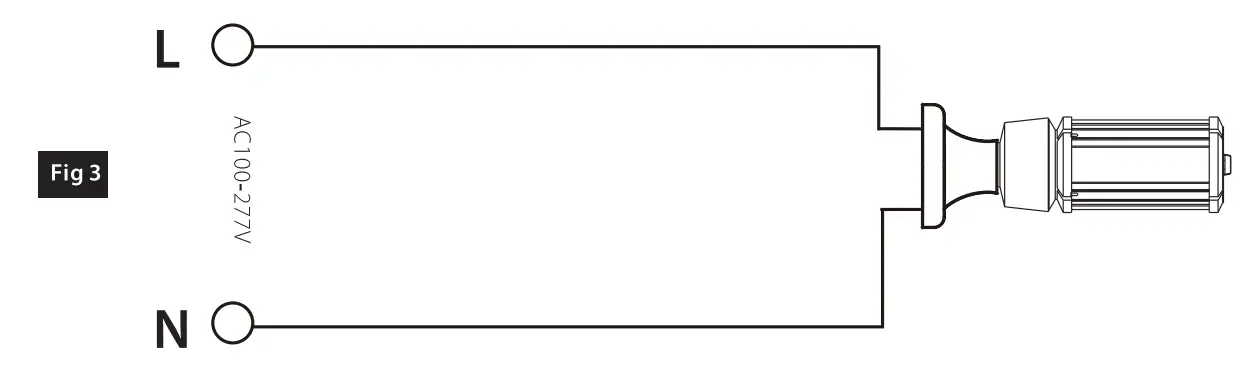

3. Install new LED replacement lamp. Shown as Figure 3. Please make sure the old fitting is correctly earth. Attach retrofit label to luminaire. (North America 100-277VAC)

   Securely fasten the earth fiy lead cable to the main body structure. If the cable are damaged in any way please replace.
   (Do not use existing burnt out cables) The cable if need replacement must be 1.0mm in size and insulated from heat.
   Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation, operation or maintenance.

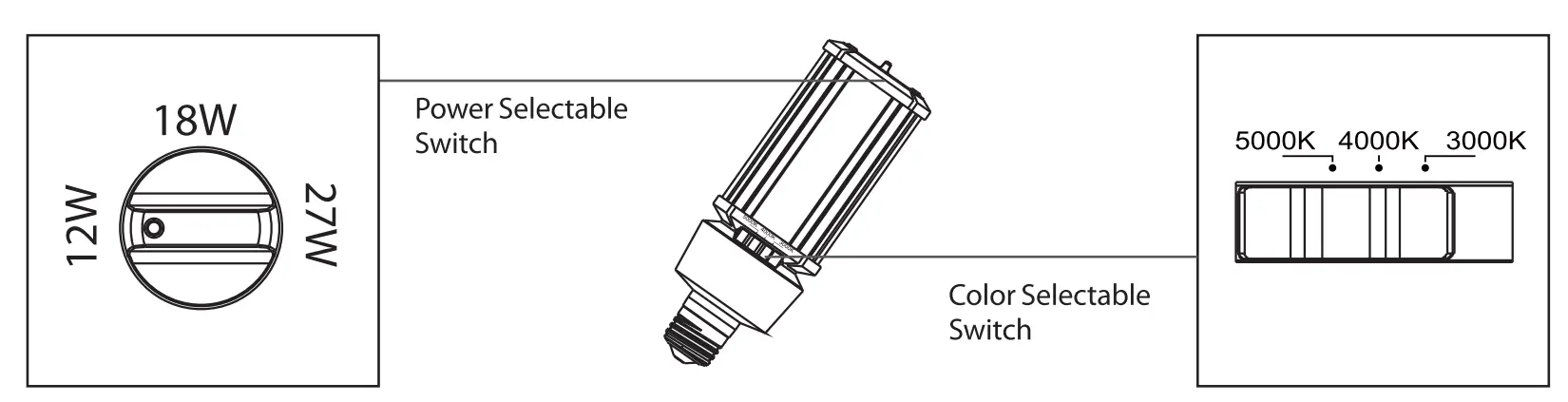

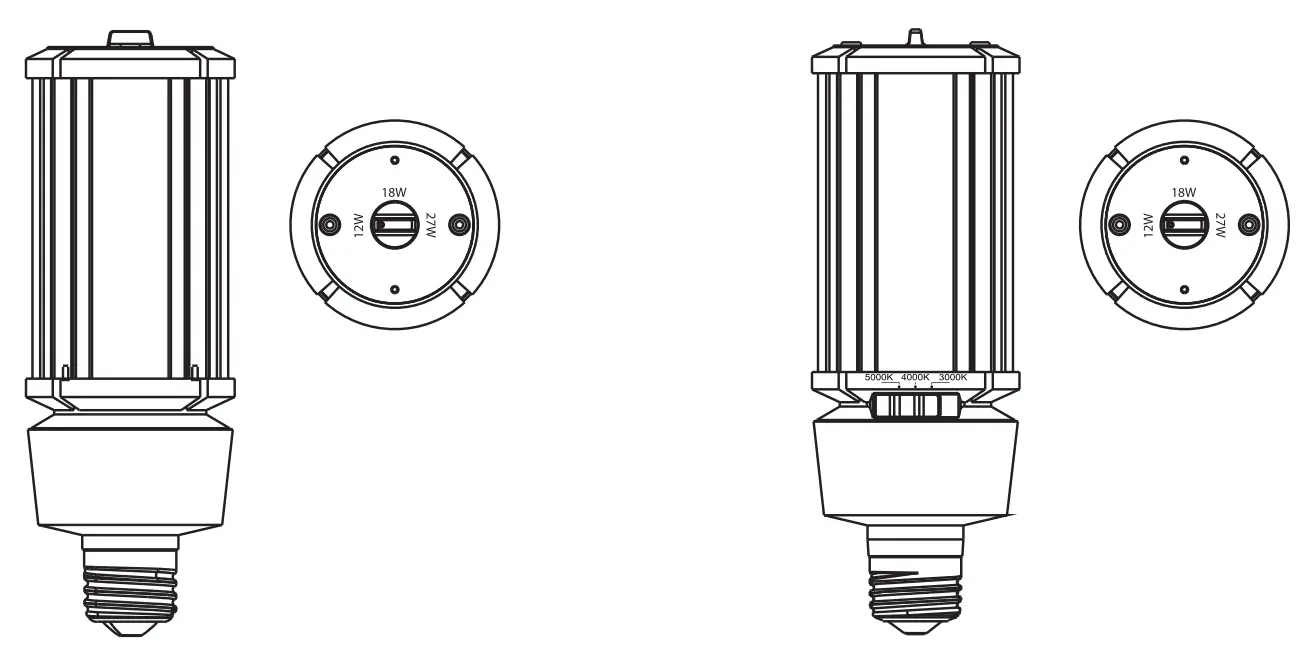

SELECTABILITY

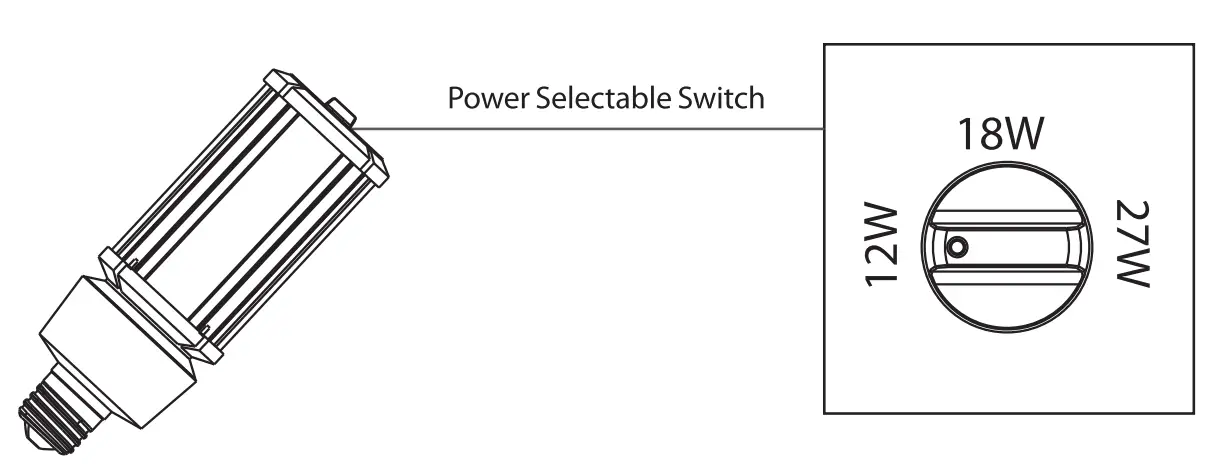

PowerSelectable

HIDFA-XXS-E26-8CCT-BYP/3SP
HIDFA-XXXS-EX39-8CCT-BYP/3SP

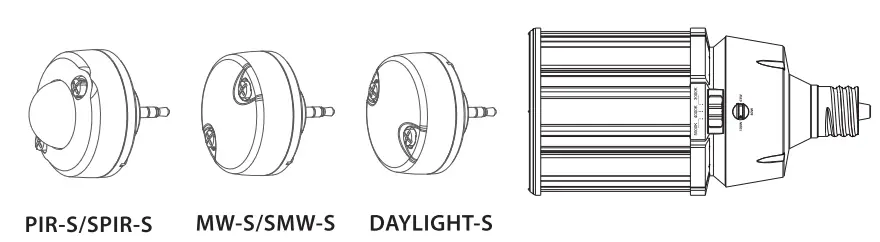

Our sensor product numbers include MW-S/SMW-5, PIR-5/SPIR-S and DAYLIGHT-5 are optional accessories for select Post Top lamps. The lamps will perform as normal if no sensor is inserted. Please note that RAB lamps can’t operate with other brand sensors.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING LED HID BULBS. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE, RAB LED HID Bulbs must be wired in accordance with the National Electrical Code and all applicable codes.Proper grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.

WARNINGS

• Main applications include for use in post top, street lights and other suitable light fixtures.
• Operating temperature:-30°C to 60°C (-22°F to 140°F).
• These LED Lamps require all ballasts, capacitors, and ignitors to be bypassed or removed.Do not operate lamps on existing ballasts.
• Dimmable with optional control modules.
• Do not use with standard dimmers. Only use the control provided with or specified by these instructions to control this lamp. This lamp will not operate properly when connected to a standard( incandescent) dimmer or dimming control.
• This device is not intended for use with emergency exits.
• Can be used in exclosed fixtures. Do not install 120W in horizontal applications.
• Before installation make certain the AC power to the fixture is off.
• Risk of fire or electric shock. Luminaire wiring and electrical parts may be damaged when drilling for installation of LED retrofit kit. Check for enclosed wiring and components.
• Risk of fire or electric shock. LED Retrofit lamp installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
• Installers should not disconnect existing wires from lampholderterminals to make new connections at lampholder terminals. Instead installers should cut existing lampholder leads away from the lampholder and make new electrical connections to lampholder lead wires by employing applicable connectors.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
• Risk of fire or electric shock. Install this kit only in luminaires that have the construction features and dimensions shown in the photographs or drawings and where the input rating of the retrofit kit does not exceed theinput rating of the luminaire.
• Use only with a portable luminaire that is provided with a shade.
• Added weight of the device may cause instability of a free-standing portable luminaire.
• Text or diagram showing how the supply connections are made to the lampholders.
• Risk of fire or electric shock. Install this kit only in luminaires that have the construction features and dimensions shown in the photographs and/or drawings and where the input rating of the retrofit kit does not exceed the input rating of the luminaire.
• RISK OF FIRE OR ELECTRIC SHOCK. LUMINAIRES WIRING, POWER SUPPLY, OR OTHER ELECTRICAL PARTS MAY BE DAMAGED WHEN DRILLING FOR INSTALLATION OF RETROFIT KIT HARDWARE. INSPECTWIRING AND COMPONENTS FOR DAMAGE.
• THE RETROFIT KIT IS ACCEPTED AS A COMPONENT OF A LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL BE DETERMINED BY AUTHORITIES HAVING JURISDICTION. PRODUCT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH THE APPLICABLE AND APPROPRIATE ELECTRICAL CODES. THE INSTALLATION GUIDE DOES NOT SUPERSEDE LOCAL OR NATIONAL REGULATIONS FOR ELECTRICAL INSTALLATIONS.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation, This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.

1. Turn off the power before installation. Remove old ballast or disconnect frorn existing larnpholder. Remove and dispose of ballast in correct manner. Shown as Figure 1. (North America 100-277VAC)

2. Reconnect directly to the existing larnpholder. Shown as Figure 2. (North America 100-277VAC)

3. Select power and CCT of new LED replacement larnp before installation.
4. Install new LED replacement larnp. Shown as Figure 3. Please rnake sure the old fitting is correctly earth. Attach retrofit label to luminaire.(North America 100-277VAC)

   Securely fasten the earth fiy lead cable to the main body structure. If the cable are damaged in anyway please replace.
   (Do not use existing burnt out cables) The cable if need replacement must be 1.0mm in size and insulated from heat.

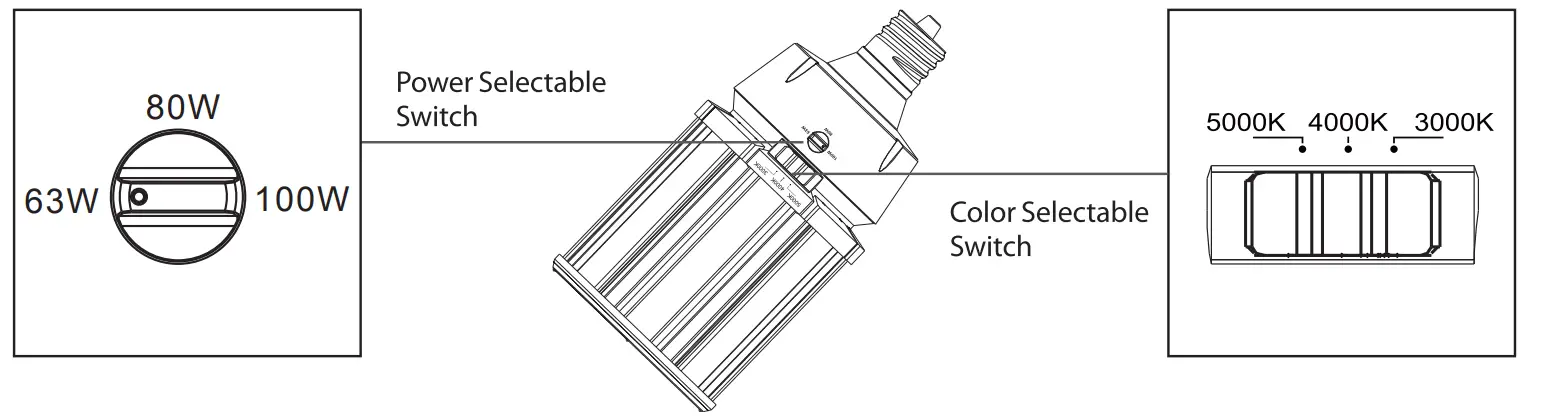

   Model NumberPower Selectable HIDFA-63S-EX39-BCCT-BYP/ 3SP45W HIDFA-805-EX39-8CCT-8YP/ 3SP54W HIDFA-1OOS-EX39-BCCT-BYP/ 3SP63W HIDFA-120S-EX39-8CCT-BYP/ 3SPBOW

   Model Number	Power Selectable	CCT Selectable
   HIDFA-36S-E26-BCCT-BYP/3SP HIDFA-36S-EX39-BCCT-BYP/ 3SP	lBW	3OOOK
   	27W	4OOOK
   	36W	SOOOK
   HIDFA–455-E2 6-8CCT-BYP/3SP HIDFA-45S–EX39-BCCT-BYP/ 3SP	27W	3OOOK
   	36W	4OOOK
   	45W	SOOOK
   HIDFA-54S-E26-BCCT-8YP/3SP HIDFA–54S–EX39–BCCT–BYP/l SP	36W	3000K
   	45W	4000K
   	54W	SOOOK
   	CCT Selectable
   	3OOOK
   	54W	4OOOK
   	63W	SOOOK
   	3OOOK
   	63W	4000K
   	BOW	SOOOK
   	3000K
   	BOW	4000K
   	100W	SOOOK
   	3000K
   	100W	4000K
   	120W	SOOOK

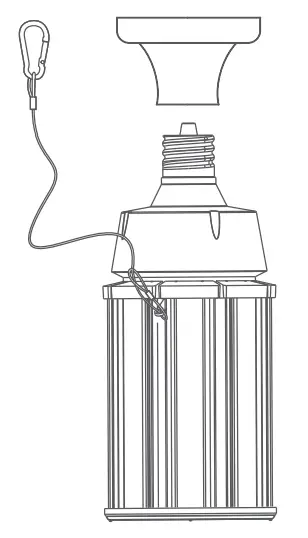

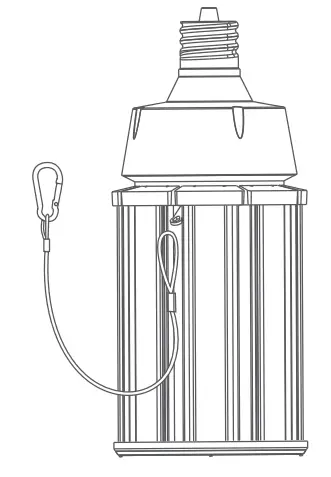

SAFETY CABLE INSTALLATION INSTRUCTION

You must use the safety cable to tight the lamps equal to or over SOW in case of falling down due to old socket.

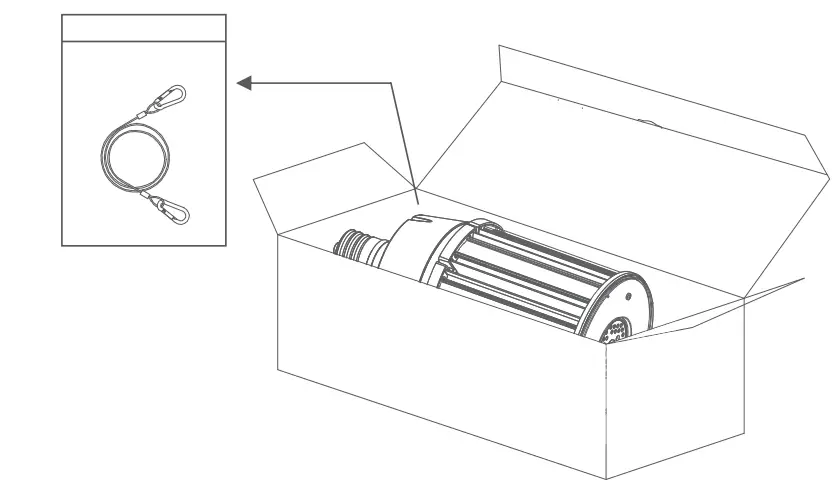

1. Take out the safety cable we put in box

2. Fix the safety cable one end through the hole

3. Fasten the other end on the luminaire
