4713431 7.2W 25000h BX LED
Light Instructions
7.2W 25000h BX LED Light
7.2W 25000h BX
Lamp range for basic use – pure white
Airam’s PRO LED 3000 K series covers all light source needs for basic use. The lamps are in energy class A+ and have a long service life. This series includes the most common bulb types. The lamps are packed in cardboard boxes that clearly indicate the key technical specifications. Special characteristics of the lamps in this series include an extremely long operating life (25,000 h) and a high number of switch-on cycles (500,000). The colour temperature is pure white (3000 K).

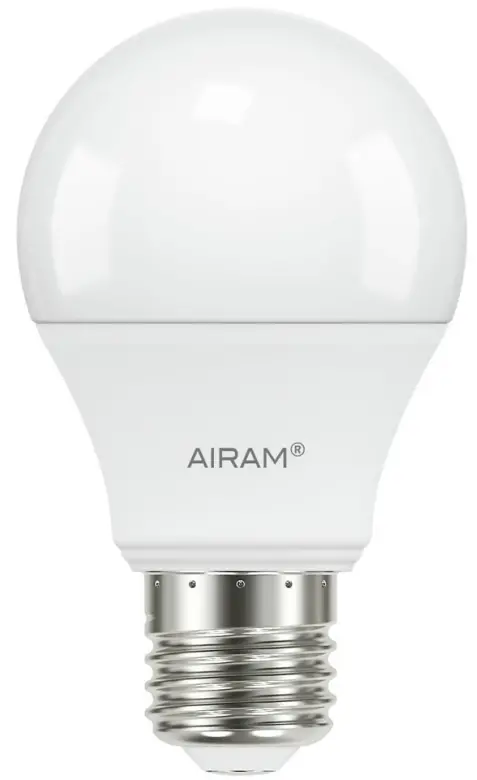

Opal classic LED lamp 7.2W 3000K E27 806lm 25000h 60x102mm, cardboard packing. Supply frequency ~50/60Hz.
7.2W 25000h BX
| PRODUCT CODE | CODE | KG | PRODUCT FAMILY |
| 4713431 | A7PRAQ | 0.04 | Pro |
7.2W 25000h BX
EC001959
Mounting
Degree of protection (IP)…………………. Other
Structure
| Colour housing | White |
| Energy efficiency class | E |
| Colour | White |
Dimming and control
| With remote control | No |
| Dimmable | No |
| Remote operation possible | No |
Photometric data
| Colour temperature (min) (K) | 3000 |
| Luminous flux (min) (lm) | 806 |
| Colour rendering index CRI | 80-89 |
| Colour of light acc. EN 12464-1 | Warm <3300 K |
| Colour temperature (max) (K) | 3000 |
| Luminous flux (max) (lm) | 806 |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Photobiological safety according to EN 62471 | RG0 |
| Beam angle (°) | 220 |
Lifetime and capacity
Measurements
| Length (mm) | 102 |
| Diameter (mm) | 60 |
Electrotechnical data
| Voltage type | AC |
| Nominal voltage (min) (V) | 220 |
| Nominal current (min) (mA) | 79.2 |
| Nominal voltage (max) (V) | 240 |
| Nominal current (max) (mA) | 44 |
| Power factor | 0.5 |
| Energy Efficiency Index (EEI) | 0.112 |
